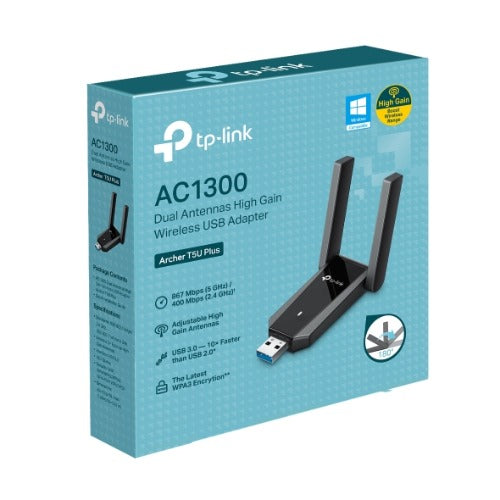

TP-Link Archer T5U Plus AC1300 Dual Antennas High Gain Wireless USB Adapter

TP-Link Archer T5U Plus AC1300 Dual Antennas High Gain Wireless USB Adapter

HARDWARE FEATURES

Interface USB 3.0

LED Status

Dimensions ( W x D x H ) 43 × 13.5 × 78.1 mm (1.69 × 0.53 × 3.07 in)

Antenna 2× External High Gain Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n 2.4 GHz

IEEE 802.11a/n/ac 5 GHz

Signal Rate 5 GHz:

11ac: Up to 867 Mbps(dynamic)

11n: Up to 400 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz:

11n: Up to 400 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity 5 GHz:

11ac VHT80: -63 dBm

11ac VHT20: -69 dBm

11n HT40: -71dBm

11n HT20: -74dBm

11a 54Mbps: -76dBm

2.4 GHz:

11n HT40: -68dBm

11n HT20: -70dBm

11g 54Mbps: -74dBm

11b 11Mbps: -86dBm

Wireless Modes Infrastructure mode

Transmission Power 5 GHz: 20dBm(FCC) / 18dBm(CE) (EIRP)

2.4 GHz : 19dBm(FCC) / 17dBm(CE) (EIRP)

SOFTWARE FEATURES

Security WEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK

OTHERS

Certification FCC, CE, RoHS

Package Content AC1300 Dual Antennas High Gain Wireless USB Adapter Archer T5U Plus

Quick Installation Guide

System Requirements Supported operating systems include Windows 7/8/8.1/10/11

Environment Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Warranty: 36 months

Part No.: Archer T5U Plus
