Simplecom SE525 NVMe / SATA M.2 SSD USB-C Enclosure with RGB Light USB 3.2 Gen 2 10Gbps

Features

Dual Protocol support for both NVMe and SATA M.2 SSD

Convert M Key or B+M Key M.2 SSD to a USB portable drive

USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps

Aluminium case for durability and excellent heat dissipation

Dynamic RGB light effect for power and activity status

Tool-free design, quick and easy installation of SSDs without any tools

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

Plug and play, no driver required

Specifications

Model: SE525

Interface: USB-C (USB 3.2 Gen 2)

Housing Material: Aluminium, ABS Plastic

Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps

Compatible M.2 Protocol: NVMe M.2, SATA M.2

Compatible M.2 Size: 2242, 2260, 2280

Dimension: 98x44x13mm (LxWxH)

Operating System Support: Windows 7 and above, MacOS 10.8 and above

Package Contents

1x SE525 M.2 SSD Enclosure

1x USB C to USB C Cable

1x USB C to USB A Cable

1x Thermal Pad

Important Note

SE525 supports both NVMe and SATA protocol based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA protocol is 6Gbps.

RGB light effect is fixed and can't be programmed, breathing effect when powered, and switch to flowing effect during data transfer.

Warranty: 12 months

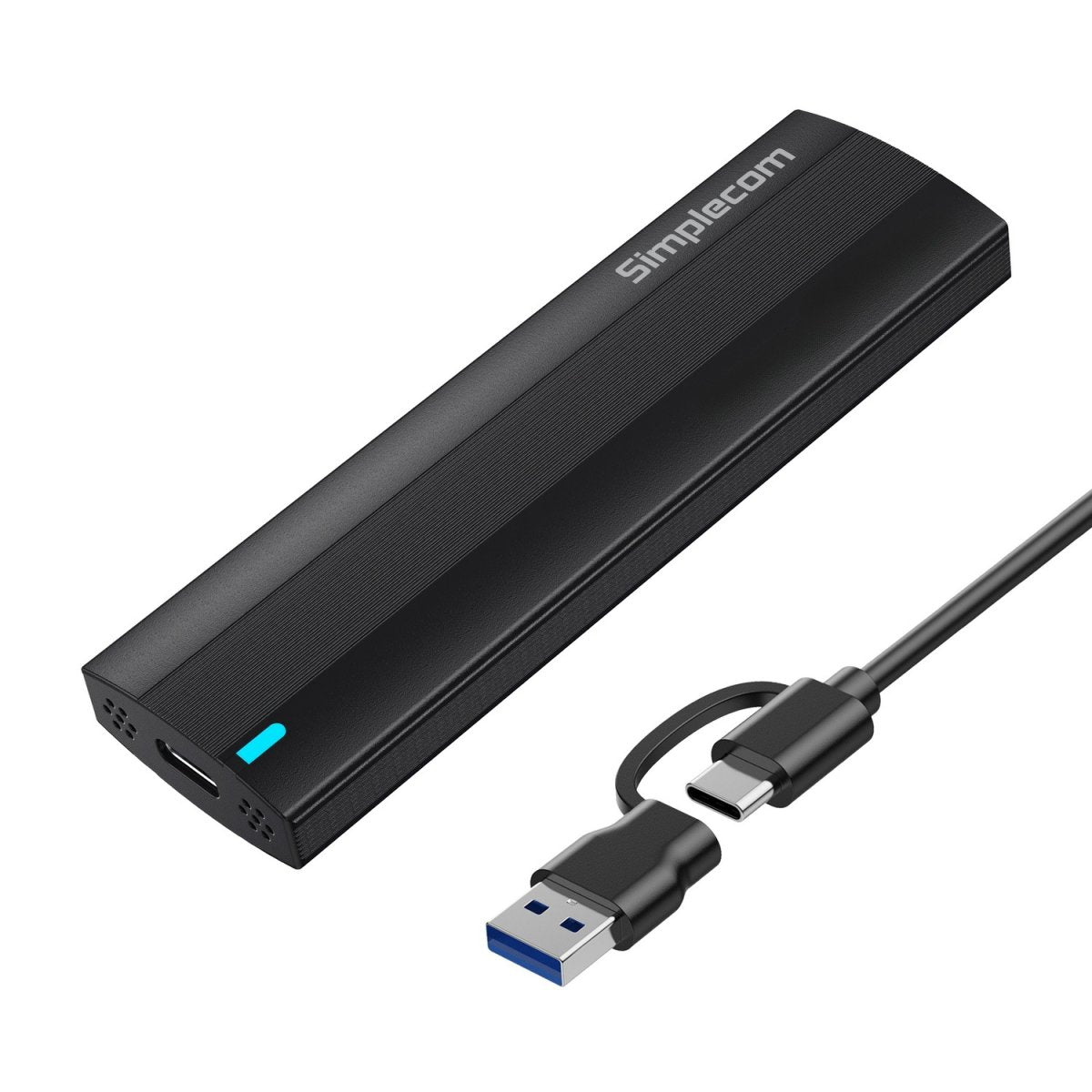

Simplecom SE517 NVMe / SATA Dual Protocol M.2 SSD Tool-Free USB-C Enclosure USB 3.2 Gen 2 10Gbps

SE517 is an M.2 SSD enclosure that offers dual-protocol support for both NVMe and SATA SSDs, compatible with M Key and B+M Key formats. It easily converts your M.2 SSD into a portable USB drive, providing a convenient solution for data transfer, backup, and storage expansion. Equipped with a USB 3.2 Gen 2 interface, it delivers high-speed data transfer rates of up to 10Gbps for efficient performance.

The tool-free design allows for quick and easy installation, enabling you to set up your SSD in seconds without any additional tools. With support for UASP and TRIM, the enclosure ensures faster data transfer, optimized performance, and extended SSD lifespan.

Its durable aluminum housing provides excellent heat dissipation while maintaining a compact and portable form factor. For ease of use, it features plug-and-play functionality with no driver installation required, along with an LED indicator to display power and activity status.

Features

Dual-protocol support for both NVMe and SATA M.2 SSDs

Converts M.2 SSDs (M Key or B+M Key) into a portable USB drive

USB 3.2 Gen 2 interface with transfer speeds up to 10Gbps

Tool-free design allows quick and easy M.2 SSD installation in seconds

Supports UASP for faster data transfer and improved performance

Supports TRIM to enhance write efficiency and extend SSD lifespan

Aluminum housing with a compact, portable design

Plug-and-play with no driver installation required

LED indicator displays power and activity status

Specifications

Model: SE517

Host Interface: USB-C (USB 3.2 Gen 2)

Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps

Supported M.2 Types: NVMe M.2 and SATA M.2

Supported M.2 Sizes: 2230 / 2242 / 2260 / 2280

Dimensions: 109 × 33 × 12 mm (L × W × H)

Operating Temperature: 0°C to 70°C

Operating Humidity: 10% to 85% RH

Enclosure Material: Aluminium and ABS plastic

Supported Operating Systems: Windows 7 or later; macOS 10.8 or later

Package Contents

1x SE517 Dual Protocol M.2 SSD Enclosure

1x USB-C + USB-A combo cable

1x Silicone thermal pad

Important Note

*SE517 supports both NVMe and SATA-based M.2 SSDs (M Key or B+M Key). When using a SATA M.2 SSD, bandwidth is limited to 6Gbps, which is the maximum transfer rate of the SATA interface.

Warranty: 12 months

Simplecom SE530 NVMe / SATA M.2 SSD to USB-C Enclosure with SMART LED Screen USB 3.2 Gen 2 10Gbps

Features

Built-in smart LED screen to display all crucial information of the SSD

Check the SSD status instantly without connecting to a computer

Real-time monitoring of SMART information for SSD health status

Touch button to switch display between info pages

Dual Protocol support for both NVMe and SATA M.2 SSD

USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps

Aluminium case for durability and excellent heat dissipation

Tool-free design, quick and easy installation of SSDs without any tools

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

Plug and play, no additional drivers required

Specifications

Model: SE530

Interface: USB-C (USB 3.2 Gen 2)

Housing Material: Aluminium, ABS Plastic

Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps

Compatible M.2 Protocol: NVMe M.2, SATA M.2

Compatible M.2 Size: 2242, 2260, 2280

Dimension: 96x43x12mm (LxWxH)

Operating System Support: Windows 7 and above, MacOS 10.8 and above

LED Screen Information:

Read/Write/Sleep status

SSD type and capacity

USB link speed

Partition detail and type

Temperature

Health percentage

Data read/written size

Power on hours

Power cycles

Unsafe shutdown times

Package Contents

1x SE530 M.2 SSD Enclosure

1x USB-C + USB-A combo cable

Important Note

SE530 supports both NVMe and SATA protocol based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA protocol is 6Gbps

Warranty: 12 months

Simplecom SE640 USB4 to NVMe M.2 SSD USB-C Enclosure 40Gbps

Features

USB4 interface supports data transfer speed up to 40Gbps

Transform your NVMe M.2 SSD into an ultra fast portable USB drive

Backward compatible with USB 3.0/3.1/3.2 interfaces at 5Gbps or 10Gbps

Full aluminium case for durability and excellent heat dissipation

Screwless aluminium case design, easy to open and lock the back cover

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

Easy to Install, plug and play, no additional driver needed

Specifications

Model: SE640

Interface: USB-C (USB4)

Compatibility: USB 2.0/3.0/3.1/3.2, Thunderbolt 3/4

Housing Material: Aluminium

Transfer Rate: up to 40Gbps on USB4, 10Gbps on USB 3.2 Gen2, 5Gbps on USB 3.2 Gen1

Compatible M.2 Protocol: NVMe M.2

Compatible M.2 Size: 2280

Read/Write Speed: Up to 3800MB/s Read, 3100MB/s Write

Dimension: 10 x 5 x1.4cm (LxWxH)

Weight: 95g

Operating System Support: Windows 10 or higher, macOS 10.5 or higher, Linux

Package Contents

1x SE640 USB4 NVMe Enclosure

1x USB4 Cable

1x Thermal Pad

Important Note

For NVMe M.2 2280 SSD only, SATA M.2 SSD is not supported.

Due to different systems and testing application algorithms, the read and write speed test results on macOS system will be slower than on Windows system.

To utilize the full bandwidth of the USB4 interface, please install high performance NVMe M.2 SSD into the enclosure, PCIe 4.0 NVMe M.2 SSDs are recommended.

The metal case will turn to a relatively high temperature during operation, which is normal and will not cause damage to your SSD as the metal case will effectively absorb heat.

Warranty: 12 months

Simplecom SE301 3.5' SATA to USB 3.0 Hard Drive Docking Enclosure

SE301 connects your SATA Drive to your PC via SuperSpeed USB 3.0 interface. With unique removable top cover design, you can use it as a normal external HDD enclosure or a HDD docking by uninstalling the top cover. SuperSpeed USB 3.0 interface enable the data transfer speed of SATA hard drives up to 5Gbps, also with enhanced with UASP (USB Attached SCSI Protocol), the SATA drives can even perform faster than conventional USB 3.0. Invisible ventilation holes on the bottom to ensure better heat dissipation and stable operation. SE301 offers convenience, speed and portability for data storage solution, sharing and transporting data could never be easier.

Features

Removable top cover, use as HDD enclosure or docking

Supports 3.5' SATA1/2/3 HDD as enclosure

Supports 2.5' or 3.5' SATA1/2/3 HDD/SSD as docking

Transfer Rates up to 5Gbps when connected to a USB 3.0 port

On/Off power switch

LED light indicates Power and Activity status

Ventilation holes on the bottom to ensure better heat dissipation

Hot-swappable, plug and play, no drivers needed

Backwards-Compatible with USB 2.0 and USB 1.1

Dimensions: 193mm x 114mm x 33mm (LxWxH)

System requirements

Available USB 3.0/2.0 port on the computer

Operating System: Windows XP and above, Linux, Mac OS 10.4 and above

Package Content

1x SE301

1x Power Adapter

1x Screw driver

2x Screws

1x USB3.0 Cable

1x User Manual

Warranty: 12 months

Simplecom SE482 SuperSpeed USB Dual Bay 3.5' SATA Hard Drive RAID Enclosure USB-C RAID 0/1, JBOD

Features

Dual bay 3.5' SATA hard drive enclosure with 4 operating modes

Connect two 3.5-inch SATA hard drives simultaneously

Support RAID 0, RAID 1, Large (JBOD) and Normal modes

USB-C interface support SuperSpeed data transfer rate up to 5Gbps

Auto sleep function, helping to extend the lifespan of HDDs

Temperature controlled fan for optimal and silent operation

Aluminium case for durability and excellent heat dissipation

Plug and play, no additional driver software required

LED light indicates RAID mode and HDD activity status

Specifications

Model: SE482

Interface: USB-C (USB 3.2 Gen1)

Transfer Rate: up to 5Gbps

HDD Support: 2x 3.5' SATA HDD (no capacity limit)

Operating Modes: RAID 0, RAID 1, Large, Normal

Cooling Fan: 5CM (Temperature controlled, only runs when above 48°C)

Main material: Aluminium, ABS Plastic

Power Input: DC 12V3A

Dimensions: 184 x 143 x 65mm (LxWxH)

Weight: 530g (without HDD)

Supported Operating Systems: Windows 7 and above, Mac OS 10.8 and above

Package Contents

1x Dual Bay HDD RAID Enclosure

1x Power Adapter

1x USB-C to USB-A Cable

1x USB-C to USB-C Cable

1x Screws set

INPORTANT NOTE:

Please read the user manual carefully before using the product

Changing of RAID mode will erase ALL data on hard drives, please backup important data before changing of RAID mode

Temperature controlled fan turns on automatically only when temperature is above 48°C

Warranty: 12 months

Simplecom SE505 NVMe M.2 SSD to USB-C Enclosure USB 3.2 Gen 2 10Gbps

QUICK OVERVIEW

- Designed for NVMe protocol based M.2 SSD

- Convert NVMe M.2 SSD to a USB portable drive

- USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps

- Ultra-slim aluminium case, durable and convenient, ideal for traveling

- Tool-free design, quick and easy installation of SSDs without any tools

- USB-C and USB-A combo cable, convenient for use on different devices

- Supports USAP for faster data transfer speed and maximum performance

- Supports TRIM command for improved data writing to extend SSD life

- USB bus powered, no external power required

- Plug and play, no additional drivers required

SE505 is a compact and portable M.2 SSD enclosure for NVMe M.2 SSD. It supports USB 3.2 Gen 2 standard, which offers data transfer speeds of up to 10Gbps. This ensures fast data transfer rates when connected to compatible devices.

The tool-free design of the enclosure allows for quick and easy installation of SSDs without the need for any tools. It also features an ultra-slim aluminium case that is not only durable but also convenient for travel. The material choice likely provides good protection for the SSD while keeping the form factor lightweight.

It's USB powered, plug and play, meaning it can be connected to a device without requiring additional power or driver software, which simplifies the user experience.

Package Contents

1x SE505 NVMe M.2 SSD Enclosure

1x USB-C + USB-A combo cable

Important Note

SE505 supports NVMe protocol based M.2 SSD only (M Key), SATA M.2 SSD is not supported

Warranty: 12 months

Simplecom SD560 Dual Bay NVMe M.2 SSD Enclosure Offline Clone Docking Station USB 3.2 Gen2 10Gbps

Features

Dual Bay NVMe M.2 SSD docking, support NVMe M.2 SSDs only

Access data from two NVMe M.2 slots simultaneously

Support multi-LUN (logical unit number), each slot has a separate drive letter

USB 3.2 Gen2 interface support up to 10Gbps data transfer rate

Support offline clone, standalone duplicating/cloning without host computer

Built-in cooling fan significantly reduces operating temperature

Intelligent fan control, auto-off when SSD is idle

Compact and portable design, save and tidy your desktop space

LED light indicates power and activity status

Specifications

Model: SD560

Interface: USB-C (USB 3.2 Gen 2)

Transfer Rate: up to 10Gbps

SSD Support: NVMe M.2 Only

SSD Size Support: 2230 / 2242 / 2260 / 2280

Multi-LUN Support: Yes

DC Input: 12V2A

Material: ABS, Aluminium

Net Weight: 115g

Dimensions: 125 x 65 x 25mm

Cooling Fan: 4410 5V Fan (auto-on when SSD is reading or writing, and auto-off when SSD is idle)

Operating System Support: Windows 7 and above, Mac OS 10.8 and above

Package Contents

1x SD560 Docking Station

1x USB-C and USB-A Combo Cable

1x Power Adapter (12V2A)

1x User Manual

Warranty: 12 months

Simplecom SE502C SATA M.2 SSD to USB-C Enclosure USB 3.2 Gen1 5Gbps

SE502C is a compact and portable enclosure for SATA protocol based M.2 SSD. This enclosure features USB-C interface and complies with USB 3.2 Gen1 standard, which supports data transfer speeds of up to 5Gbps.

The design of this enclosure is lightweight and portable, and it can be easily slipped into your pocket or bag. The durable aluminium casing provides heat dissipation to ensure your drive doesn't get overheated while you're using. The tool-free design of the enclosure allows for quick and easy installation of SSDs without the need for any tools. It's USB powered, plug and play, allowing it to connect to a computer without the need for extra power or driver software, simplifies the user experience.

Features:

Designed for SATA protocol based M.2 SSD

Convert SATA M.2 SSD to a USB portable drive

USB-C interface and complies with USB 3.2 Gen1 standard

Support SuperSpeed USB data transfer speeds up to 5Gbps

Ultra-slim aluminium case, durable and portable

Tool-free design, quick and easy installation without any tools

USB-C and USB-A combo cable, convenient for use on different devices

Support USAP for added data transfer performance

USB bus powered, no external power required

Plug and play, no additional drivers required

Specifications

Model: SE502C

Interface: USB-C (USB 3.2 Gen 1)

Housing Material: Aluminium

Transfer Rate: up to 5Gbps

Compatible M.2 Protocol: SATA M.2

Compatible M.2 Size: 2242 / 2260 / 2280

Dimension: 94x40x10mm (LxWxH)

Operating System Support: Windows 7 and above, macOS 10.10 and above

Package Contents

1x SE502C SATA M.2 SSD Enclosure

1x USB-C + USB-A combo cable

Important Note

For SATA M.2 SSD Only, NOT compatible with NVMe M.2 SSD. SATA protocol based M.2 is B Key or B+M Key, will not fit M Key only NVMe M.2 module.

Warranty: 12 months

Simplecom SE109 Tool-free 2.5' SATA HDD SSD to USB-C Enclosure USB 3.2 Gen 1

Quick Overview

Compatible with 7mm and 9.5mm laptop 2.5' SATA HDD/SSD

USB-C interface compliant with USB 3.2 Gen 1 standard

Supports SuperSpeed USB data transfer rates up to 5Gbps

Tool-free installation allows to mount SATA drive in seconds

USB-C and USB-A combo cable, convenient for use on different devices

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for optimized data writing to extend SSD life

Hot-swapping, plug and play, no additional driver needed

LED indicator for power and activity status

USB powered, no external power required

Description

Simplecom SE109 Tool-free 2.5' SATA HDD SSD to USB-C Enclosure USB 3.2 Gen 1

SE109 is a USB-C enclosure designed for 2.5' SATA HDDs and SSDs, compatible with both 7mm and 9.5mm SATA drives. It supports SuperSpeed data transfer rates of up to 5Gbps, ensuring fast and efficient file transfers.

With a tool-free design, installation takes just seconds, making it easy to swap drives whenever needed. The included USB-C and USB-A combo cable provides flexibility for use across various devices. With support for UASP and the TRIM command, it optimizes SSD performance, enhances data transfer speeds, and extends drive lifespan.

The enclosure is plug-and-play with hot-swapping capability, requiring no additional drivers or external power. An LED indicator provides real-time status updates for power and activity.

Features

Compatible with 7mm and 9.5mm laptop 2.5' SATA HDD/SSD

USB-C interface compliant with USB 3.2 Gen 1 standard

Supports SuperSpeed USB data transfer rates up to 5Gbps

Tool-free installation allows to mount SATA drive in seconds

USB-C and USB-A combo cable, convenient for use on different devices

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for optimized data writing to extend SSD life

Hot-swapping, plug and play, no additional driver needed

LED indicator for power and activity status

USB powered, no external power required

Specifications

Model: SE109

Interface: USB-C (USB 3.2 Gen 1)

Date Transfer Rate: up to 5Gbps

Housing Material: ABS Plastic

Dimensions: 125x79x15mm (LxWxH)

Weight: 56g

Drive Support: 2.5' SATA HDD or SSD (7mm or 9.5mm thickness)

Operating System Support: Windows 7 and later, macOS 10.8 and later, Linux

Package Contents

1x SE109 USB-C Enclosure

1x USB-C + USB-A combo cable

1x User Manual

Warranty: 12 months

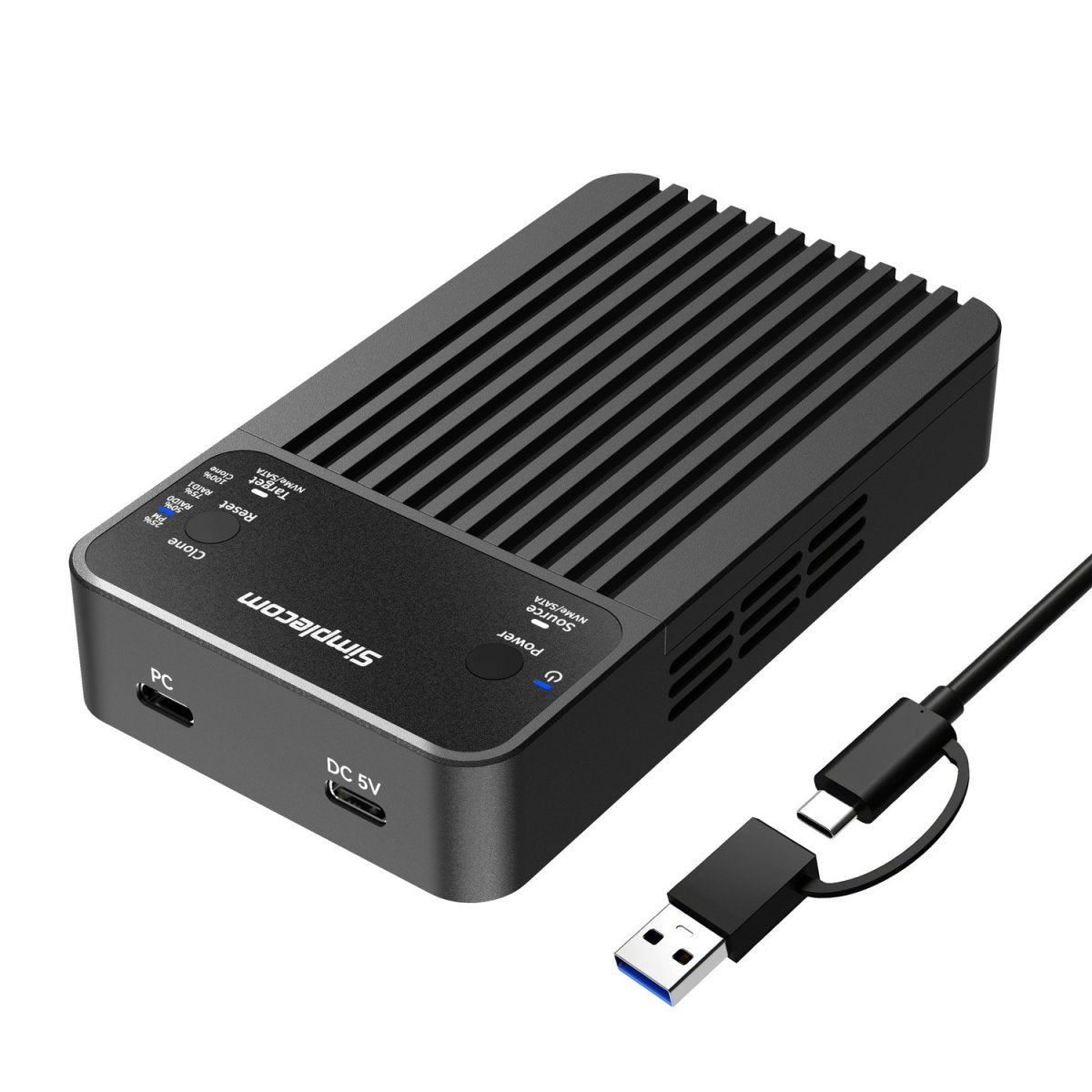

Simplecom SD562 Dual-Bay NVMe/SATA M.2 SSD RAID Enclosure with Offline Clone

SD562 is a high-performance dual-bay M.2 SSD enclosure designed for flexible storage expansion and efficient data management. Supporting both NVMe and SATA M.2 SSDs, it allows users to install two M.2 drives and operate them in multiple modes, including RAID 0, RAID 1, normal partition mode, and clone mode for quick duplication.

It helps manage and protect your data, making it a convenient solution for expanding storage capacity, enhancing data security, or configuring drives to suit different needs.

• Convenient and Fast

Featuring a USB 3.2 Gen 2 interface, this enclosure delivers data transfer speeds of up to 10Gbps, making it ideal for handling large files, backups, and system upgrades. The built-in offline cloning mode enables direct drive duplication without the need for a computer, providing a convenient solution for data migration.

• Durability and Reliability

Built with a durable aluminium enclosure, it ensures excellent heat dissipation, while the integrated cooling fan helps maintain stable performance during intensive operations. The tool-free design with a magnetic top cover allows for quick and hassle-free installation.

• Four Operating and RAID Modes

This enclosure offers various operating modes, including RAID 0, RAID 1, clone and normal partition modes. It provides flexibility in terms of storage configuration or data redundancy needs.

PM (Partition Mode): The enclosure operates as a standard external drive enclosure with no RAID configuration, treating each SSD as an independent drive. Two SSDs will appear as separate drive letters on the computer.

RAID 0: Disk striping mode that divides data into blocks and distributes them across two SSDs. This increases read and write performance, but it is not recommended for storing important data, as failure of one drive will result in total data loss.

RAID 1: Disk mirroring mode that provides data redundancy and fault tolerance by replicating data across two SSDs. This ensures files can be recovered if one drive fails.

CLONE: In this mode, the device operates as a standalone duplicator dock without being connected to a computer, allowing easy cloning of NVMe M.2 SSDs. It is ideal for data backup and migration.

Features

•Dual-bay NVMe/SATA M.2 SSD enclosure with 4 operating modes

•Supports RAID 0, RAID 1, clone and normal partition modes

•Allows simultaneous access to two M.2 SSDs in normal partition mode

•USB 3.2 Gen 2 interface with data transfer speeds up to 10Gbps

•Supports offline clone mode for standalone duplication without a host computer

•Built-in cooling fan effectively reduces operating temperatures

•Durable aluminium enclosure with excellent heat dissipation

•Tool-free installation with magnetic top cover

•Plug and play, no additional driver software required

•LED indicators for RAID mode, clone mode and drive activity status

Specifications

Model: SD562

Interface: USB-C (USB 3.2 Gen 2)

Transfer Rate: Up to 10Gbps

SSD Support: 2x NVMe M.2 or 2x SATA M.2 SSDs (NVMe and SATA M.2 cannot be used simultaneously)

SSD Size Support: 2230 / 2242 / 2260 (Source Slot only) / 2280

Operating Modes: RAID 0, RAID 1, Clone, normal Partition Mode

Cooling Fan: 20mm radial fan

Main material: Aluminium

Power Input: DC 5V/3A

Dimensions: 120x 68 x 22mm (LxWxH)

Weight: 208g (without SSD)

Supported Operating Systems: Windows 7 or later, macOS 10.8 or later

Package Contents

1x SD562 Dual-Bay M.2 SSD Enclosure

1x USB-C and USB-A Combo Cable

1x Power Adapter

2x Silicone thermal pads

2x Aluminium thermal pads

1x User Manual

Important Notes

•Only supports reading or cloning two SSDs with the same protocol (two M.2 NVMe SSDs or two M.2 SATA SSDs). NVMe and SATA M.2 SSDs cannot be used simultaneously in any of the four modes.

•Switching modes will format both SSDs. Please back up important data before switching modes to avoid data loss.

Warranty: 12 months

Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps

Quick Overview

Dual Protocol support for both NVMe and SATA M.2 SSD

Compatible with M Key or B+M Key M.2 SSD

USB-C interface compliant with USB 3.2 Gen 2 standard

Supports data transfer rates up to 10Gbps

USB-C and USB-A combo cable, convenient for use on different devices

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

Plug and play, no driver required

LED indicator for power and activity status

USB powered, no external power required

Description

Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps

SD511 is a high-speed, dual-protocol M.2 SSD Docking Station designed for both NVMe and SATA M.2 SSDs. Compatible with M Key and B+M Key M.2 SSDs, it provides a quick and hassle-free way to access M.2 SSD drives instantly through the USB port.

Featuring a USB 3.2 Gen 2 interface, it supports fast data transfer speeds of up to 10Gbps, ensuring efficient file transfers and optimal performance. With UASP and TRIM support, it enhances data transfer speeds, improves efficiency. For added convenience, the included USB-C and USB-A combo cable allows flexible connectivity across different devices. With a plug-and-play design, no drivers are needed for quick and hassle-free setup.

Compact, efficient, and easy to use, this M.2 SSD Docking Station is the perfect solution for high-speed data access and management.

Features

Dual Protocol support for both NVMe and SATA M.2 SSD

Compatible with M Key or B+M Key M.2 SSD

USB-C interface compliant with USB 3.2 Gen 2 standard

Supports data transfer rates up to 10Gbps*

USB-C and USB-A combo cable, convenient for use on different devices

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

Plug and play, no driver required

LED indicator for power and activity status

USB powered, no external power required

Specifications

Model: SD511

Material: ABS Plastic

Interface: USB-C (USB 3.2 Gen 2)

Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps

Compatible M.2 Type: NVMe M.2, SATA M.2

Compatible M.2 Size: 2230 / 2242 / 2260 / 2280 / 22100

Dimension: 66 x 51 x13mm (LxWxH)

Weight: 40g

Operating System Support: Windows 7 and later, macOS 10.8 and later, Linux

Package Contents

1x SD511 M.2 SSD Docking Station

1x USB-C + USB-A combo cable

1x User Manual

Important Note

* SD511 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps

Warranty: 12 months

Simplecom SE101 Compact Tool-Free 2.5'' SATA to USB 3.0 HDD/SSD Enclosure

Simplecom SE101 USB 3.0 Enclosure it a lightweight and simple 2.5'' SATA to USB 3.0 HDD/SSD Enclosure, supports 2.5' SATA laptop internal HDD/SSD. SE101 is a bus-powered portable hard drive enclosure that provides fast USB 3.0 transfer speeds, supports hot-swap, plug and play. LED light indicates Power and Activity status.

SE101 features stylish and ultra compact design, compatible with 7mm and 9.5mm SATA 2.5' drives. Stylish matt surface prevents noticeable fingerprint and light scratches. Available in 4 colors choices: black, white, blue and transparent clear.

Features

Stylish matt surface prevents noticeable fingerprint and light scratches

Compatible with 7mm and 9.5mm laptop 2.5' SATA HDD/SSD

SuperSpeed USB 3.0 Interface, backwards compatible with USB 2.0/1.1

Easy installation allow to mount Hard Drive in seconds

Hot-swapping, plug and play, no additional driver needed

UASP mode boost speed up to 70% compared to regular USB 3.0

LED light indicates power and activity status

Specifications

Model: SE101

Name: USB 3.0 to 2.5'' SATA Enclosure

Interface: USB 3.0

UASP Mode Support: Yes

Dimensions: 118x76x13mm(LxWxH)

Weight: 47g

HDD Support: 2.5' SATA HDD or SSD (7mm or 9.5mm height)

Compatible with Windows XP and above, Linux, Mac OS 10.4 and above

Package Contents

1x SE101 Enclosure

1x USB 3.0 Cable

1x Foam Pad

1x User Manual

Warranty: 12 months

Simplecom SA110 M.2 SSD Aluminum Heatsink with Thermal Silicone Pads for PC and PS5

This M.2 SSD heatsink is specially designed for M.2 2280 SSD and suitable for desktop computer or PS5 console. It has good cooling effects which temperature can be reduced by 10 to 20 Celsius depending on environment.

This heatsink helps to cool your M.2 SSD to a safe temperature to avoid overheating and throttling, so the SSD can run at full speed and improving the performance of your computer.

It comes with two silicon thermal pads, provide good thermal conductivity and improve heat dissipation. Low profile design with 11mm thickness, compatible with desktop computer or PlayStation5 console.

Features

Designed for single sided M.2 2280 SSD

Cooling down M.2 SSD to a safe temperature

Low profile design and works with desktop computers and PS5

Aluminium groove design provides more heat dissipation area

Provides 10° C - 20° C all around cooling (Varies depending on environment)

Helps prevent overheating and throttling, improving the SSD performance

Silicone thermal pads provide good thermal conductivity

Specifications

Model: SA110

Material: Aluminum

SSD Compatibility: M.2 2280 SSD (single sided)

System Compatibility: Desktop Computer, PS5

Working Temperature: 0 - 70° C

Working Humidity: 20% RH to 90% RH

Weight: 26g (Heatsink only)

Dimensions: 75(L)×24(W)×11(H)mm

Package Contents

Heat sink x1

Thermal pad x2

Screw for heatsink x4

Mounting Screw for PS5 x1

Mounting Screw for desktop PC x1

Screwdriver x1

User manual x1

Warranty: 12 months

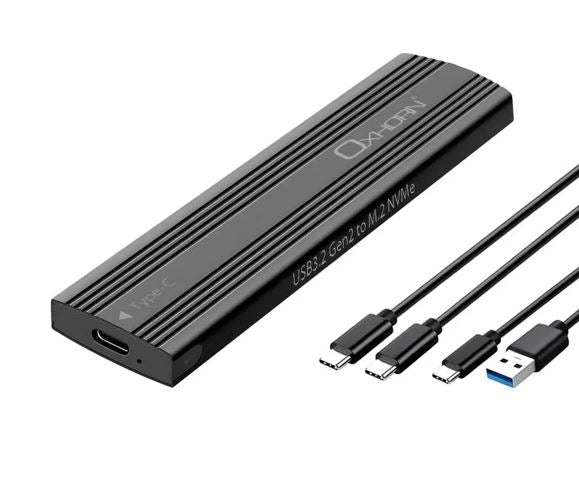

Oxhorn USB C 3.2 Gen 2 M.2 NVMe NGFF Enclosure 10 Gbps B+M Key M.2 NVMe SSD up to 4TB 2280/2260/2242/2230 Aluminum Macs Windows USB-A Black 2 YR WTY

Features:

For NVMe M.2 SSD

Supports M key , B+M key.

Supports M.2 NVMe SSD up to 4TB.

USB 3.2 Gen2 interface, up to 10Gbps transfer rate.

Quick and Easy Installation, tool-free installation

Supports Macs, Windows, Android, Linux, HarmonyOS

Aluminum case for better heat dissipation.

Plug and play

Two-year warranty

Specifications:

Performance:

Type and speed: USB 3. 2 Gen 2 – 10 Gbp/s

UASP Support: Yes

TRIM: Yes

Maximum drive capacity: Up to 4 TB SSD M.2

Environmental:

Operating temperature: 0 °C to 60 °C (32 °F to 140 °F)

Storage temperature: -20°C to 70°C (-4°F to 158°F)

Humidity: 10% ~ 90% R H

Hardware:

Interface: USB3. 2 Type C

Number of drives: 1

F a n ( s ) : No

What’s in the box

1 x USB 3.2 C M.2 SSD Enclosure

1 x USB C to C Cable

1 x USB A to C Cable

1 x Thermal Pad

Warranty: 24 months

Oxhorn USB 3.0 USAP 2.5″ SATA HDD SSD Enclosure Blue USB3.0 Cable (included) 2YR WTY

Features:

The UH-321 2.5 inch Super Speed USB 3. 0 SATA Hard Drive Enclosure turns a normal 2.5-inch SATA hard drive (HDD) or solid state drive(SSD) into a portable external hard drive.

Connecting to a host computer through USB3.0 with no external power required, this enclosure supports full Super Speed up to 5Gbps – 10 x faster than the USB 2.0 standard, and is back ward compatible with older USB connections (USB2.0) .

Large capacity drives (tested with up to 4TB) can be used to greatly enhance your computer’s storage / backup capabilities.

Featuring a light weight, portable design this USB 3.0 SATA HDD enclosure is constructed of aluminum, which offers maximum durability and operating heat dissipation.

Backed by a 2 – year warranty.

S p e c i f i c a t i o n s

P e r f o r ma n c e

T y p e a n d R a t e : U S B 3 . 0, 5 Gbps

UASP Support : Y e s

SATA I I I ( 6 Gb p s )

Ma x D r i v e C a p a c i t y : u p t o 4 T B h a r d d r i v e

E n v i r o n me n t a l

Op e r a t i n g T e mp e r a t u r e : 0 ° C t o 6 0 ° C ( 3 2 ° F t o 1 4 0 ° F )

S t o r a g e T e mp e r a t u r e : – 2 0 ° C t o 7 0 ° C ( – 4 ° F t o 1 5 8 ° F )

H u mi d i t y : 1 0 % ~ 9 0 % R H

H a r d w a r e

I n t e r f a c e : USB 3 . 0

N u mb e r o f D r i v e : 1

D r i v e S i z e : 2 . 5 i n

C o mp a t i b l e D r i v e T y p e s : S A T A

F a n ( s ) : N o

Wh a t ‘ s i n t h e B o x

1 x U S B t o S A T A E n c l o s u r e (UH-321)

1 x U S B 3 . 0 C a b l e

1 x U s e r Ma n u a l

Warranty: 24 months

Oxhorn USB C 3.2 Gen 2 M.2 NVMe NGFF Enclosure 10 Gbps B+M Key M.2 NVMe SSD up to 4TB 2280/2260/2242/2230 Aluminum Macs Windows USB-A Silver 2 YR WTY

Features:

For NVMe M.2 SSD

Supports M key , B+M key.

Supports M.2 NVMe SSD up to 4TB.

USB 3.2 Gen2 interface, up to 10Gbps transfer rate.

Quick and Easy Installation, tool-free installation

Supports Macs, Windows, Android, Linux, HarmonyOS

Aluminum case for better heat dissipation.

Plug and play

Two-year warranty

Specifications:

Performance:

Type and speed: USB 3. 2 Gen 2 – 10 Gbp/s

UASP Support: Yes

TRIM: Yes

Maximum drive capacity: Up to 4 TB SSD M.2

Environmental:

Operating temperature: 0 °C to 60 °C (32 °F to 140 °F)

Storage temperature: -20°C to 70°C (-4°F to 158°F)

Humidity: 10% ~ 90% R H

Hardware:

Interface: USB3. 2 Type C

Number of drives: 1

F a n ( s ) : No

What’s in the box

1 x USB 3.2 C M.2 SSD Enclosure

1 x USB C to C Cable

1 x USB A to C Cable

1 x Thermal Pad

Warranty: 24 months

Oxhorn USB 3.0 USAP 2.5″ SATA HDD SSD Enclosure Silver USB3.0 Cable (included) 2YR WTY

Features:

The UH-321 2.5 inch Super Speed USB 3. 0 SATA Hard Drive Enclosure turns a normal 2.5-inch SATA hard drive (HDD) or solid state drive(SSD) into a portable external hard drive.

Connecting to a host computer through USB3.0 with no external power required, this enclosure supports full Super Speed up to 5Gbps – 10 x faster than the USB 2.0 standard, and is back ward compatible with older USB connections (USB2.0) .

Large capacity drives (tested with up to 4TB) can be used to greatly enhance your computer’s storage / backup capabilities.

Featuring a light weight, portable design this USB 3.0 SATA HDD enclosure is constructed of aluminum, which offers maximum durability and operating heat dissipation.

Backed by a 2 – year warranty.

S p e c i f i c a t i o n s

P e r f o r ma n c e

T y p e a n d R a t e : U S B 3 . 0, 5 Gbps

UASP Support : Y e s

SATA I I I ( 6 Gb p s )

Ma x D r i v e C a p a c i t y : u p t o 4 T B h a r d d r i v e

E n v i r o n me n t a l

Op e r a t i n g T e mp e r a t u r e : 0 ° C t o 6 0 ° C ( 3 2 ° F t o 1 4 0 ° F )

S t o r a g e T e mp e r a t u r e : – 2 0 ° C t o 7 0 ° C ( – 4 ° F t o 1 5 8 ° F )

H u mi d i t y : 1 0 % ~ 9 0 % R H

H a r d w a r e

I n t e r f a c e : USB 3 . 0

N u mb e r o f D r i v e : 1

D r i v e S i z e : 2 . 5 i n

C o mp a t i b l e D r i v e T y p e s : S A T A

F a n ( s ) : N o

Wh a t ‘ s i n t h e B o x

1 x U S B t o S A T A E n c l o s u r e (UH-321)

1 x U S B 3 . 0 C a b l e

1 x U s e r Ma n u a l

Warranty: 24 months

mbeat H3 USB 3.2 Gen2x2 20Gbps Dual M.2 NVMe SSD Dock with Clone Duplicator (Black)

Features

Dual SSD Dock & Clone Duplicator: Seamlessly connect two M.2 SSDs for instant data transfer and duplication tasks.

Versatile Data Transfer: Effortlessly supports various transfer modes including NVMe to NVMe or AHCI to NVMe, with offline clone capability for enhanced flexibility.

Wide Compatibility: Compatible with AHCI SSDs and B+M & M Key NVMe SSDs, accommodating sizes ranging from 2230, 2240, 2260, 2280 and 22110 for comprehensive compatibility.

High-Speed Transfers: Utilises USB 3.2 Gen2 technology to ensure lightning-fast data transfers at speeds of up to 20Gbps, while built-in LED indicators provide quick status checks during clone operations.

Cross-Platform Compatibility: Designed to seamlessly work with both Windows and Mac OS systems, ensuring versatility and ease of use across different platforms.

Specifications

USB Port: USB-C 3.2 Gen2 × 2

Data Speed: Max. 20Gbps for one SSD, 10Gbps per SSD for two

USB Compatibility: Backward compatible with USB 3.1/3.0/2.0 standard

Controller IC: JMS586U

SSD Interface: Supports B+M & M Key NVMe SSD

Clone Speed: Up to 15Gbps maximum (SSD requires minimum 2000MB/s read and1600MB/s write)

Supports SSD Size: M.2 SSD 2230/2242/2260/2280/22110

Supports OS: Windows 2000/2003/XP/Vista/7/8/8.1/10/11 and MAC OS

DC Power: Include +5V/3A Power supply

Cable Length: Built-in 25cm cable

Product Dimension (with Cable): 332mm × 76mm × 16.3mm

Product Weight (with Cable): 96g

Package Contents: Dual M.2 SSD Dock, DC Power Supply, User Manual

Warranty: 12 months

mbeat C1 Tool-Free USB 3.0 3.5' & 2.5' SATA HDD Enclosure - Black

Features

Effortless Installation: Simplify setup with our tool-free, screw-less design and handy slide cover.

Universal Compatibility: Accommodates 3.5' and 2.5' SATA HDDs/SSDs up to 20TB, compatible with Windows and MAC OS.

Rapid Connectivity: Experience lightning-fast USB 3.0 speeds up to 5Gbps and hot plug-and-play functionality.

Smart Monitoring: Stay informed with LED indicators for instant updates on power and data access.

Reliable Performance: Includes a power adapter for stable HDD operation, ensuring data integrity and longevity.

Specifications

USB Port: USB 3.0

Data Speed: Maximum up to 5Gbps

USB Compatibility: Backward compatible with USB 2.0/480Mbps

HDD Interface: 3.5'/2.5' SATA HDD/SSD

HDD Capacity: Maximum up to 20TB

DC Power: +12V/2A Power Supply Included

Supports UASP and hot plug and play

Supports OS: Windows 2000/2003/XP/Vista/7/8/8.1/10/11/MAC OS

Product Dimension: 188mm × 111mm × 32mm

Product Weight: 121g

Package Contents: 3.5' HDD Enclosure, USB Data Cable, Power Supply, User Manual

Warranty: 12 months

mbeat D1 USB 3.0 3.5' & 2.5' SATA HDD Docking Station - Black

Features

Effortless Setup: Simply plug and play with our tool-free docking station design for easy HDD access.

Universal Compatibility: Supports 3.5' and 2.5' SATA HDDs/SSDs up to 20TB, compatible with Windows and MAC OS.

Rapid Connectivity: Experience lightning-fast USB 3.0 speeds up to 5Gbps for seamless data transfer.

Smart Monitoring: Stay updated with LED indicators for instant power and data access notifications.

Reliable Performance: Includes power adapter for stable HDD operation, ensuring data integrity and durability.

Specifications

USB Port: USB 3.0

Data Speed: Max. 5Gbps

USB Compatibility: Backward compatible with

USB 2.0/480Mbps

HDD Interface: Compatible with 2.5' and 3.5' SATA HDD/SSD

HDD Capacity: Max. 20TB

DC Power: Include +12V/2A Power Supply

Supports UASP and hot plug and play

Supports OS: Windows 2000/2003/XP/Vista/7/8/8.1/10/11/MAC OS

Product Dimension: 129mm × 75mm × 57mm

Product Weight: 250g

Package Contents: USB 3.0 HDD Docking Station, USB Data Cable, Power Supply, User Manual

Warranty: 12 months

mbeat A2 Slim Tool-Free USB 3.0 2.5' SATA HDD Enclosure - Black

Features

Seamless Installation: Embrace simplicity with our tool-free, screw-less design and convenient slide cover for effortless setup.

Rapid Connectivity: Experience lightning-fast USB 3.0 speeds up to 5Gbps, coupled with hot plug and play functionality for instant accessibility.

Universal Compatibility: Designed to accommodate all 9.5mm SATA HDDs/SSDs, ensuring compatibility across Windows and MAC OS platforms.

Smart Monitoring: Stay informed with LED indicators providing instant updates on power status and data access, keeping you always connected.

Reliable Performance: Rely on our enclosure for stable, uninterrupted HDD operation, safeguarding your data integrity and ensuring long-lasting performance without compromise.

Specifications

USB Port: USB 3.0

Data Speed: Maximum up to 5Gbps

USB Compatibility: Backward compatible with USB 2.0/480Mbps

HDD Interface: 2.5' SATA HDD/SSD

HDD Capacity: Maximum up to 8TB

Supports UASP and hot plug and play

Supports OS: Windows 2000/2003/XP/Vista/7/8/8.1/10/11 and MAC OS

Product Dimension: 120mm × 78mm × 15mm

Product Weight: 35g

Package Contents: 2.5' HDD Enclosure, USB Data Cable, User Manual

Warranty: 12 months

mbeat A1 See-Through Tool Free USB 3.0 2.5' SATA HDD Enclosure - Black

Features

Seamless Setup: Say goodbye to complicated installations with our tool-free, screw-less design, wrapped in a trendy see-through casing.

Speed and Convenience: Experience lightning-fast USB 3.0 connectivity, supporting speeds of up to 5Gbps and offering hot plug and play functionality for instant access.

Universal Compatibility: Designed to accommodate all 9.5mm SATA HDDs/SSDs, our enclosure is compatible with a wide range of operating systems including Windows and MAC OS.

Intuitive Monitoring: Stay in the loop with LED indicators for instant updates on power status and data access, ensuring you're always informed and connected.

Dependable Performance: Count on our enclosure for stable, uninterrupted HDD operation, safeguarding your data integrity and ensuring longevity without compromise.

Specifications

USB Port: USB 3.0

Data Speed: Maximum up to 5Gbps

USB Compatibility: Backward compatible with USB 2.0/480Mbps

HDD Interface: 2.5' SATA HDD/SSD

HDD Capacity: Maximum up to 8TB

Supports UASP and hot plug and play

Supports OS: Windows 2000/2003/XP/Vista/7/8/8.1/10/11 and MAC OS

Product Dimension: 125.6mm × 78mm × 14mm

Product Weight: 53g

Package Contents: 2.5' HDD Enclosure, USB Data Cable, User Manual

Warranty: 12 months

mbeat 10Gbps M.2 NVMe SATA SSD Enclosure

Features:

Tool-Free Assembly for Effortless Setup

Easily install your SSD with the convenient tool-free design. The aluminium casing efficiently dissipates heat, ensuring optimal performance.

Versatile Storage Options up to 4TB

Accommodate both M.2 NVMe and M.2 SATA SSDs, offering storage solutions of up to 4TB to meet diverse data needs.

Seamless USB Connectivity with 2-in-1 Cable

Connect effortlessly to USB-A or USB-C devices using a single 2-in-1 cable. This simplifies data transfer and broadens compatibility.

High-Speed Gen 2 Data Transfers at 10Gbps

Experience rapid data transfers with Gen 2 support, reaching speeds of up to 10Gbps. Ideal for efficient management of large files and data-intensive tasks.

Wide SSD Compatibility for Your Needs

This enclosure supports various M Key and B+M Key SSDs, available in sizes like 2230, 2242, 2260, and 2280, ensuring compatibility with your specific SSD requirements.

Specifications:

Support SSD Type: M.2 NVMe (M Key & B+M Key) & M.2 SATA (M Key)

Support SSD Size: 2230 / 2242 / 2260 / 2280

Support SSD Capacity: Max. 4TB

Transfer Speed: Max. 10Gbps

USB Compatibility: USB 3.2 Gen 2 backward compatible with USB 3.1, 3.0 & 2.0

OS Compatibility: Win XP/7/8/10/11, Mac OS 10.2+, Linux

Cable Type: 2-in-1 USB-A & USB-C

Cable Length: Approx. 30cm

Product Dimensions: 107×32.4×13.1mm

Product Weight: 46g

Package Dimensions: 175×95×20mm

Package Weight: 102g

Warranty: 12 months

Simplecom SE523 Magnetic M.2 2230 NVMe SSD to USB-C Enclosure 10Gbps 100W PD Charging

Transform your M.2 2230 NVMe SSD into an ultra-fast portable drive with this USB-C enclosure. Featuring a USB 3.2 Gen 2 interface, it delivers fast data transfer speeds of up to 10Gbps for quick and efficient data transfers. The durable aluminium housing provides excellent heat dissipation, while the magnetic backplate easily attaches to metal surfaces or MagSafe for added convenience.

A dedicated PD port supports up to 100W power delivery, ensuring reliable charging while accessing data. With TRIM command support, it enhances data writing efficiency and extends SSD lifespan.

Compatible with a wide range of devices, including computers, smartphones, and tablets, this enclosure is fully plug-and-play, no driver installation or external power required. It's the perfect combination of performance, convenience, and portability for modern storage needs.

Features

Converts M.2 2230 NVMe SSD into a portable USB-C storage device

USB 3.2 Gen 2 interface supports transfer speeds up to 10Gbps

Magnetic backplate attaches securely to metal surfaces or iPhone MagSafe

Dedicated PD port supports up to 100W charging for reliable power delivery

Aluminium housing ensures durability and effective heat dissipation

Supports TRIM command for improved data writing to extend SSD life

Works with computers, smartphones, tablets, and more

LED indicator shows power and activity status

USB bus-powered, no external power needed

Plug and play, no driver software required

Compatible with Windows, macOS, Linux, iOS, Android and more

Specifications

Model: SE523

Host Interface: USB-C (USB 3.2 Gen 2)

PD Port: USB-C, supports up to 100W Power Delivery

Transfer Rate: up to 10Gbps

Housing Material: Aluminium

Compatible M.2 Protocol: NVMe

Compatible M.2 Size: 2230

Dimensions: 59 × 59 × 10.6 mm (L × W × H)

Weight: 64g­

OS Compatibility: Windows, macOS, Linux, iOS, iPadOS, Android, Chrome OS

Package Contents

1x NVMe M.2 SSD Enclosure

1x USB-C to USB-C Cable

1x Screw driver

1x Silicone thermal pad

1x User manual

Important Note

Compatible exclusively with NVMe M.2 2230 SSDs, SATA M.2 SSDs are not supported.

Compatible with iPhone models featuring 10Gbps USB-C ports for direct 4K ProRes video recording to external storage.

If the SSD is not recognized by your smartphone, please format it to exFAT.

The USB-C PD port is intended solely for charging the connected host device and does not support data transfer.

Warranty: 12 months

Simplecom SA101 mSATA to 7mm 2.5' SATA Converter Enclosure Aluminium

SA101 mSATA to 7mm 2.5' SATA Enclosure let you convert your mSATA SSD into a standard 7mm 2.5 SATA form factor drive, so you can install mSATA SSD to a 2.5' SATA interface on PC or laptop or install it into a regular 2.5' SATA to USB enclosure.

Features

The durable Aluminium casing promises effective heat dissipation

Support mSATA SSD converted into a standard 2.5' SATA interface

Added protection for your mSATA SSD with enclosed housing

The speed and other properties is not changed, only form conversion interface

Compatible mSATA SSD Type: 30x50mm

Size: 100 mm*70 mm*7 mm

Note

The product only support mini SATA (mSATA) SSD, does not support mini PCI-Express (mPCIe) SSD and and PATA Mini PCIE SSD

Warranty: 12 months

Simplecom SA221 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to SATA and USB 3.0 interface. Use this adapter to easily access 6 different size M.2 or mSATA SSDs via standard SATA or USB 3.0 port. It’s an ideal solution for data backup and migration.

Specifications

mSATA + M.2 SSD 2 in 1 Combo Adapter

Detachable USB 3.0 cable, with SATA and USB 3.0 dual interface

LED indicates power and activity status

Support SATA Revision 3.2

PCI Express M.2 Spec. Revision 0.7, Version 1.0

PCI Express Mini Card Electromechanical Spec. 1.2

B Key M.2 interface, support B Key or B+M Key M.2 SSD

Thermal shutdown protection

Short circuit protection

In-rush current suppression

PWM synchronous buck converter Power IC

Support following form factor M.2(NGFF) SSD:

Type 2230-D2-B-M: 30mm(L) x 22mm(W)

Type 2242-D2-B-M: 42mm(L) x 22mm(W)

Type 2260-D2-B-M: 60mm(L) x 22mm(W)

Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Support following form factor mSATA SSD:

Half size mSATA : 26.8mm(L) x 30mm(W)

Full size mSATA : 50.95mm(L) x 30mm(W)

Note:

If both M.2 & mSATA SSD inserted at the same time the M.2 SSD will take priority. The mSATA SSD will be disabled until the M.2 SSD is removed.

The M.2 interface is B Key, M Key only or NVMeM.2 SSD are not supported.

Package Contents

1x mSATA + M.2 SSD to SATA 2 in 1 Combo Adapter

1x USB 3.0 Cable

Warranty: 12 months
