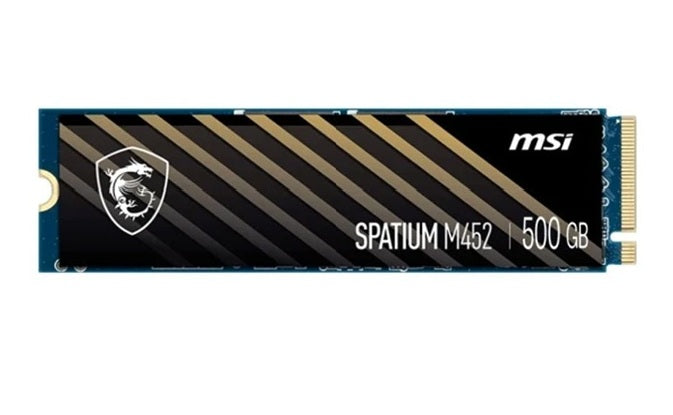

SPATIUM M452 PCIe 4.0 NVMe M.2 500GB, M.2 2280, PCIe Gen4x4 NVMe 1.4, 3D NAND, Phison E29T, 3600/3100 MB/s, 150TBW, 5Y Wty

SPATIUM M452 PCIe 4.0 NVMe M.2 500GB (S78-440K210-P83)

PRODUCT SPECIFICATION

Model Name SPATIUM M452 PCIe 4.0 NVMe M.2

Capacity 500GB

Controller PHISON E29T

Flash Memory 3D NAND

Form Factor M.2 2280

Interface PCIe Gen4 x4, NVMe 1.4 (2CH)

Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1

Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s) 3600

Sequential Write up to (MB/s) 3100

Random Read 4KB up to (IOPS) 470,000

Random Write 4KB up to (IOPS) 750,000

Idle Power PS3 (mW) 50

Low Power L1.2 (mW) 5

Operating Temperatures 0°C – 70°C

Storage Temperatures -40°C – 85°C

Terabytes Written (TBW) 150

Mean Time Between Failure (MTBF) Up to 1,500,000 Hours

Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features

TRIM (Performance Optimization, OS Support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

Pyrite (Encryption, Data Security)

Warranty: 60 months

Part No.: SPATIUM M452 500GB
