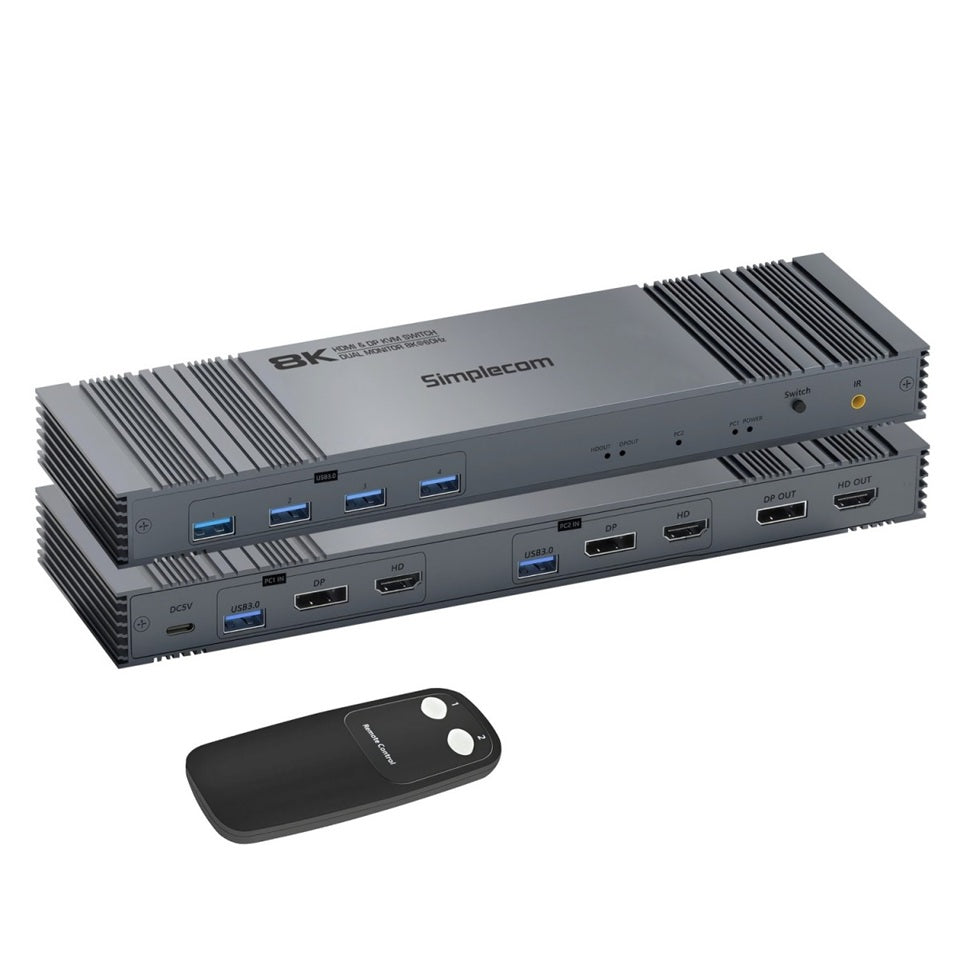

Simplecom KM490 HDMI and DisplayPort Dual Monitor KVM Switch for 2 Computers with 4-Port USB 3.0 Hub 5Gbps 8K@60Hz

Simplecom KM470 2-Port USB-C KVM Switch 8K Docking Station HDMI 2.1 DP for Laptop Tablet

Quick Overview

Dual monitor KVM switch allows 2 computers to share 2 displays and 4 USB ports

HDMI and DisplayPort dual display ports support extended or mirrored modes

HDMI 2.1 and DP 1.4 compliant, support video resolution up to 8K@60Hz

Integrated 4-port USB 3.0 hub toggled with the display simultaneously

4 USB 3.0 ports for connecting mouse, keyboard, USB drive, printer and more

SuperSpeed USB ports support up to 5Gbps data transfer rate

Backward compatible with previous versions of USB, HDMI and DP

Easy to use by pressing the toggle button on the KVM switch or remote control

Plug and play, no driver required with multi-platform compatibility

Durable aluminium alloy casing, also efficiently dissipate heat

LED lights indicating power and active computer

This Dual Monitor KVM Switch is an efficient solution designed to simplify your workspace by allowing two computers to share two displays and four USB peripherals. Equipped with both HDMI 2.1 and DisplayPort 1.4 dual display ports, it supports extended or mirrored display modes with an ultra-high video resolution of up to 8K at 60Hz for crystal-clear visuals.

This KVM switch also features an integrated 4-port USB 3.0 hub, enabling you to simultaneously toggle both displays and connected USB peripherals. Four SuperSpeed USB ports offer data transfer rates up to 5Gbps, ideal for connecting devices like mice, keyboards, USB drives, printers, and more. It's backward-compatible with earlier versions of USB, HDMI, and DP, ensuring broad device support.

User-friendly and easy to operate, this KVM switch allows you to toggle between computers using either the on-device button or a remote control. It's plug-and-play, with no drivers required, and work­s seamlessly across multiple platforms. The durable aluminum alloy casing ensures long-lasting use and efficient heat dissipation. LED indicators provide clear status updates on power and active computer connections.

Perfect for professionals who require high performance and multitasking capabilities, this dual monitor KVM switch offers robust functionality and smooth, efficient switching, making it an ideal choice for multi-system setups.

Specifications

Model: KM490

USB Upstream Ports: USB 3.0 AF x2 (Connect to PC1 and PC2)

USB Downstream Ports: USB 3.0 AF x4 (Connect USB peripherals)

Monitor Input: HDMI 2.1 x2, DP 1.4 x2 (Connect to PC1 and PC2)

Monitor Output: HDMI 2.1 x1, DP 1.4 x1 (Connect to displays)

Power Input: USB-C, DC 5V (power input only, no data transfer function)

USB Max Bandwidth: SuperSpeed 5Gbps

Video Max Bandwidth: up to 48Gbps

Max Video Resolution: 8K@60Hz (7680x4320), 4K@144Hz (3840x2160), 2K@165Hz (2560x1440), 1080p@240Hz (1920x1080)

Max Cable Length for Input/Output: ≤3m for 8K@60Hz, ≤5m for 4K@60Hz

Operating Temperature Range: -5°C to 45°C

Operating Humidity Range: 5 to 90%RH (no Condensation)

Dimension (L x W x H): 25.9 x 7.4 x 2.6cm

Weight: 468g

Operating System Support: Windows, MacOS, Linux, Chrome OS

Package Contents

1x Dual Display KVM Switch

2x USB-A to USB-A 5Gbps Data Cables

1x USB-C Power Cable

1x 5V USB Power Adapter

1x Remote Control

1x IR Receiver Cable for Remote

Important Note

Powered by USB, USB-C power cable can be plugged into USB port on computer for 4K@60Hz or lower resolution. USB power adapter is required for 8K@60Hz, 4K@120Hz and higher refresh rates.

For stable connection, please use high quality DP and HDMI cables.

For 8K compatibility, DP 1.4 and HDMI 2.1 cable are required.

This KVM switch also works in single monitor mode.

It is recommended to adjust to the same resolution and refresh rate on both computers for smooth switching.

Warranty: 12 months

Part No.: KM490
