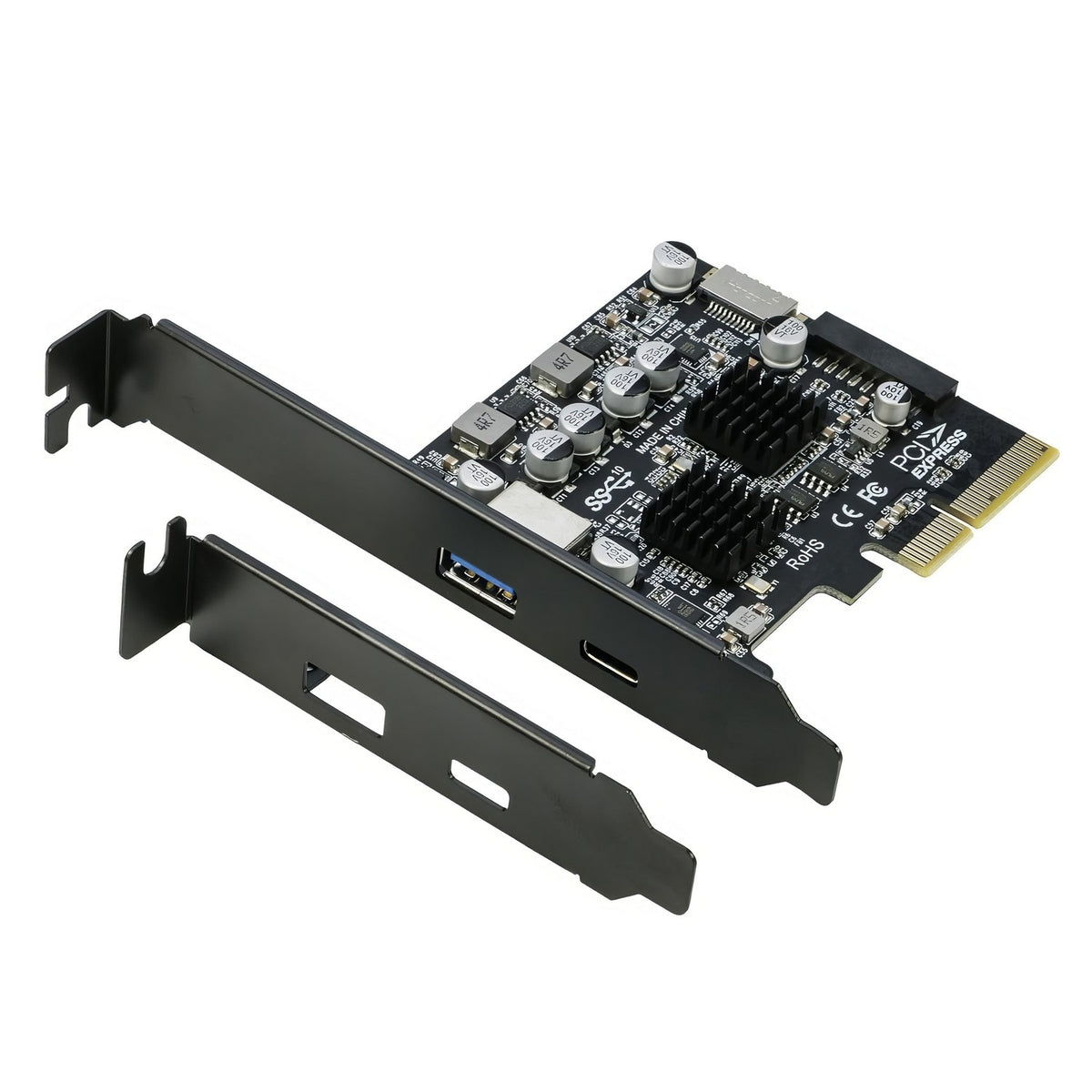

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card

Quick Overview

- PCIe x4 expansion card, also compatible PCIe x8 or x16 slot

- USB 3.2 Gen 2 interface supports data transfer rates of up to 10Gbps

- Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller

- The USB ports on the rear panel and front panel can operate simultaneously

- Two rear panel connectors, 1x USB-C and 1x USB-A port

- Two internal connectors for front panel, USB 3.0 19/20-Pin and Key-A (Type-E) connectors

- Backwards compatible with USB 2.0 and USB 1.1 devices

- Built-in over current protection on each USB port

- Powered by PCIe, no external power required

- Built-in PCIe 12V to 5V modules provide power to USB ports

- Plug and play, automatic installation on Windows

Specifications

PCIe Interface: PCIe 3.0 x4, compatible PCIe x8 or x16 slot

USB Standard: USB 3.2 Gen 2 10Gbps

Rear Panel Connectors: 1x USB-A, 1x USB-C

Internal Connectors for Front Panel: 1x USB 3.0 19/20Pin socket (Front USB-A), 1x Key-A (Type-E) connector (Front USB-C)

USB Speed Support: SuperSpeed+ (10Gpbs), SuperSpeed (5Gpbs), HiSpeed (480Mbps), Full Speed (12Mbps)

USB Power Source: Integrated PCIe 12V to 5V module

Operating System Support: Windows 7 and above

Package Contents

1x USB 3.2 Gen 2 Expansion Card

1x Low Profile Bracket

System Requirement

1x available PCle 3.0 or higher x4/x8/x16 slot on motherboard, please note PCIe 1.0 or 2.0 x4 slot bandwidth is lower than 10Gbps

Plug and play for Windows 8 and above operating system, Windows 7 system need to install driver

Warranty: 24 months

Part No.: EC315
