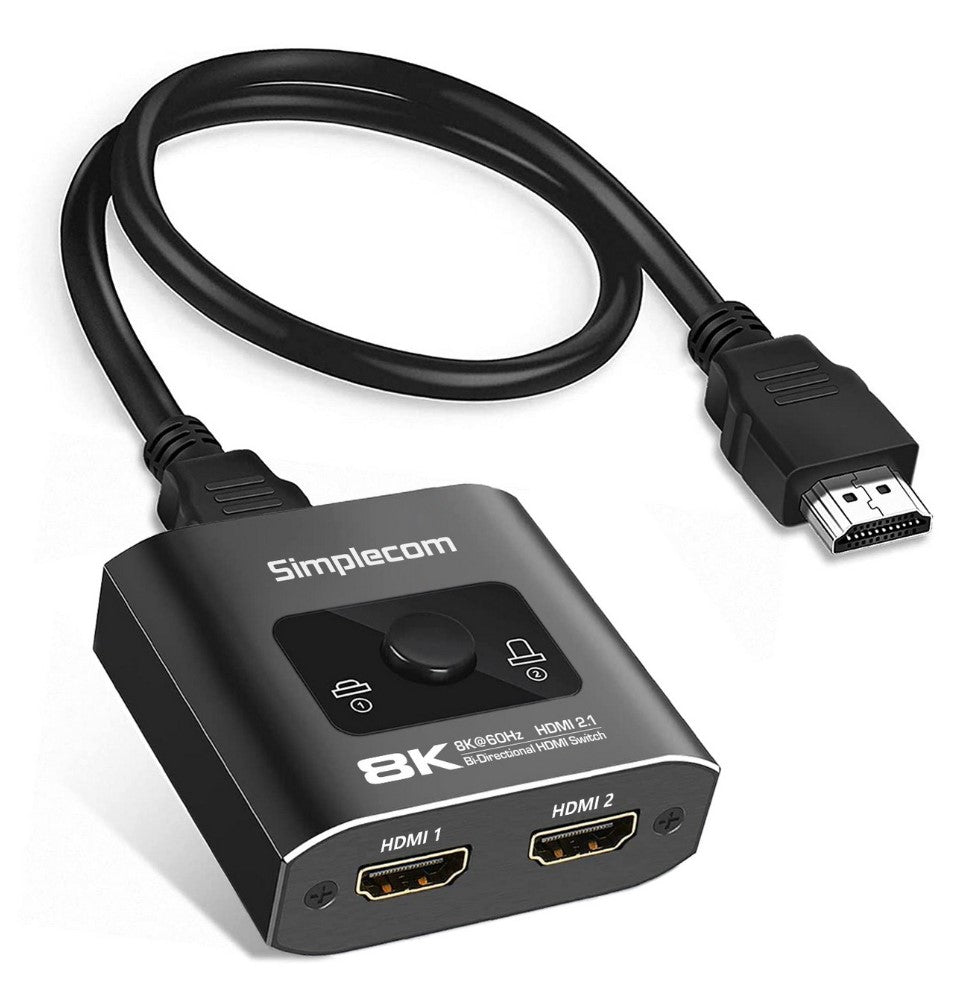

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K

Features

Bi-Directional HDMI 2.1 switch for toggling between 2 HDMI sources or displays

Quickly switch video sources or displays without having to swap cables

Durable aluminium alloy casing, also efficiently dissipate heat

Portable and compact size, easy to install

HDMI 2.1 compliant, support bandwidth up to 48Gbps

Support HDMI video resolution up to 8K@60hz

HDCP 2.3 compliant, wide compatibility with most HDMI source devices

Powered by HDMI source device, no external power required

Specifications

Model: CM302v2

HDMI Version: HDMI 2.1

Video Resolution Support: up to 1080@240Hz, 4K@120Hz, 8K@60Hz

Audio Format Support: DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1

HDR Format Support: HDR10

HDCP Version Support: HDCP 2.3

Max Bandwidth: 48Gbps

Max cable distance: Input<2M, Output<2M

Max Operation Current: 15mA

Power Input: USB DC 5V (Backup power only)

Operating Temperature: (-15 to +55°C)

Dimension (L x W x H): 53x52x21mm

Weight: 45g

Package Contents

1 x Bi-Directional HDMI Switch

1 x HDMI cable

1 x User Manual

Important Notes:

The length of the HDMI cable connected to both ends of the switch should not exceed 2 meters.

This is a manual HDMI switch and does not support automatic switching.

Powered by HDMI source device, with USB-C port for backup power if no enough power from HDMI.

Two screens cannot display simultaneously under 1 Input 2 Outputs mode.

Warranty: 12 months

Part No.: CM302V2
