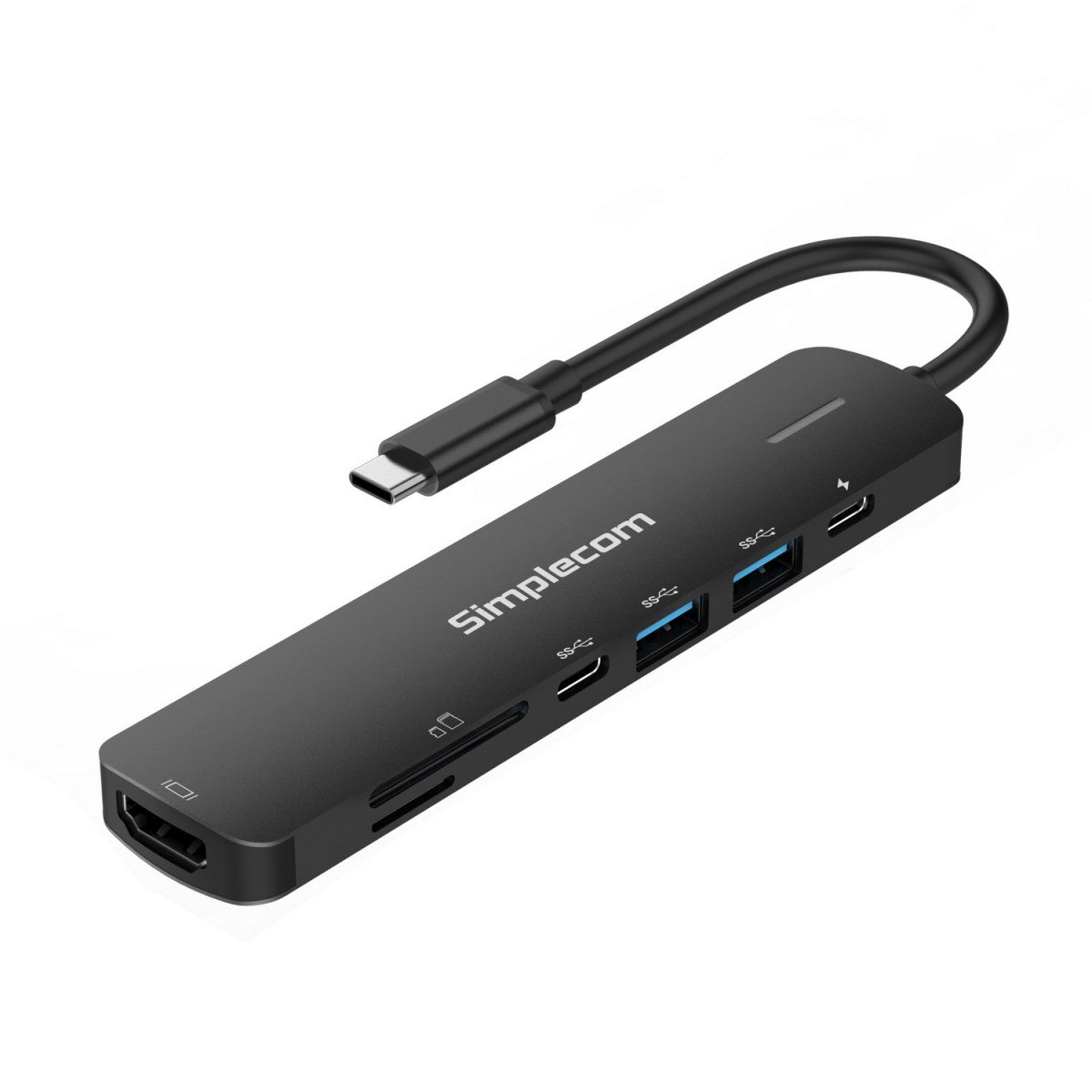

Simplecom CHT570 USB-C SuperSpeed 7-in-1 Multiport Hub Adapter HDMI 2.0 Docking Station

Simplecom CHT570 USB-C SuperSpeed 7-in-1 Multiport Hub Adapter HDMI 2.0 Docking Station

Features

7-in-1 USB-C multiport docking station for connectivity expansion to your laptop

Single USB-C to extra USB-A and USB-C ports, HDMI, Card Reader and PD

USB ports support SuperSpeed data transfer rate up to 5Gbps

HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode

USB-C PD port for charging the laptop with up to 100W of power

2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate

Durable & stylish aluminium alloy housing

Lightweight and portable, easy to carry along when travelling

Built-in flexible USB-C Cable

Plug & play, no driver software required

Specifications

Host Interface: USB-C

USB Hub: 2x USB-A Female (5Gbps), 1x USB-C Female (5Gbps)

HDMI Resolutions: Support up to 3840 x 2160p at 60Hz (4K@60Hz)

Card Reader: SD and MicroSD (SuperSpeed 5Gbps)

PD Charging: 1x USB-C Female (for charging only), up to 100W

Operation Temperature: 0 - 45°C

Housing Material: Aluminium

Dimensions: 13 x 2.9 x 1.1cm

Cable Length: 15cm

Weight: 50g

System Requirements

USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support

Compatible with Thunderbolt USB-C port or USB4 port

Operating system: Windows 10 or above, macOS 10.12 or above, Android, ChromeOS

Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz

Important Note

Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function

4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)

The USB-C PD port is for PD Charging only, not for data transfer

For more stable connection when using multiple devices, connect a PD power adaptor to the USB-C PD port for extra power

Warranty: 12 months

Part No.: CHT570
