Shuttle DL40N XPC fanless Mini PC 1.3L Barebone - Intel® Twin Lake processorsN150 (4 Cores), DDR5, 8x USB, 2x 2.65W Adapter

Shuttle DL40N XPC fanless Mini PC 1.3L Barebone - Intel® Twin Lake processorsN150 (4 Cores), DDR5, 8x USB, 2x 2.65W Adapter

FORM FACTOR 1.3L slim form factor

PROCESSOR Intel® Twin lake-N up to 7W CPU

Intel® Processor® N150 (DL40N)

MEMORY Support DDR5 4800Mhz SODIMM memory Max. 16GB

VIDEO OUTPUT (1)HDMI 2.0b + (1)DisplayPort + (1)VGA video outputs

Support triple independent display

Intel generation HD Graphic engine

AUDIO 2 channel High Definition Audio

ETHERNET Intel I226-LM Dual LAN controller

Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation

Support wake ON LAN (WOL) feature

STORAGE INTERFACE SATA for HDD/SSD

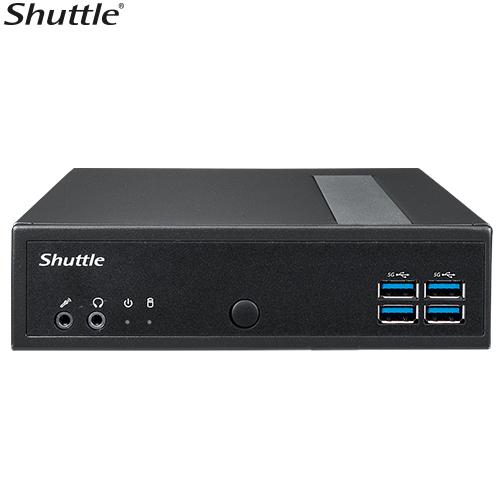

FRONT PANEL (1) Power button

(1) Power Led

(1) HDD Led

(4) USB 3.2 Gen1 ports

(1) MIC-IN

(1) Audio out

BACK PANEL (2) Intel® 2.5GbE LAN w/LED

(1) Display port

(1) HDMI port

(4) USB 3.2 Gen1 ports

(1) DC in

(1) RS232/RS422/RS485

(1) RS232

(1) VGA

(1) External power on/Clear CMOS header

(2) Antenna Hole

DRIVE BAYS (1) 2.5' HDD Max.(9.5mm) / SSD bay

DIMENSIONS 190(L) x 165(W) x 43(H) mm

POWER 65W 19V Adapter bundled

Input:100- 240V AC

Output: 19V/3.42A or 12V/5.42A DC

ACCESSORIES XPC Multilanguage Quick User Guide

XPC DVD Driver

VESA screw pack

VESA bracket

65W adapter

Screw pack

Power cord

EXPANSION SLOT (1) M.2 Type M (2280)

(1) M.2 Type E (2230)

OS SUPPORT Windows 11 64 bit O.S

Ubuntu Linux O.S

CERTIFICATION Safety certification : CB , BSMI , cTUVus

EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA

OPERATING TEMPERATURE 0℃~40℃

Warranty: 36 months

Part No.: DL40N
