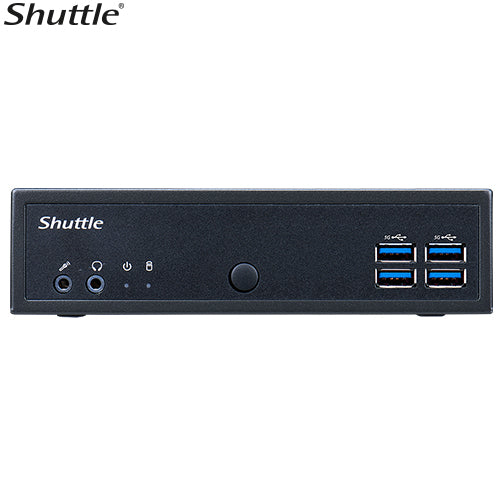

Shuttle DL30N Slim Mini PC 1L Barebone - Intel Processor N100, Fan-less, LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W Adapter

Shuttle DL30N Slim Mini PC 1L Barebone - Intel Processor N100, Fan-less, LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W Adapter

Form Factor

1.3L slim form factor

Processor

Intel® Processor® N100 (DL30N)

Memory

Support DDR5 4800Mhz SODIMM memory Max. 16GB

Video Output

HDMI 2.0b + DisplayPort + VGA video output | Support triple independent display | Intel generation HD Graphic engine

Audio

2 channels High-Definition Audio

Ethernet

Intel I226-LM Dual LAN controller | Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation | Support wake ON LAN (WOL) feature

Storage Interface

SATA for HDD/SSD

Front Panel

Power button | Power Led | HDD Led | USB 3.2 Gen1 ports | MIC-IN | Audio out

Back Panel

Intel® 2.5GbE LAN w/LED | Display port | HDMI port | USB 3.2 Gen1 ports | DC in | RS232/RS422/RS485

Expansion Slot

M.2 Type M (2280) | M.2 Type E (2230)

OS Support

Windows 11 64 bit O.S

Ubuntu

Linux O.S

Warranty: 36 months

Part No.: DL30N N100
