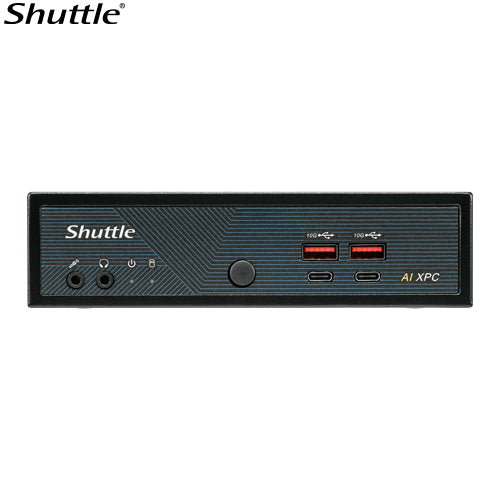

Shuttle AI XPC, Intel ® Meteor Lake Core Ultra 5 125H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230

Shuttle AI XPC, Intel ® Meteor Lake Core Ultra 5 125H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230

FORM FACTOR 1.3L chassis

PROCESSOR Intel Core Ultra 5 125H 28W CPU

MEMORY 2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB)

DDR5 5600 MHz

VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs

4K playback (Dual channel memory recommended)

Integrated in CPU

AUDIO Realtek ALC 888S High Definition Audio

ETHERNET (4)Intel 2.5GbE LAN

Support wake ON LAN (WOL) feature

STORAGE INTERFACE SATA 6.0Gb/s interface

NVMe interface

ONBOARD CONNECTORS (1) 4pin fan connector

(1) Auto power on header

FRONT PANEL (2) USB 3.2 Gen2x2 TypeC ports

(2) USB 3.2 Gen2 ports

(1) Microphone-In

(1) Line-Out

(1) Power-On button

(1) Power LED

(1) HDD LED

BACK PANEL (4) RJ45 LAN port w/LED

(2) HDMI port TMDS Compatiible

(2) Display port

(4) USB 3.2 Gen2 ports

(1) External 4pin header

(1) DC-in

(2) Wireless Antenna fixture

(1) Kensington lock

DIMENSIONS 190(L) x 165(W) x 43(H) mm

POWER 120W Power Adapter

Input:100- 240V AC

19V 6.32A

ACCESSORIES XPC Multilanguage Quick User Guide

XPC DVD Driver

VESA mount

VESA Screw pack

Power cord

120W adapter

EXPANSION SLOT (2) M.2 2280 M key socket for NVMe/SATA SSD

(1) M.2 2280 M key socket for NVMe SSD/WWN04

(1) M.2 2230 Type E key socket for WIFI

OS SUPPORT Windows 11 64 bit O.S

Linux

OPERATING TEMPERATURE 0℃~50℃

Warranty: 36 months

Part No.: DN11H5
