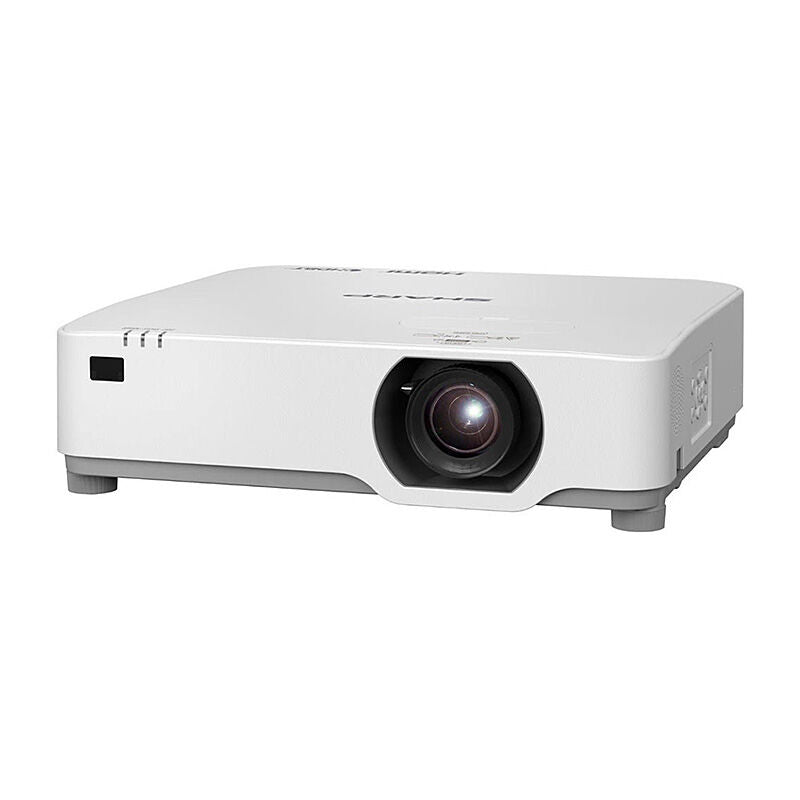

Sharp XP-P621U-W - Professional P621U-W

SHARP Solid State Light Source with dustproof design (no lamp or filter), HD Base T, Low Noise, 4K UHD 30Hz ready, 21:9 aspect ratio

Features

• IP5x sealed cooling system provides a filter-free projection solution
• Whisper quiet operation for minimal distraction
• LCD, laser technology delivers an impressive and color accurate image
• Manual horizontal & vertical lens shift enables flexible projector placement
• Built-in HDBaseT input provides a single connection for video, audio and control
• 4K Ready - Display stunning 4K UHD 30Hz content using Sharp's proprietary high performance video processing/scaling chip
• Supports 21:9 aspect ratio for more engaging meeting spaces
• Eco-friendly features minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education classrooms and corporate conference rooms

Specifications

General Information

• Projection Technology: 3LCD Technology
• Native Resolution: 1920x1200
• Aspect Ratio: 16:10
• Contrast Ratio (typ.): 3,000,000:1
• Brightness (Lumen): 6200 Lm Normal / 6500 Lm Center / 5500 Lm Silent Mode; compliant with ISO21118-2020
• Light Source: Laser
• Light Source Life: 20,000 hrs
• Lens: F= 1.6–2, f= 15.3–24.6 mm
• Lens shift: H:±20, V:+44,-0
• Keystone correction: +/- 30° manual horizontal / +/- 30° manual vertical
• Projection Factor: 1.08–1.76:1
• Projection Distance (m): 0.8 – 12.9m
• Screen Size (diagonal): Maximum: 762 / 300"; Minimum: 76 / 30"
• Zoom: Manual; x1.6
• Focus Adjustment: Manual

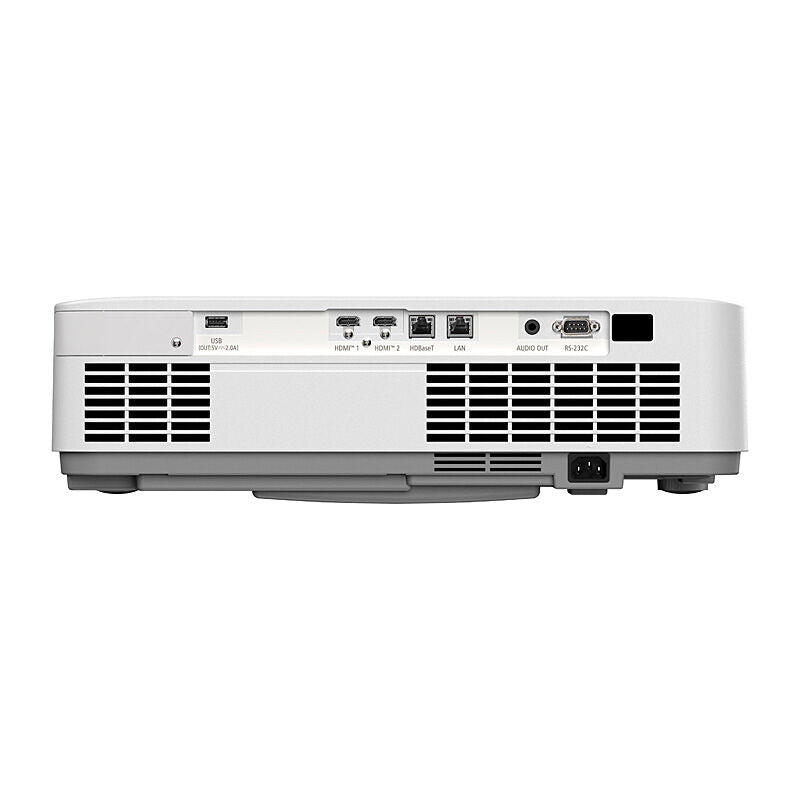

Connectivity

• Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP
• Audio Output: 1 x 3.5 mm Stereo Mini Jack (variable)
• Input Control: 1 x D-Sub 9 pin (RS-232) (male)
• LAN: 1 x RJ45
• USB: 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply
• Remote Control: Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Eco Mode Control; Freeze; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left

Electrical

• Power Supply: 100-240 V AC; 50 - 60 Hz
• Power Consumption: 310 Normal / 280 Silent Mode / 1 Network Stand-by / 0.4 Stand-by

Environmental

• Operating Temperature: 5ºC to 40ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -10ºC to 50ºC
• Storage Humidity: 20% to 80%

Mechanical

• Dimensions (W x H x D) mm : 480 x 122 x 407 (without lens and feet)
• Weight kg : 9.7
• Fan Noise dB (A) : 29 / 22 (Normal / Silent)
• Colour Versions: White

Other Features

• Safety and Ergonomics: CE; ErP; RoHS; RCM; TUEV Type Approved
• Built-In Speaker: 1 x 20 (mono)
• Special Characteristics: AMX Beacon; Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; Crestron Connected; Direct Power-Off Function; Free Tilt; HDBaseT; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; NaViSet Administrator 2; Optional User Logo; OSD with 25 languages; Password Security System; PJ LINK; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer

Ecological Standards

• ErP compliant; RoHs compliant

Ecological Materials

• Downloadable manuals; ECO packaging

Shipping Content (Accessories)

• 2x AAA Batteries; IR Remote Control; Power Cord; Projector; Quick Setup Guide; Security Sticker; Users Manual

Downloads

• Product brochure

Part No.: XP-P621U-W
