Sharp PN-ME432 - ME-series 43'' Display

SHARP Recommended for meeting rooms and signage applications. Native USB-C supports Bring Your Own Device workflows, with quick input detection. Comes with an integrated System on Chip (SoC) with Android 13 Operating System.

Features

• Seamless connectivity with a single cable connection between notebook and display. The native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity.
• Powerful System-on-Chip Design to fit your digital signage needs.
• Best readability even in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources.
• Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C while supporting both legacy NEC and Sharp protocol.
• 400 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation.
• Integrated Media Player allows for playlist creation and scheduled playback via USB or onboard storage.
• Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails.
• NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations.

Specifications

General Information

• Panel Technology: ADS with Direct LED backlights
• Screen Size: 43 inch
• Max. Brightness (average): 400 cd/m2
• Contrast Ratio: 1200:1
• Viewing Angle (H/V): 178
• Haze Level (%): 25
• Supported Orientation: Landscape, Portrait
• Dimensions (W x D x H): 964.6 x 552.5 x 62.0 millimetre
• Bezel Width: 9.9 (left, right); 9.9 (top, bottom) millimetre
• Weight: 9.4 kilogram
• VESA Mounting mm : 4x M6 x 14mm (200 x 200)

Resolution

• Native Resolution: 3840 x 2160

Synchronisation Rate

• Horizontal Frequency kHz : 15 - 135
• Vertical Frequency Hz : 23-76
• Aspect Ratio: 16:9
• Supported Resolution: 4096x2160, 3840x2160, 1920x1200, 1920x1080, 1280x720, 640x480,

Connectivity

• Input Video Analogue: N/A
• Input Video Digital: 3 x HDMI, 1 x USB-C (DP-Alt Mode Supported)
• Input Audio Analogue: N/A
• Input Control: LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C
• Input Data: USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 x1 (Downstream for USB-C), USB-C x1 (Upstream)
• Output Audio Digital: 3.5mm Mini Jack, SPDIF Optical

Installation

• Installation: Landscape

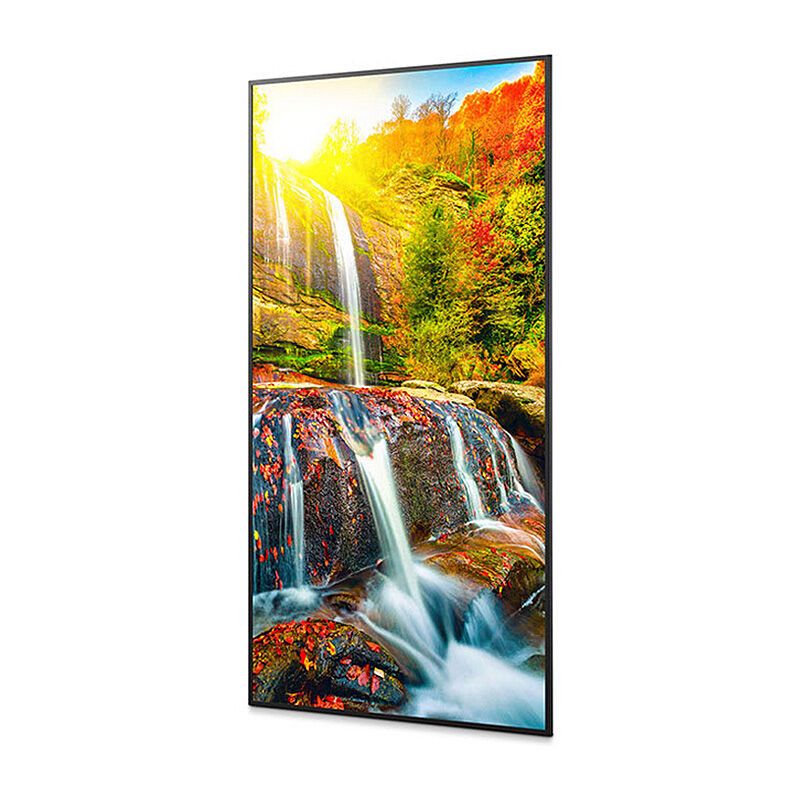

• Installation: Portrait

Sensors

• Ambient Light Sensor: Integrated triggered actions programmable
• Temperature Sensor: Integrated Triggered actions programmable 1 sensor
• Human Sensor: Optional (KT-RC3)

Electrical

• Power Consumption: 90-175
• Power Savings Mode: <0.5W (Normal Standby); 2W (Network Standby)
• Operating Hours: 18/7

Environmental

• Operating Temperature: 0ºC to 50ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -20ºC to 60ºC
• Storage Humidity: 10% to 80%

Other Features

• Safety and Ergonomics: Energy Star 8.0
• Audio (Speakers): Integrated 10W x 10W, Optional through SP-RM3a

Shipping Content

• Shipping Content (Accessories): AC Power Cord, 2.0m HDMI Cable, IR Remote Control & Batteries

Downloads

• Product brochure

Part No.: PN-ME432
