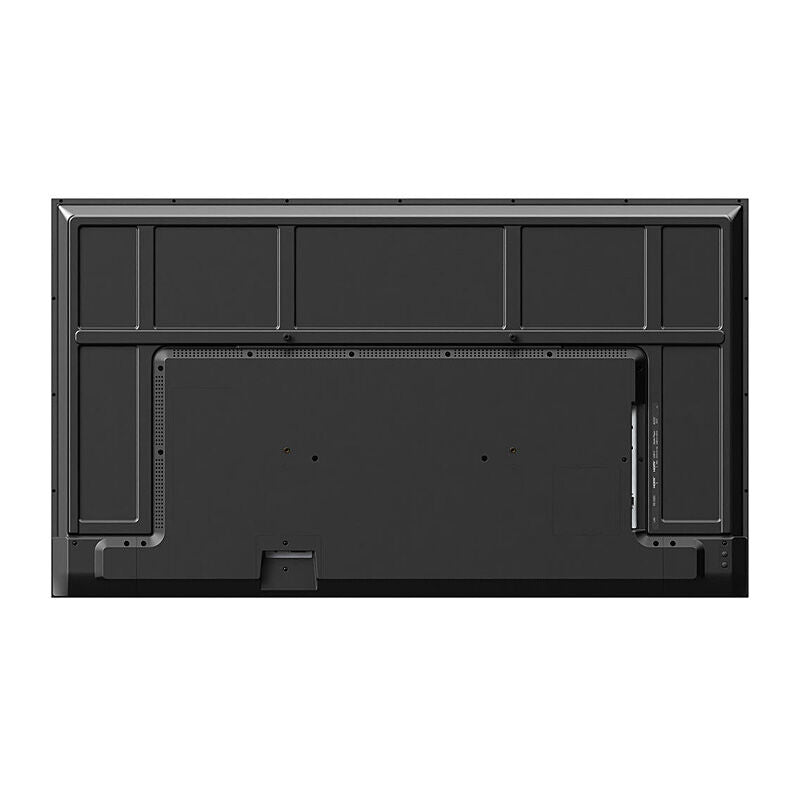

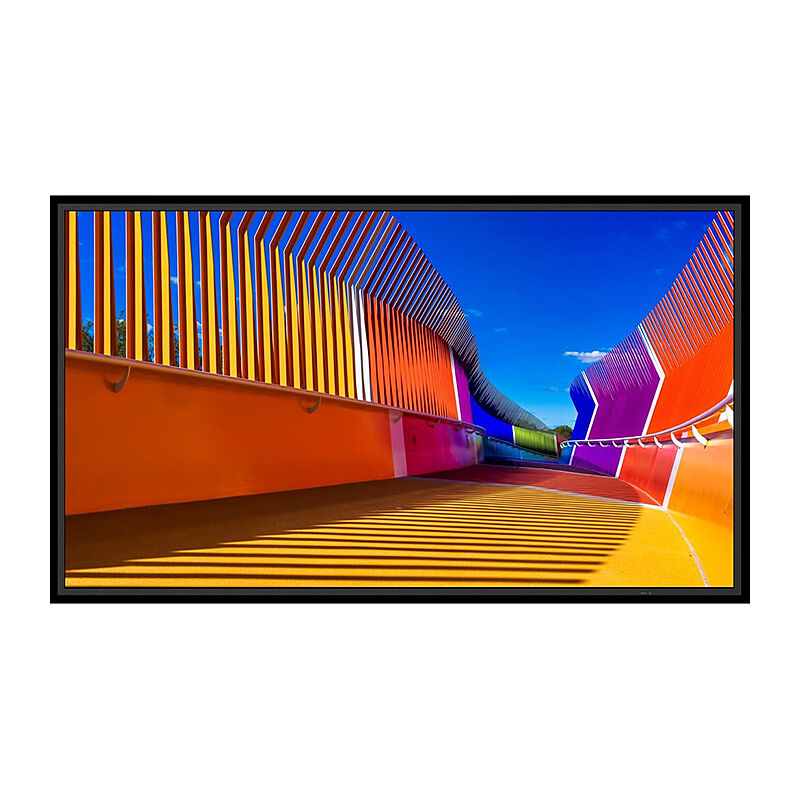

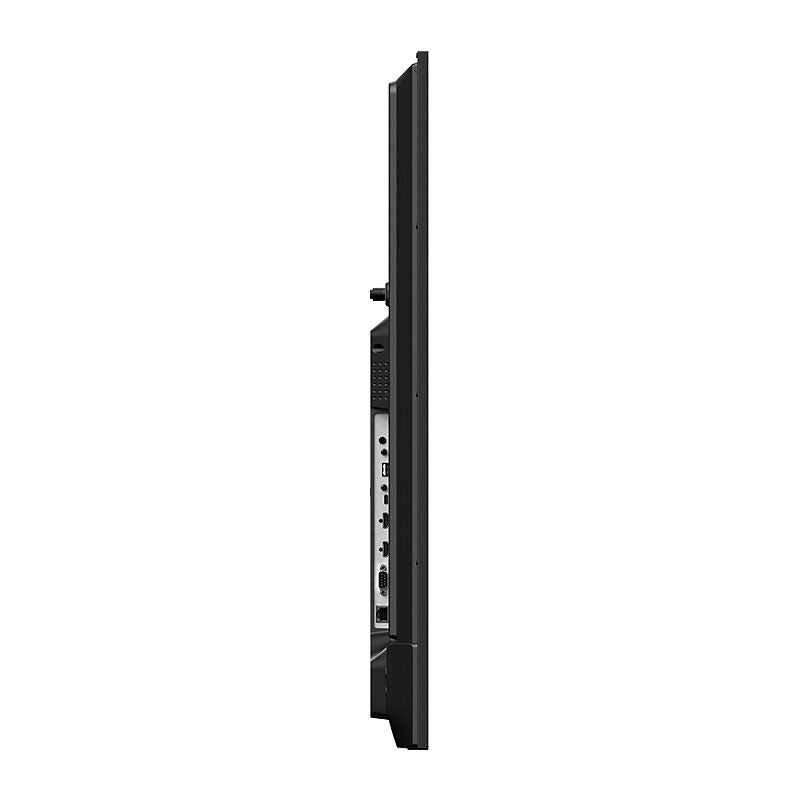

Sharp PN-E869 - Essential 86'' Display

SHARP Commercial 86'' Display, 4K UHD resolution, 350nits Brightness with High Haze. Recommended for up to 16hr/day use. Landscape and Portrait use with even bezel. USB-C & HDMI inputs. LAN control.

Features

• 4K UHD native resolution allows for high end visual acuity!
• Built-in, integrated 10W speakers enhance the experience with superior sound
• Industrial-strength, premium-grade panel with metal frame bezel, allows for hassle-free 16/7 operation
• Tilt back and forth installation (-20°?20°) to install it at desired angle
• Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
• 24-Hour On/Off timer maintains power schedules
• Integrated Media Player allows for audio, video or image playback via USB
• USB Type-C port for audio/video input
• NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Specifications

• Panel Technology: ADS with Direct LED backlights
• Active Screen Area: 1,895.0 x 1,066.0 mm
• Screen Size: 86 inch
• Aspect Ratio: 16:9
• Pixel Pitch: 0.4935 mm
• Brightness: 350 cd/m2
• Contrast Ratio: 1200:1
• Viewing Angle (H/V): 178° horizontal / 178° vertical (typ. at contrast ratio 10:1)
• Colour Depth: 1.073 bn (8-bit + FRC)
• Response Time: 8 ms
• Panel Refresh Rate: 60 Hz
• Haze Level: 25%
• Supported Orientation: Landscape, Portrait

Resolution

• Native Resolution: 3840 x 2160
• Supported Resolution: 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1280 x 960; 1360 x 768; 1400 x 1050; 1440 x 900; 1680 x 1050; 1920 x 1080; 1920 x 1200; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 720 x 480; 720 x 576

Synchronisation Rate

• Horizontal Frequency: 15 – 136 kHz
• Vertical Frequency: 24 – 75 Hz

Connectivity

• Input Video Digital: 1 x USB-C (with HDCP, 15 W); 2 x HDMI
• Input Audio Digital: 1 x USB-C; 3 x HDMI
• Input Control: 1 x LAN 100 Mbit; 1 x RS232
• Input Data: 1 x USB 2.0 (Media Player); 1 x USB Type-C (5V/3A, power for external devices)
• Output Audio Analogue: 1 x 3.5 mm jack
• Remote Control: IR Remote Control; RS‑232C (9‑pin D‑sub) input

Electrical

• Power Consumption: 245 W (shipping)
• Power Savings Mode: < 0.5 W; < 2 W (Networked Standby)
• Power Supply: 100–240 V AC; 50/60 Hz; internal

Environmental

• Operating Temperature: 0 °C to 40 °C
• Operating Humidity: 20% to 80%
• Storage Temperature: −20 °C to 60 °C
• Storage Humidity: 10% to 80%

Mechanical

• Dimensions (W x H x D): 1,927 x 1,098.6 x 60 mm
• Weight: 32.5 kg
• Bezel Width: 12.9 mm
• VESA Mounting: 600 x 400 mm (M8)
• Packaging Dimensions (W x H x D): 2,080 x 1,250 x 225 mm
• Packaging Weight: 44 kg

Media Player

• Supported Image Formats: JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
• Supported File Storage / File System: FAT16 / FAT32 @ USB 2.0
• Supported Video Formats: MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); WMV (H.264, Windows Media Video 9, max res 1080p@30Hz); Audio: LPCM, MP3, AAC, WMA 9/10
• Supported Audio Format: MP3 (max. bit rate 320 kbps)

Other Features

• Safety and Ergonomics: CE; Energy Star 8; FCC Class B; RCM; UKCA; UL/C-UL or CSA; VCCI
• Ecological Standards: EnergyStar 8.0
• Special Characteristics: CEC Support; HDMI ARC; NaViSet Administrator 2; Powered USB-Port; Scheduler; USB Media Player
• Colour Versions: Black Front Bezel, Black Back Cabinet
• Audio: Integrated Speakers (10 W + 10 W)
• Operating Hours: 16/7
• Remote Management: NaViSet Administrator 2

Shipping Content

• Display
• Power Cable
• Remote Control
• 2 x AAA batteries
• Cable Clamps
• Setup Manual

Downloads

• Product brochure

Part No.: PN-E869
