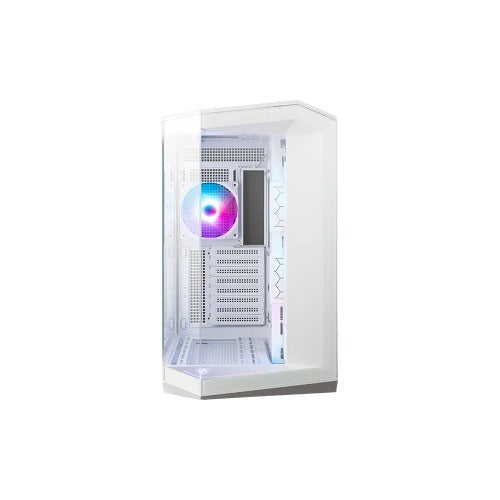

MSI MAG PANO 100R PZ WHITE Micro ATX Case, 2 x USB 5Gbps , 1x USB C 20Gbps, 1 x Audio-Out / Mic,, 3x 2.5', 2x 3.5', Micro ATX / Mini ITX

MSI MAG PANO 100R PZ WHITE Micro ATX Case, 2 x USB 5Gbps , 1x USB C 20Gbps, 1 x Audio-Out / Mic,, 3x 2.5', 2x 3.5', Micro ATX / Mini ITX(NEW)

CASE FORM FACTOR Mid Tower

MOTHERBOARD FORM FACTOR SUPPORT Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX

I/O PORTS

1 x USB 20Gbps Type-C

2 x USB 5Gbps Type-A

1 x Audio-Out / Mic-in

1 x LED Switch Button

1 x Power Button

DRIVE MOUNT SUPPORT 3 x 2.5' 2 x 2.5'/3.5' combo

EXPANSION SLOTS 8

MAXIMUM GPU LENGTH 380 mm / 14.96 inches

MAXIMUM CPU COOLER HEIGHT 166 mm / 6.54 inches

POWER SUPPLY SUPPORT ATX

MAXIMUM PSU LENGTH 200 mm / 7.87 inches

FAN SIZE SUPPORT

Top: 3 x 120 mm / 3 x 140 mm

Front: NA

Rear: 1 x 120 mm

Side: 3 x 120 mm / 2 x 140 mm

Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm

PRE-INSTALLED FAN SIZE Side: 3 x 120 mm Rear: 1 x 120 mm

PRE-INSTALLED FAN TYPE Side: 3 x ARGB Reverse-blade Rear: 1 x ARGB

RADIATOR SIZE SUPPORT

Top: 120 / 240 / 360 mm

Front: NA

Rear: 120 mm

Side: 120 / 240 / 360 mm

Bottom: 120 / 240 / 360 mm

DIMENSIONS (DXWXH)

518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches

Warranty: 12 months

Part No.: MAG PANO 100R PZ WHITE
