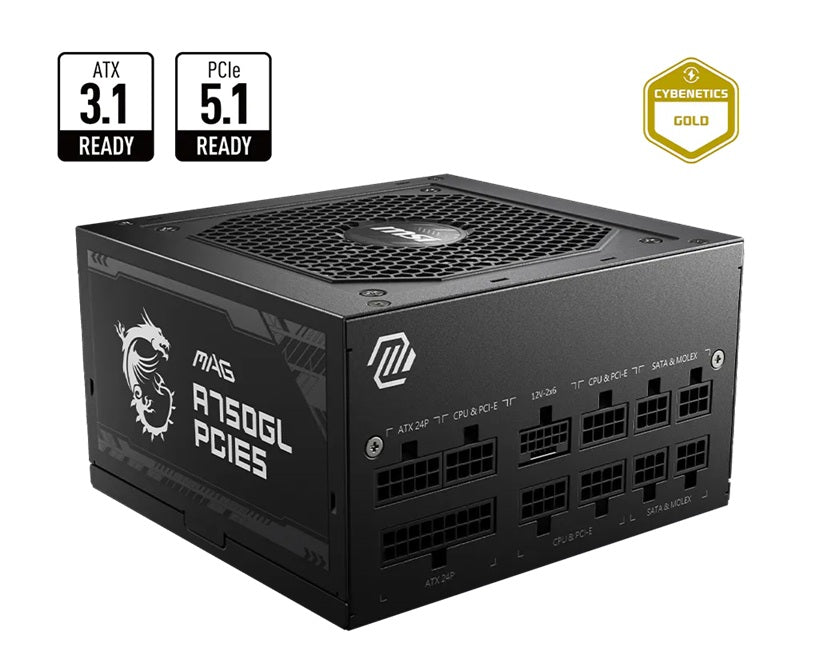

MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm

(Bulk Pack)

MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm

•ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable

•Supports NVIDIA® GeForce RTXTM 40 Series graphics cards

•Full modular design,Flat cables

•80 Plus Gold certified for high efficiency

•Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

•120mm Fluid Dynamic Bearing Fan

•LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS

Efficiency Rating: 80 PLUS Gold (up to 90%)

Modular: Yes (full modular)

Fan Size: 120 mm

Fan Bearing: Fluid Dynamic Bearing

Dimensions (DxWxH): 140 x 150 x 86 mm

PFC Type: Active PFC

Input Voltage Range: 100~240 VAC

Power Watt: 750W

Power Excursion: 1500W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range: 47-63Hz

Protection: OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 pin): 1

EPS (4+4 pin): 2

PCI-E 5.0 (16 pin): 1 (450W)

PCI-E (6+2 pin): 3

SATA (15 pin): 8

PERIPHERAL (4 pin): 4

FDD (4 pin): 1

Warranty: 120 months

Part No.: MAG A750GL PCIE5 II Bulk
