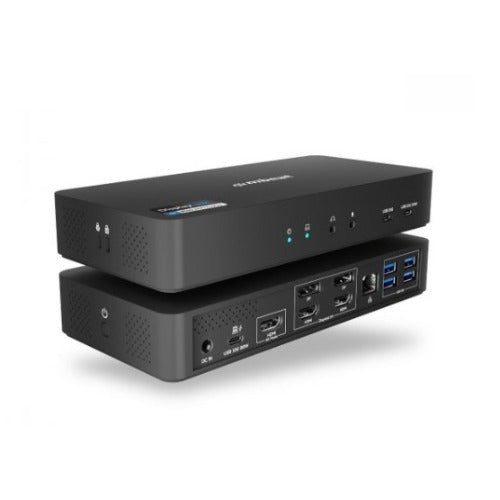

mbeat® mbeat USB-C Triple 4K Display Docking Station Triple 4K@60Hz 1 × HDMI 2.0 Host Port: 1 × USB-C 10Gbps 2 × USB-C 10Gbps 4 × USB-A 5Gbps

mbeat® mbeat USB-C Triple 4K Display Docking Station Triple 4K@60Hz 1 × HDMI 2.0 Host Port: 1 × USB-C 10Gbps 2 × USB-C 10Gbps 4 × USB-A 5Gbps

Specifications:

Input:

• Host Port: 1 × USB-C 10Gbps upstream with PD passthrough (up to 96W)

Output:

• Video Outputs:

– 1 × HDMI 2.0 (USB-C DP-Alt)

– 2 × DP 1.2 /HDMI 2.0 (DisplayLink®)

• Maximum Resolution: Triple 4K@60Hz

• USB Ports:

– 2 × USB-C 10Gbps (1 with 20W PD charging)

– 4 × USB-A 5Gbps

• Networking: 1 × RJ45 Gigabit Ethernet

• Audio: 3.5 mm headphone jack & microphone jack

• Security & Control: K-Lock slot, power on/off button

• Power: 135W power adapter included

Note: Supplies power to the dock, peripherals, and laptop charging through PD passthrough (up to 96W ±5%). If your laptop requires more than 100W (e.g., 140W high-performance laptops), the dock still delivers up to 96W, which may result in slightly slower charging performance under peak load.

Product and Package:

• Product Dimensions: 202.85mm × 95mm × 32.6 mm

• Product Weight: 0.37kg

• Cable Included: 1m

• Package Dimensions: 255mm × 130mm × 89.5 mm

• Package Weight: 1.13kg

• Package Contents: USB-C Triple 4K Docking Station, USB-C to C Cable, 135W Power Adapter, Instruction Manual, Product Registration Card

Compatible OS:

• Windows: 7 / 8.1 / 10 / 11

• Mac: macOS 10.14 Mojave / 10.15 Catalina / 11 Big Sur / 12 Monterey / 13 Ventura / 14 Sonoma (M1/M2/M3 supported)

• Linux: Ubuntu 20.04+ / Fedora 34+ / Debian 11+

• Chrome OS: R55+ / Chromebooks since Jan 2015 (Exynos & Tegra models excluded)

• Android: 5.0 Lollipop+

Compatibility and Limitation:

• Works with USB-C laptops that support DP-Alt mode, including MacBook Pro / Air (M1, M2, M3 series); Dell® XPS series; ThinkPad X / T series; HP® EliteBook & Spectre series; Microsoft® Surface devices with USB-C; Other major USB-C laptops supporting DisplayPort Alt Mode.

• A DisplayLink® driver must be installed on your laptop or PC before the dock can function. Once installed, the dock works as plug and display. Drivers are available at https://www.synaptics.com/products/displaylink-graphics/downloads or via the user manual. Be sure to download the correct version for your operating system.

• Your laptop must support USB-C DP-Alt mode to enable triple-display functionality, this dock reduces desk clutter, simplifies your setup, and boosts overall productivity, making it a versatile hub for nearly any workspace.

Warranty: 12 months

Part No.: MB-DOCK-HDL18
