Maxhub WT15M - WT15M Wireless Dongle

MAXHUB WT15M wireless dongle

Features

• Share your screen in stunning 4K: Crystal-clear 4K presentations, ultra-low latency for smooth, responsive, synced screen sharing.

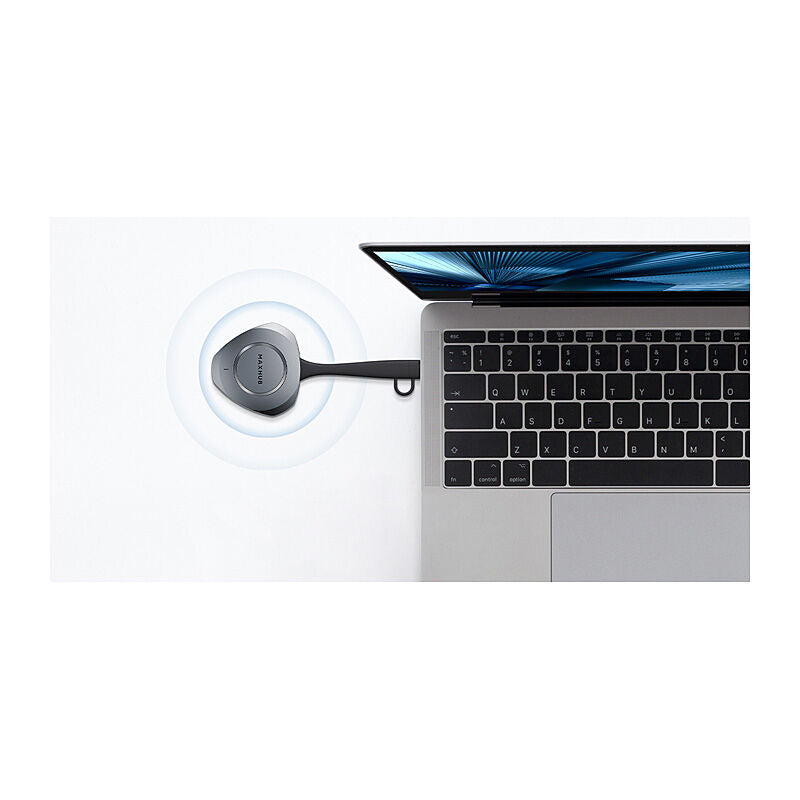

• Plug and play in 3 seconds: Simply plug the dongle into your laptop and start sharing within 3 seconds.
• 1080P Wireless BYOD: Wirelessly connect personal devices to room cameras, mics and speakers. 1080P BYOD hardware decoding boosts transmission bitrate by 50% for stable, pro-grade conferencing.
• Enterprise-grade security: AES 128-bit multi-layered encryption, dynamic key negotiation and multi-factor authentication for independent connection security.

Specifications

Interface

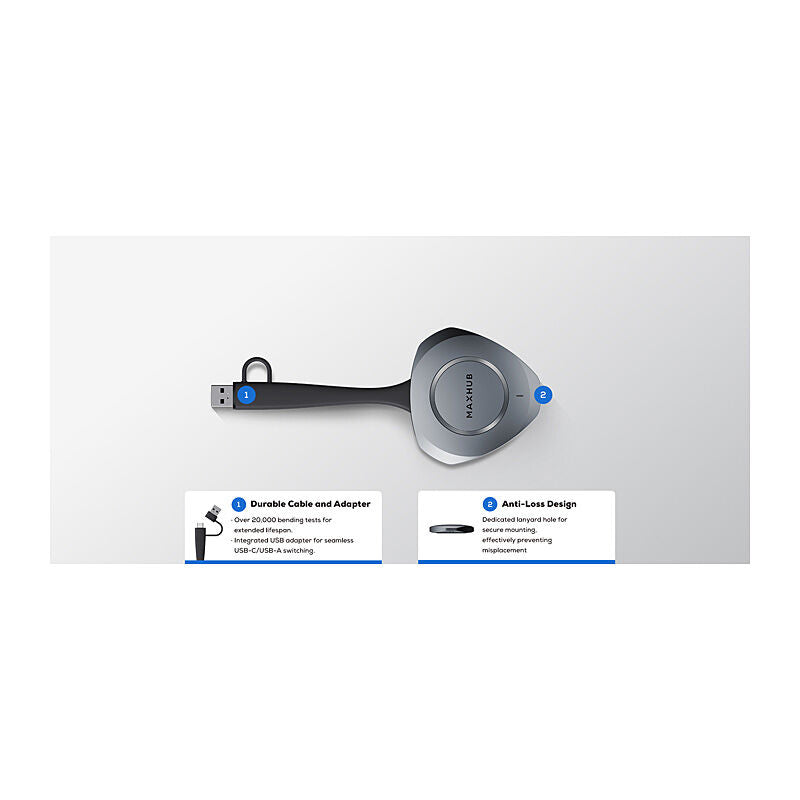

• USB Type-C: ×1
• USB Type-A (Adapter): ×1

Performance

• Wireless Connection Range (Max.): 12 m / 39 ft
• Supported Operating Systems: Windows 7/10/11, macOS 10.12 or later
• Startup Time: ≥ 3s (USB-C), ≥ 10s (USB-A)
• Disconnect Time: ≥ 5s
• Transmission Latency (1080P): ≥ 90 ms
• Wireless Screen Sharing Resolution (Max.): 3840 × 2160@30 Hz
• Wireless BYOD Resolution (Max.): 1920 × 1080@30 Hz
• Wireless BYOD: Only WT15M supports BYOD
• Touchback Control: Supported

Wi-Fi

• Wi-Fi Standard: 802.11a/n/ac
• Wi-Fi Frequency: 5G Hz

Power

• Power Supply: 5 V@500 mA
• Power Consumption: ≤2.5 W

Physical Specification

• Dimension (L×H×D): 182.5 × 15.4 × 76.1 mm
• Shipping Dimension (L×H×D) – 1pc: 196 × 28 × 110 mm
• Shipping Dimension (L×H×D) – 60pcs: 420 × 350 × 360 mm
• Net Weight: 73 g
• Gross Weight – 1pc: 230 g
• Gross Weight – 60pcs: 15.4 kg

Indicator Light

• Connecting to Endpoint – Flash White: The dongle is starting up
• Connecting to Endpoint – Flash Blue: Pairing/Updating
• Connecting to Endpoint – Solid Blue: Paired successfully
• Connecting to Endpoint – Solid Red: Failed to pair
• Connecting to Laptop – Flash White: Pairing
• Connecting to Laptop – Solid White: Paired successfully
• Connecting to Laptop – Solid Green: Sharing the screen

Environment

• Operating Temperature: 0?~40?
• Storage Temperature: -20?~60?
• Operating Humidity: 10%~90%RH
• Storage Humidity: 10%~90%RH
• Altitude: Below 5000 meters

Downloads

• Product brochure

Part No.: WT15M
