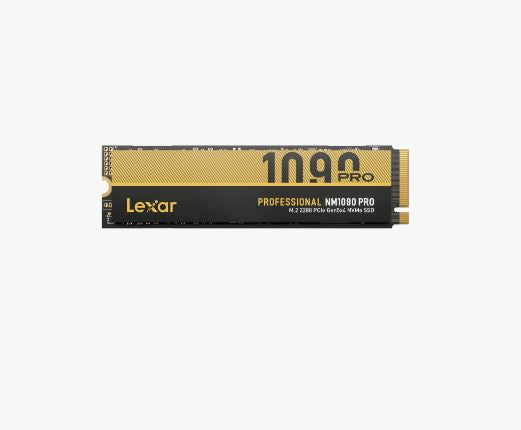

Lexar LNM109P001T-RNNNG Internal SSD NM1090 PRO PCIe 5.0 1TB,up to 14,000MB/s read, 10,000MB/s write M.2 2280 - 5 year limited warranty

Lexar LNMPLYX001T-RNNNG Internal SSD PLAY X PCIe 4.0 1TB,up to 7400MB/s read, 6400MB/s write M.2 2030, M.2 2230, M.2 2280

Capacity

1TB, 2TB, 4TB, 8TB

Form Factor

M.2 2280

Interface

PCIe Gen 5x4

Speed

1TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 10,000MB/s1, random read up to 1650K IOPs, random write up to 1800K IOPs

2TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1800K IOPs

4TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1700K IOPs

8TB: Sequential read speed up to 14,400MB/s1, sequential write speed up to 13,400MB/s1, random read up to 2000K IOPs, random write up to 2100K IOPs

Dram Capacity

1TB: 2GB, 2TB: 2GB, 4TB: 4GB, 8TB: 8GB

Operating Temperature

0° to 70° C (32°F to 158°F)

Storage Temperature

-40° to 85° C (-40°F to 185°F)

Shock Resistant

1500G, duration 0.5ms, Half Sine Wave

Vibration Resistant

10~2000Hz, 1.5mm, 20G, 1Oct/min, 30min/axis (X,Y,Z)

TBW

1TB: 700TBW, 2TB: 1400TBW, 4TB: 2800TBW, 8TB: 5600TBW

MTBF

1,500,000 Hours

Dimension (W x L x H)

1TB-2TB: 80 x 22 x 3.6 mm (3.15' x 0.87' x 0.14')

4TB-8TB: 80 x 22 x 3.9 mm (3.15' x 0.87' x 0.15')

Weight

1TB-2TB：8g / 0.017lbs

4TB: 8.5g / 0.019 lbs

8TB: 9.6g / 0.021 lbs

Warranty

Five-year limited warranty

Warranty: 60 months

Part No.: LNM109P001T-RNNNG
