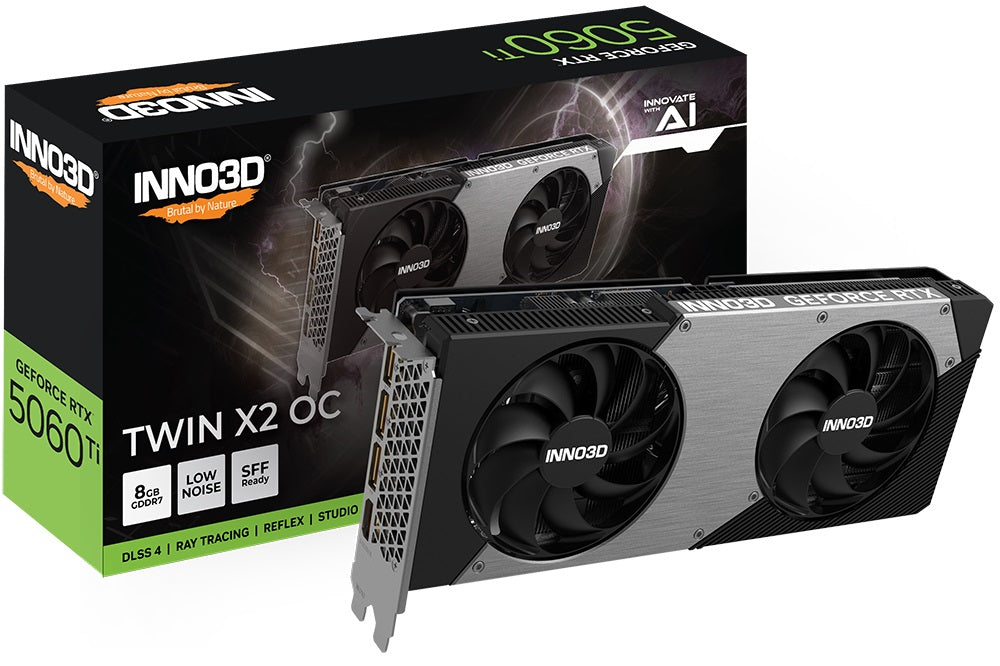

INNO3D nVidia GeForce RTX 5060 Ti TWIN X2 OC 8GB GDDR7, 2602MHz Boost Clock, RAM 28Gbps, 3xDP, 1xHDMI, 250x116x41mm

INNO3D nVidia GeForce RTX 5060 Ti TWIN X2 16GB GDDR7, 2572MHz Boost Clock, RAM 28Gbps, 3xDP, 1xHDMI

GPU Engine Specs

CUDA Cores 4608

Boost Clock (MHz) 2602MHz

Base Clock (MHz) 2235MHz

Thermal and Power Spec

Minimum System Power Requirement (W) 650W

Supplementary Power Connectors 1x PCIe 8-pin cables

Memory Specs

Memory Clock 28Gbps

Standard Memory Config 8GB

Memory Interface GDDR7

Memory Interface Width 128-bit

Memory Bandwidth (GB/sec) 448 GB/sec

Feature Support

Real-Time Ray Tracing Yes

Ray Tracing Cores 4th Generation, 72 TFLOPS

Tensor Cores 5th Generation, 759 AI TOPS

NVIDIA Architecture Blackwell

Microsoft DirectX 12 Ultimate

NVIDIA DLSS 4

NVIDIA Ansel Yes

NVIDIA FreeStyle Yes

Bus Support PCI Express Gen 5

NVIDIA ShadowPlay Yes

OS Certification Windows 11 / 10, Linux, FreeBSDx86

NVIDIA Highlights Yes

NVIDIA G-SYNC™-Ready Yes

Game Ready Drivers Yes

NVIDIA Studio Drivers Yes

NVIDIA GPU Boost™ Yes

Vulkan API 1.4

OpenGL 4.6

NVIDIA Encoder 1x Ninth Generation

NVIDIA Decoder 1x Sixth Generation

Accessories

Graphics Card Dimensions Length 250mm Height 116mm Width 41mm

Display Support Multi Monitor up to 4

Maxmium Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC

HDCP 2.3

Standard Display Connectors 3x DisplayPort 2.1b, 1x HDMI 2.1b

Warranty: 36 months

Part No.: N506T2-08D7X-193075N
