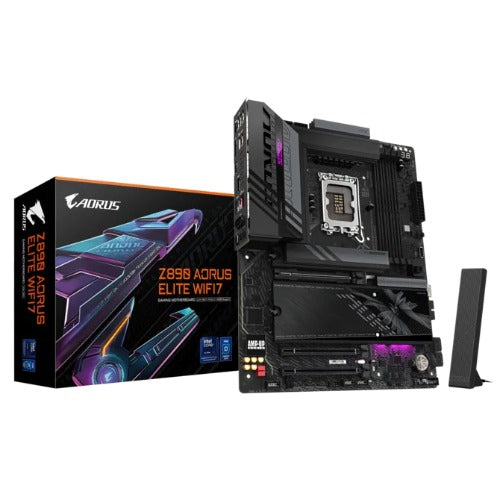

Gigabyte Z890 AORUSELITE WF7 P MB Intel LGA 1851 ATX Motherboard, 4x DDR5 ~256GB, 3x PCI-E x16, 4x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0

Gigabyte Z890 AORUSELITE WF7 Intel LGA 1851 ATX Motherboard, 4x DDR5 ~256GB, 3x PCI-E x16, 4x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0

Specification:

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors

L3 cache varies with CPU

Chipset

Intel® Z890 Express Chipset

Memory

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Audio

Realtek® ALC1220 CODEC

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Back Panel Connectors

1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x antenna connectors (2T2R)

1 x DisplayPort (Note)

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Warranty: 36 months

Part No.: Z890 A ELITE WIFI7 P 1.0
