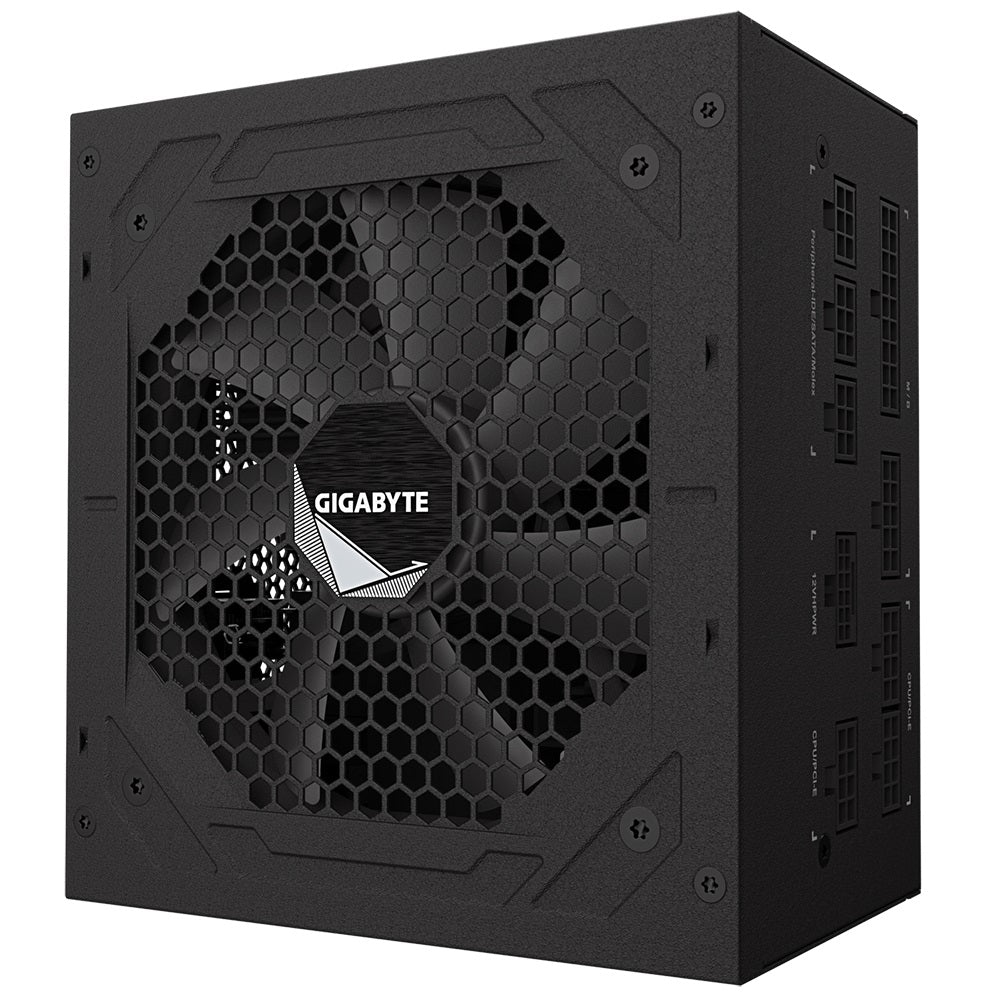

Gigabyte UD850GM PG5 2.0 850W ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours

Gigabyte UD850GM PG5 2.0 850W ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours

Key Features:

Ultra Durable

Main Japanese capacitors

Enhanced thermal solution

120mm smart hydraulic bearing (HYB) fan

OVP/OPP/SCP/UVP/OCP/OTP protection

Support PCle Gen 5.0 graphics cards

Support Intel ATX 3.0 standard

80 PLUS Gold certified

Fully modular design

Compact design

5 years warranty (Adjusted according to different regions)

Specification:

Model GP-UD850GM PG5

Type Intel Form Factor ATX 12V v3.0

PFC Active PFC (>0.9 typical)

Input Voltage 100-240 Vac (full range)

Input Current 12-6A

Input Frequency 60-50 Hz

Output Capacity 850W

Dimension 150 x 140 x 86 mm

Fan Type 120mm Hydraulic Bearing(HYB)fan

80 PLUS Gold

Efficiency 90% at typical load

MTBF >100,000 hours

Protection OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal 100-150ms

Hold Up Time >16ms

Cable Type Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 12+4 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

Warranty: 60 months

Part No.: GP-UD850GM-PG5-V2
