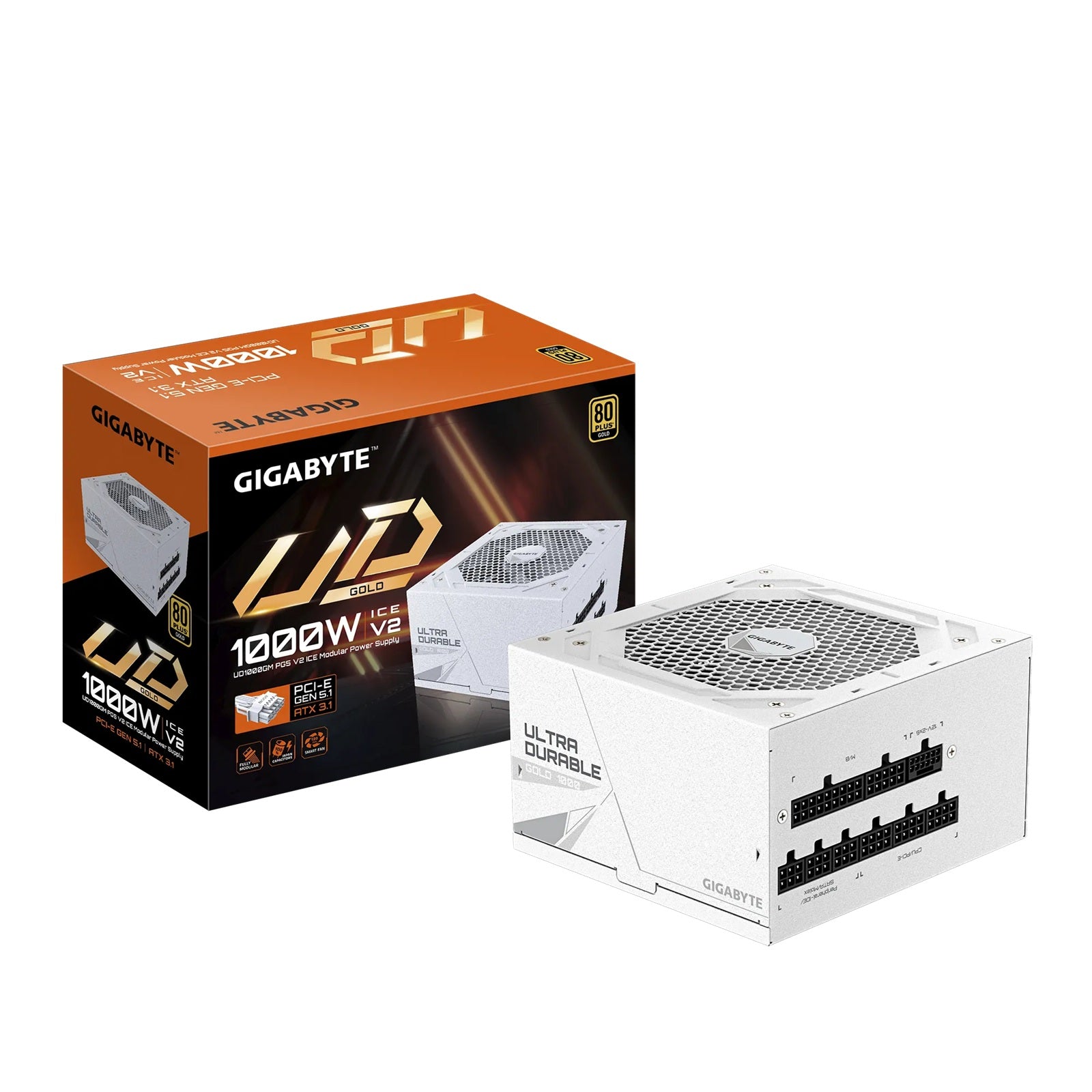

Gigabyte UD1000GM PG5 ICE 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs

Gigabyte UD1000GM PG5 ICE 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs

KEY FEATURE

Ultra Durable

Main Japanese capacitors

Enhanced thermal solution

120mm smart hydraulic bearing (HYB) fan

OVP/OPP/SCP/UVP/OCP/OTP protection

Support PCIe Gen 5.0 graphics cards

Support Intel ATX 3.0 standard

80 PLUS Gold certified

Fully modular design

Compact design

10 years warranty (Adjusted according to different regions)

SPECIFICATION:

Model GP-UD1000GM PG5

Type Intel Form Factor ATX 12V

PFC Active PFC (>0.9 typical)

Input Voltage 100-240 Vac (full range)

Input Current 15-6.5A

Input Frequency 60-50 Hz

Output Capacity 1000W

Dimension 150 x 140 x 86 mm

Fan Type 120mm Hydraulic Bearing(HYB)fan

80 PLUS Gold

Efficiency 90% at typical load

MTBF >100,000 hours

Protection OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal 100-150ms

Hold Up Time >16ms

Cable Type Flat, black

Connectors:

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

Warranty: 120 months

Part No.: GP-UD1000GM PG5 ICE
