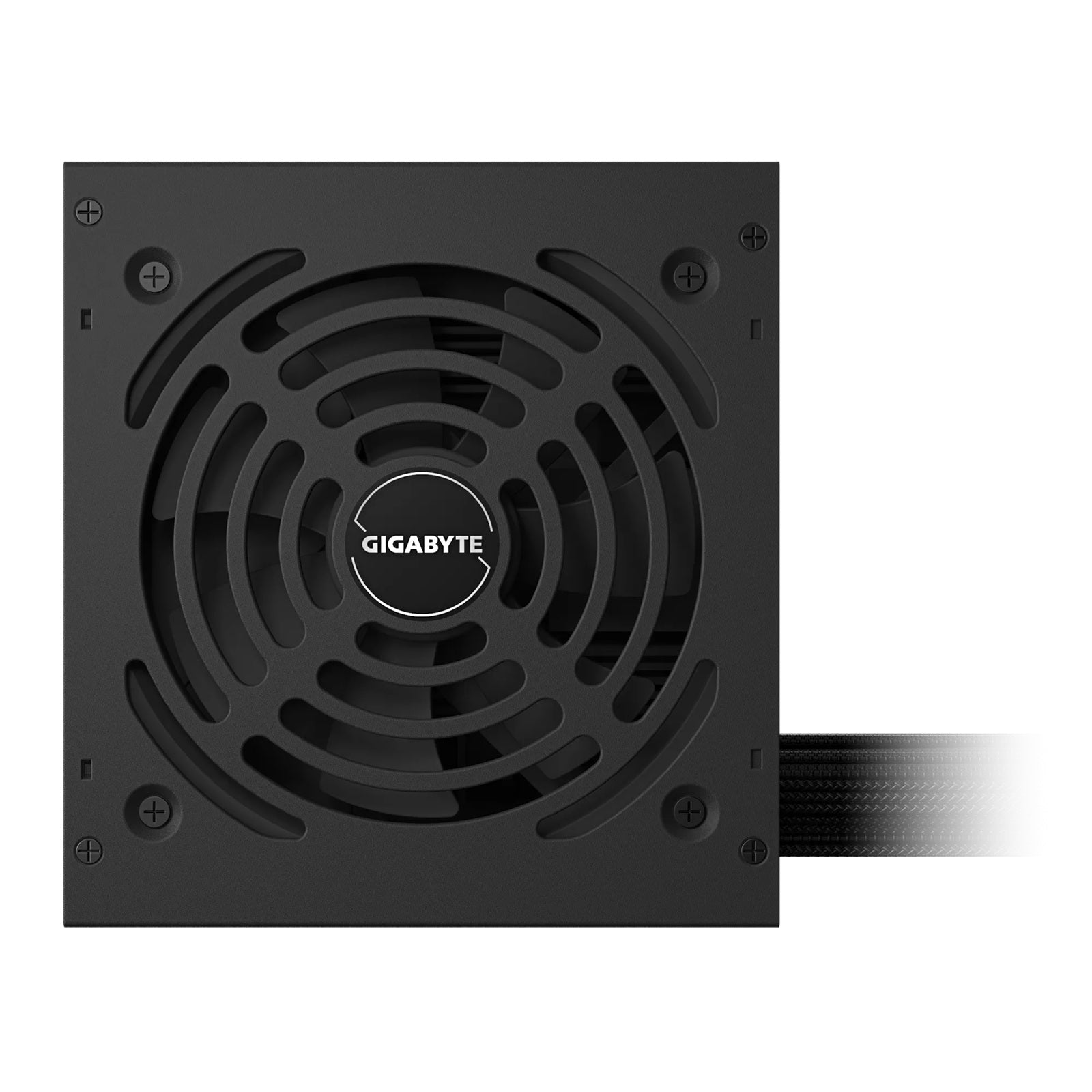

Gigabyte GP-P650G PCIE 5.1, 650W, ATX12V v3.1, 80+Gold, 90%, 120mm HYB, PFC>0.9, 100-240V, 10-6A, 60-50Hz, MTBF>100k, PCIe5.1

Gigabyte GP-P650G PCIE 5.1, 650W, ATX12V v3.1, 80+Gold, 90%, 120mm HYB, PFC>0.9, 100-240V, 10-6A, 60-50Hz, MTBF>100k, OVP/OPP/SCP/UVP/OCP/OTP, PCIe5.1

Specification

Model

GP-P650G PG5​

Type

Intel Form Factor ATX 12V v3.1

PFC

Active PFC(>0.9 typical)

Input Voltage

100-240 Vac

Input Current

10-6A

Input Frequency

60-50 Hz

Output Capacity

650W

Dimensions

150 x 140 x 86 mm

Fan Type

120mm HYB Fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protections

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>17ms

Cable Type

Embossed, All black

Connectors

ATX/MB 20+4 Pin x 1 : 600mm*1

CPU/EPS 4+4 Pin x 1 : 600mm + 150mm*1

PCI-e 16 Pin x 1: 500mm*1

PCI-e 6+2 Pin x 2 : 500mm+150mm*1

SATA x 6 : 420mm+150mm+150mm*2

4 Pin Peripheral x 3 : 420mm+150mm+150mm*1

Warranty: 36 months

Part No.: GP-P650G PG5
