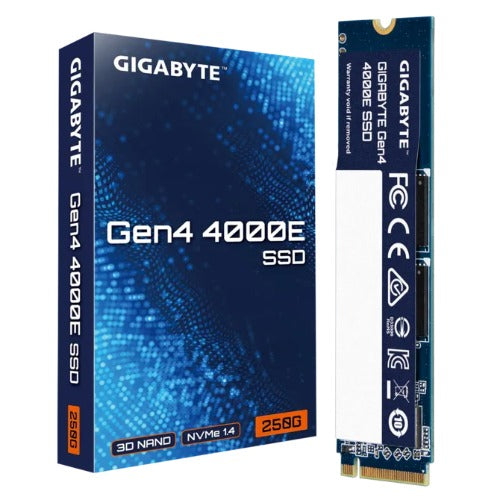

GIGABYTE Gen4 4000E 250GB NVMe PCIe 4.0 x4 M.2 2280 SSD, 3600MB/s Read, 3000MB/s Write, 1.5M Hours MTBF, 3-Year Warranty

GIGABYTE Gen4 4000E 250GB NVMe PCIe 4.0 x4 M.2 2280 SSD, 3600MB/s Read, 3000MB/s Write, 1.5M Hours MTBF, 3-Year Warranty

Specification

Interface

•PCI Express 4.0x4, NVMe 1.4

Form Factor

•M.2 2280

Total Capacity

•500GB

External DDR Cache

•N/A

Sequential Read speed

•Up to 3600 MB/s

Sequential Write speed

•Up to 3000 MB/s

Dimension

•22 x 2.3 x 80 mm

Mean time between failure (MTBF)

•1.5 million hours

Max. Operating Power

•Read: 4300mW

•Write:4400mW

Power Consumption (Idle, PS3)

•40mW

Power Consumption(PS4, L1.2)

•5mW

Temperature (Operating)

•0°C to 70°C

Temperature (Storage)

•-40°C to 85°C

Warranty

1. Limited 3 years or 300TBW.

2. Limited warranty based on 3 years or 300TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the ''Percentage Used'' (SMART ID: 05) in SMART page of ''GIGABYTE SSD toolbox'' reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

• Speeds based on internal testing. Actual performance may vary.

• 1GB = 1 billion bytes. Actual useable capacity may vary.

Warranty: 36 months

Part No.: G440E250G M.2 250GB
