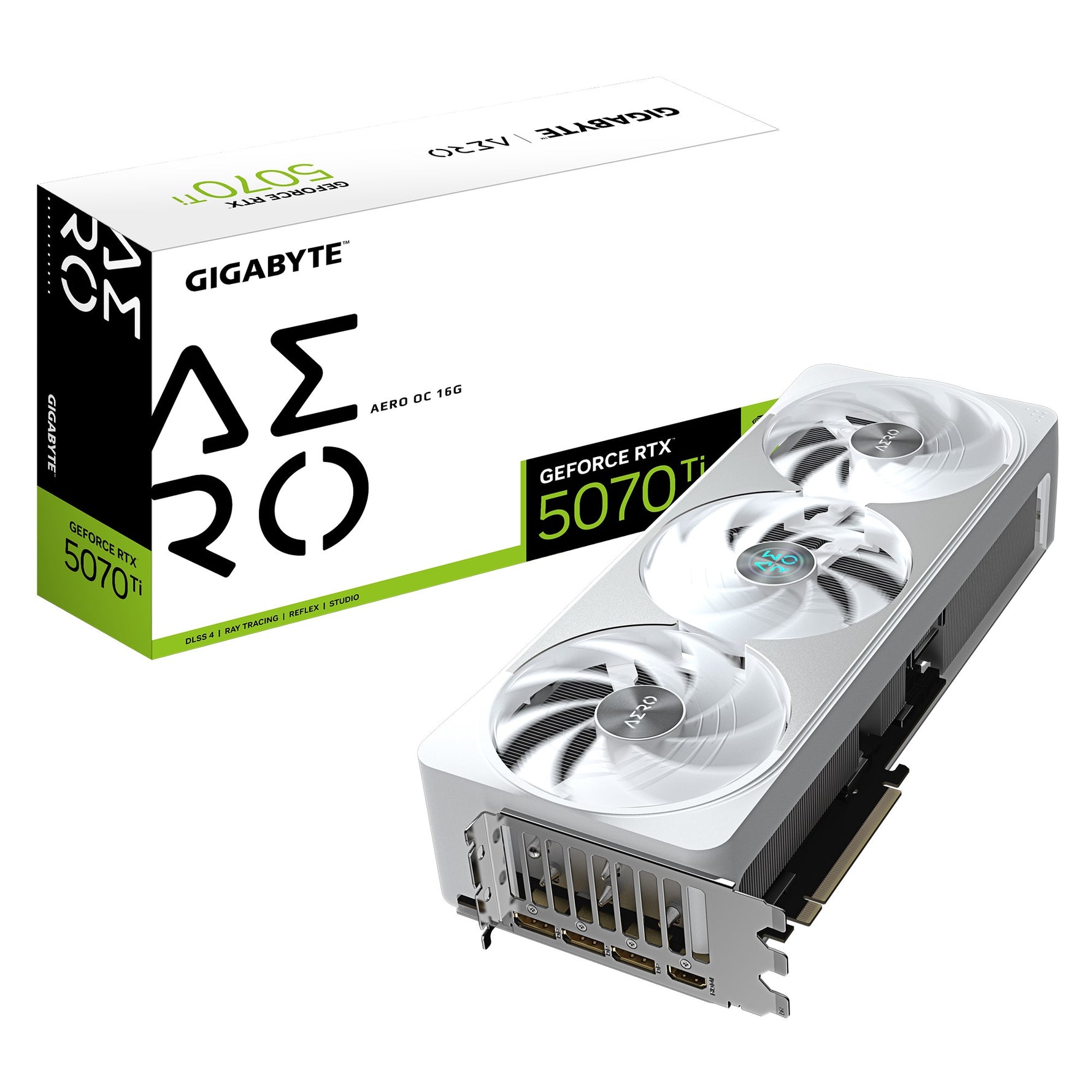

Gigabyte GeForce RTX™ 5070 Ti AERO OC 16G, 2588 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b x3 HDMI 2.1b x1

Gigabyte GeForce RTX™ 5070 Ti AERO OC 16G, 2588 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b x3 HDMI 2.1b x1

SPECIFICATION

Graphics Processing

GeForce RTX™ 5070 Ti

Core Clock

2588 MHz (Reference: 2452 MHz)

CUDA® Cores

8960

Memory Clock

28 Gbps

Memory Size

16GB

Memory Type

GDDR7

Memory Bus

256 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680 x 4320

Multi-view

4

Card size

L=340 W=140 H=70 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

OpenGL 4.6

Recommended PSU

750W

Power Connectors

16 pin*1

Output

DisplayPort 2.1b x3

HDMI 2.1b x1

Accessories

1. VGA manual

2. Warranty notice

3. 1x 12V-2x6 to 3x PCIe 8pin adapter

4. Versatile VGA holder

5. Versatile VGA holder manual

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX™ 5070 Ti

Integrated with 16GB GDDR7 256bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade thermal conductive gel

RGB Lighting

Dual BIOS (Performance / Silent)

Reinforced structure

Versatile VGA holder

4 years warranty (Online registration required)

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.

RGB LIGHTING

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Warranty: 36 months

Part No.: GV-N507TAERO OC-16GD
