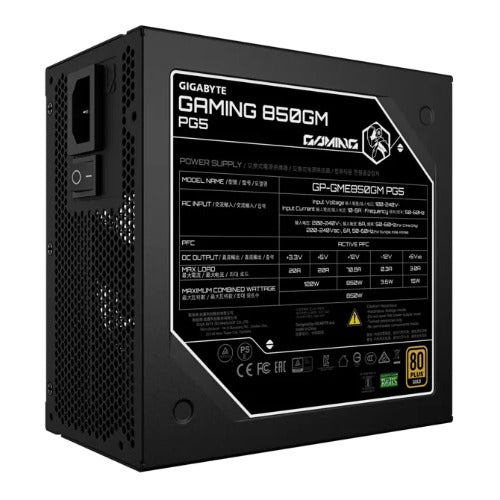

GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM

GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM

Model

GP-GME850GM PG5

Type

Intel Form Factor ATX 12V v3.1

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac

Input Current

10-5A

Input Frequency

50-60 Hz

Output Capacity

850W

Dimensions

150 x 150 x 86mm

Fan Type

135mm FDB Fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protections

OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

Power Good Signal

100-150ms

Hold Up Time

>17ms(80% load)

Cable Type

Embossed, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm*2

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 : 600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

Warranty: 36 months

Part No.: GP-GME850GM PG5/PSU
