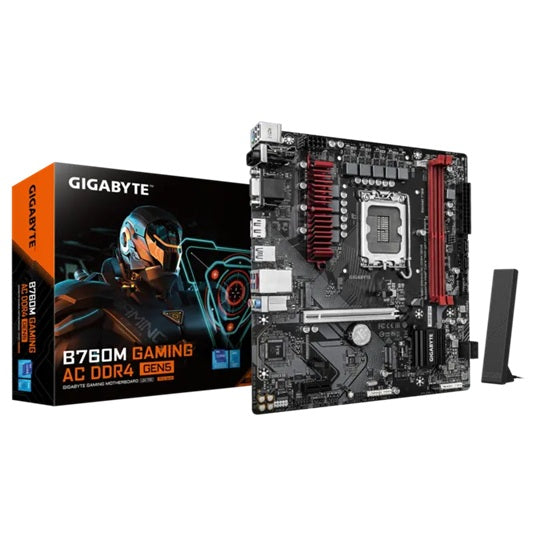

Gigabyte B760M GAMING AC DDR4 GEN5, Intel B760, LGA1700 12th–14th Gen, DDR4 64GB, PCIe 5.0 x16, Wi-Fi AC, 2.5GbE, M.2 PCIe 4.0

Gigabyte B760M GAMING AC DDR4 GEN5, Intel B760, LGA1700 12th–14th Gen, DDR4 64GB, PCIe 5.0 x16, Wi-Fi AC, 2.5GbE, M.2 PCIe 4.0

Specification:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

I/O Controller

iTE® I/O Controller Chip

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 22.5cm

Warranty: 36 months

Part No.: B760M G AC D4 GEN5
