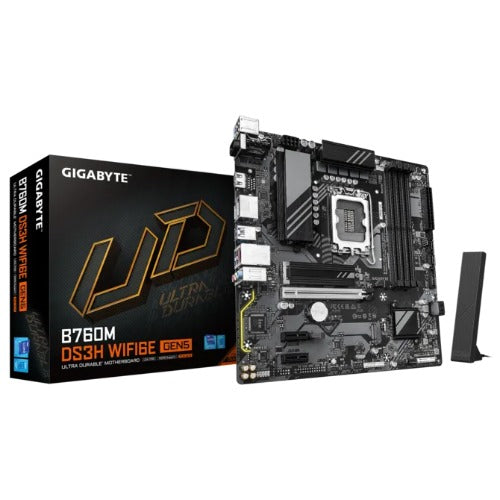

Gigabyte B760M DS3H WIFI6E GEN5 Intel LGA 1700 mATX Motherboard, 4x DDR5 ~256GB, 1x PCI-E x16, 2x M.2, 4x SATA, 5x USB 3.2, 6x USB 2.0

Gigabyte B760M DS3H WIFI6E GEN5 Intel LGA 1700 mATX Motherboard, 4x DDR5 ~256GB, 1x PCI-E x16, 2x M.2, 4x SATA, 5x USB 3.2, 6x USB 2.0

FEATURES:

PCIe Gen5 Performance : Perfect Sync to Win

Supports Intel® Core™ 14th/ 13th /12th processors

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.

EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design

PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution

Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support

Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax

Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors

Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI

Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Memory

14th and 13th Generation Intel® Core™ i9/i7 Processors:

- Support for DDR5 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:

- Support for DDR5 4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

Back Panel Connectors

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x antenna connectors (2T2R)

1 x HDMI port (Note)

2 x DisplayPorts (Note)

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty: 36 months

Part No.: B760M DS3H WF6E GEN5
