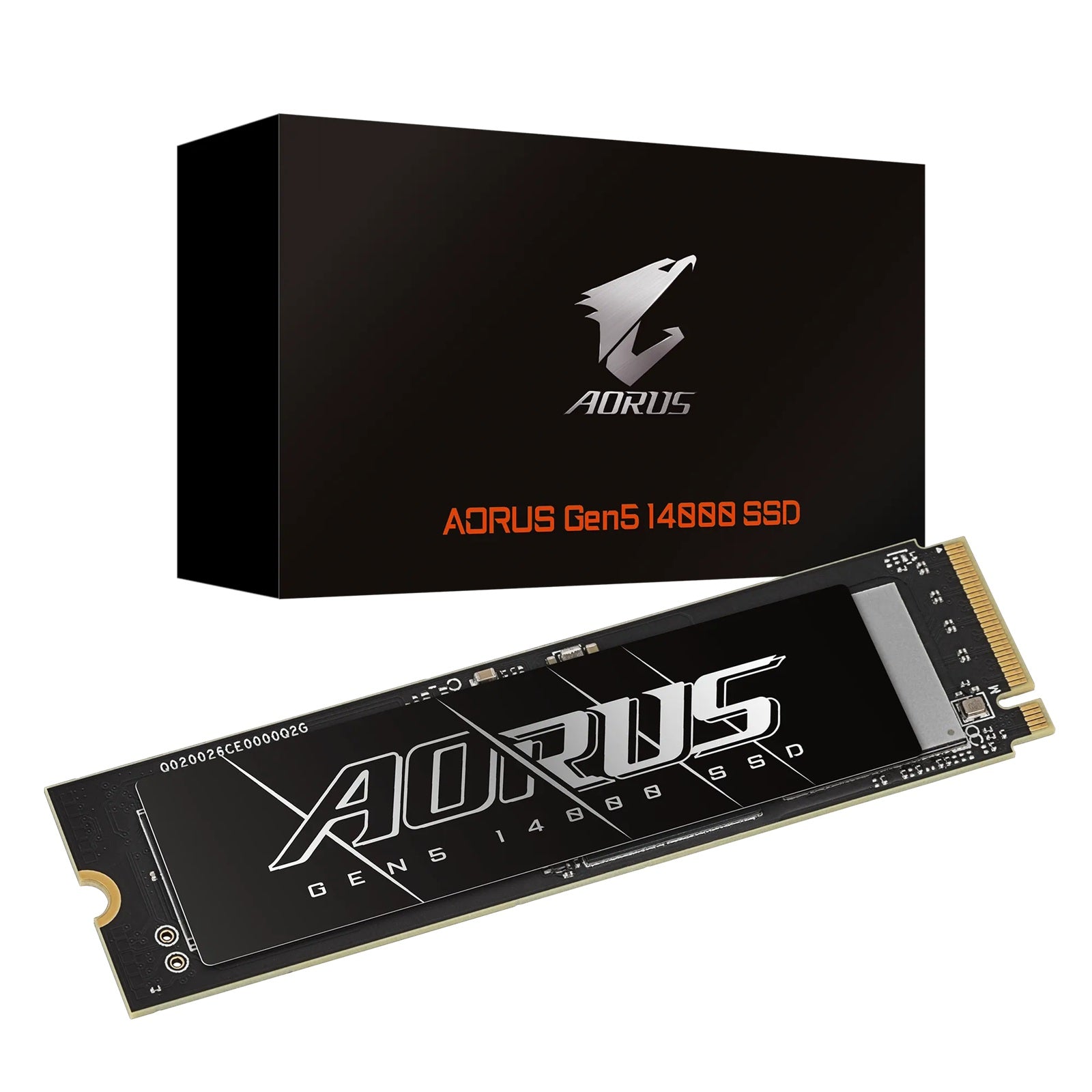

Gigabyte AORUS Gen5 14000 SSD 1TB PCIe5x4 NVMe2.0 M.2 3D TLC LPDDR4 2GB 13600/10200MB/s 80×22×3.5mm MTBF1.6M 11.5W 5yr/700TBW

Gigabyte AORUS Gen5 14000 SSD 1TB PCIe5x4 NVMe2.0 M.2 3D TLC LPDDR4 2GB 13600/10200MB/s 80×22×3.5mm MTBF1.6M 11.5W 5yr/700TBW

Interface PCI-Express 5.0x4, NVMe 2.0

Form Factor M.2 2280

Total Capacity 1000GB

NAND 3D TLC NAND Flash

External DDR Cache LPDDR4 2GB

Sequential Read speed Up to 13,600 MB/s

Sequential Write speed Up to 10,200MB/s

Dimension 80 x 22 x 3.5 mm

Mean time between failure (MTBF) 1.6 million hours

Max. Operating Power Read : 11.5W; Write : 11.5W

Power Consumption (Idle, PS3) < 144mW

Power Consumption(PS4, L1.2) < 85mW

Temperature (Operating) 0°C to 70°C

Temperature (Storage) -40°C to 85°C

Warranty

1. Limited 5-years or 700TBW.

2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

• Speeds based on internal testing. Actual performance may vary.

• 1GB = 1 billion bytes. Actual useable capacity may vary.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.

* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.

* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Warranty: 60 months

Part No.: SSD AG514K1TB M2 1TB 1.0
