ECOXGEAR Marine Single-DIN AM/FM Bluetooth Radio + 6.5" Speaker Kit

This kit pairs the ECOXGEAR SoundExtreme Marine DIN Radio with two 6.5" LEDCast marine-grade speakers, so the radio’s 200W peak (25W × 4 RMS) amplifier and built-in 4-zone LEDCast lighting controller have speakers to drive and light straight out of the box. The single-DIN radio is IP66 waterproof with AM/FM, Bluetooth and aux in, a daylight-readable 2.3" white LCD, one or two wired audio zones plus a wireless EcoCast zone, and a low-voltage alarm. The 2-way speakers are rated at 200W peak (65W RMS) each, are IP66 sealed and carry built-in addressable RGB LEDs that the radio controls directly. Compared with the radio on its own, the kit simply adds the two speakers. Built for boats, side-by-sides, ATVs and golf carts.

Key Features

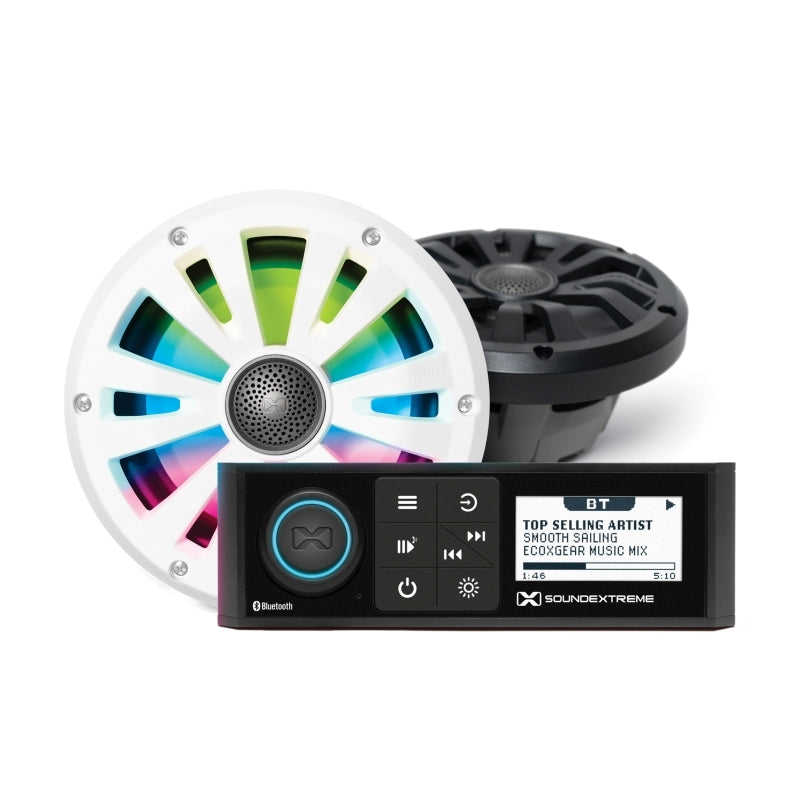

• Complete radio and speaker kit: the marine radio plus two 6.5" 2-way LEDCast marine speakers – wire the speakers to the radio’s amplifier and LED harness and the radio drives both the sound and the lighting

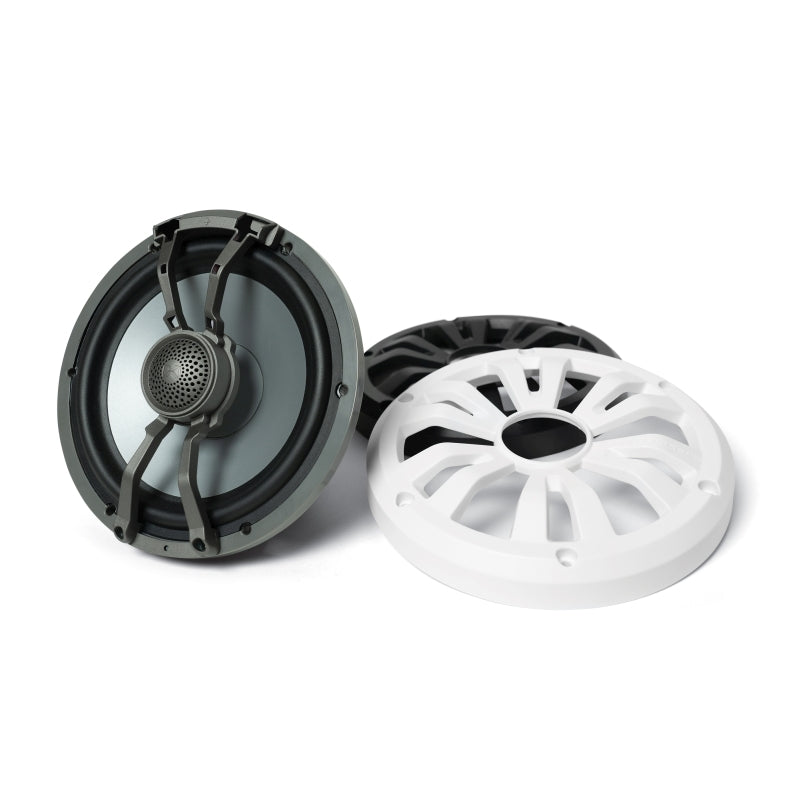

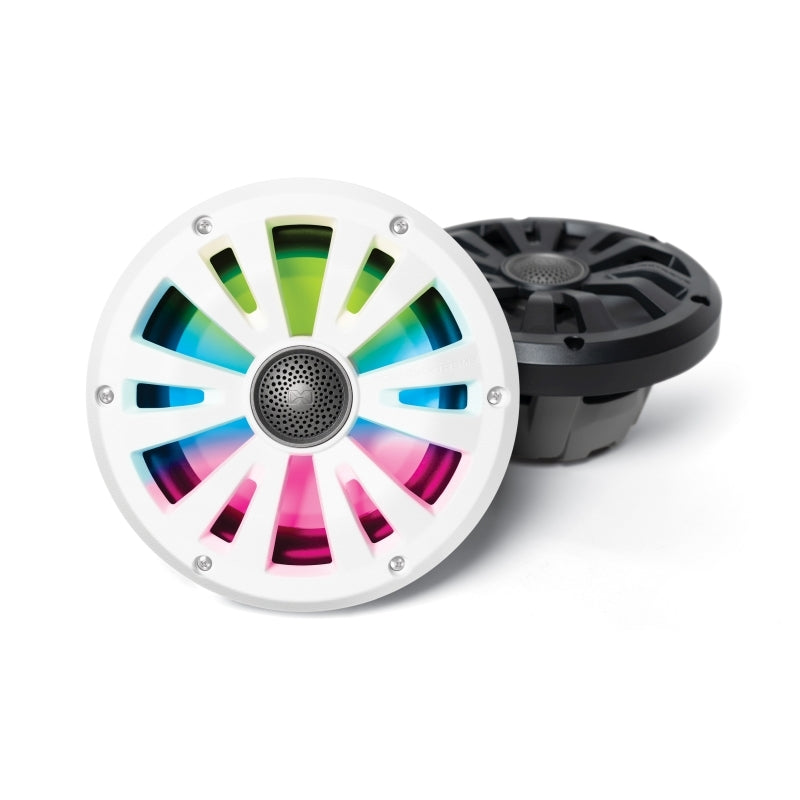

• 6.5" marine-grade speakers: 6.5" low and mid-range woofer and 1.5" titanium tweeter with a built-in 2-way crossover; 200W peak (65W RMS) each, 4 ohms, 92dB, IP66, in UV-resistant ASA enclosures with 316 stainless steel hardware
• 200W peak amplifier: 25W × 4 channels RMS with a built-in 3-band equaliser and an optional volume limiter
• AM/FM, Bluetooth and aux in: AM and FM tuner, Bluetooth streaming from your phone and a wired aux input, with line-out and subwoofer-out connections on the wiring harness
• Built-in 4-zone LED controller with LEDCast: lights the speakers’ addressable RGB LEDs straight from the radio’s display and runs extra LEDCast strips and whips (sold separately) – up to four zones adjusted independently or together, with the option to link lighting to the vehicle’s brake, reverse and indicator circuits
• Three audio zones with EcoCast: one or two wired zones plus a wireless EcoCast zone that streams the radio’s Bluetooth, AM/FM or aux audio to EcoCast-enabled ECOXGEAR soundbars, tower speakers and portable speakers; volume set per zone or together
• IP66 waterproof and UV resistant: hose the front panel down after a day out – built for salt water, fresh water, mud, sand and snow
• 2.3" white LCD and low battery alarm: daylight-viewable high-contrast display, plus built-in voltage detection that warns when the vehicle’s battery is getting low
• RF remote and SoundExtreme app: the included RF remote controls the core audio and lighting functions; the free app customises LED colours, speed, brightness, music sync and chasing effects
• Single-DIN mounting: fits a standard single-DIN opening; mounting kit, speaker/line-out/aux-in/sub-out and LED wiring harnesses and a 2.4m 12AWG power cable are included

Specifications

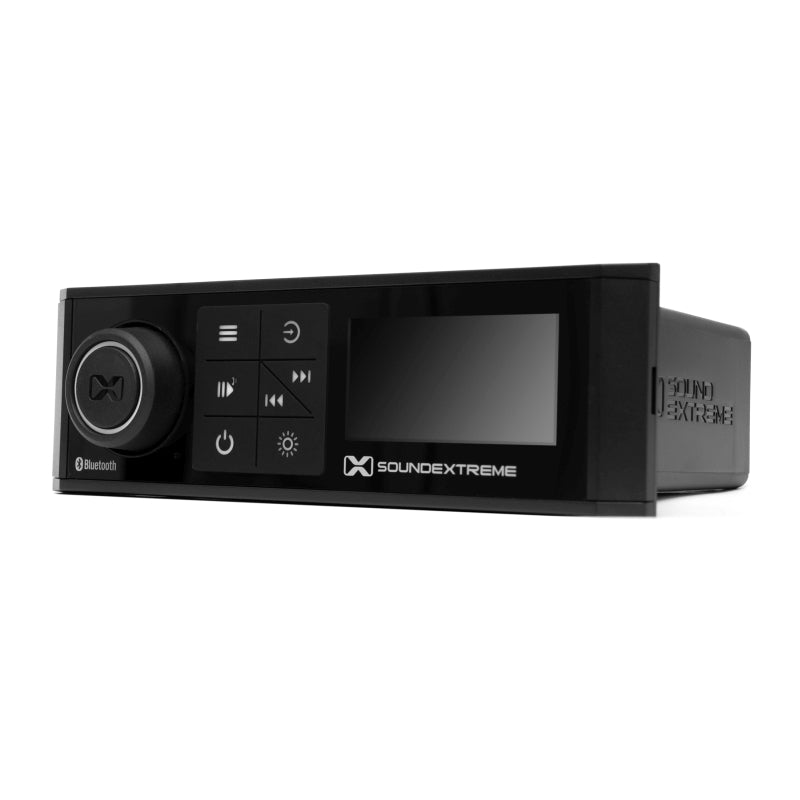

• Model: SoundExtreme Marine DIN Radio 6.5" Speaker Kit (SEI-MRN1DIN65AU)
• Form factor: single-DIN
• Amplifier output: 200W peak (25W × 4 channels RMS)
• Tuner: AM/FM
• Wireless: Bluetooth audio streaming, EcoCast wireless audio zone, RF remote, SoundExtreme app
• Audio zones: 1 or 2 wired + 1 wireless (EcoCast)
• Inputs & outputs: speaker outputs (4 channels), line out, aux in, sub out via wiring harness; 4-zone LED lighting output via LED harness
• LED controller: built-in 4-zone LEDCast controller with optional brake, reverse and indicator signal inputs
• Equaliser: 3-band, with optional volume limiter
• Display: 2.3" white LCD, daylight viewable
• Water & dust rating: IP66, UV resistant
• Power: 12V DC, 30A (10.5–16V DC operating range)
• Dimensions: 188mm W × 60mm H × 124mm D
• Weight: 0.59kg
• Speakers: 2 × 6.5" 2-way marine-grade speakers with built-in addressable RGB LEDs (LEDCast)
• Speaker power: 200W peak (65W RMS) each – 400W peak per pair
• Speaker drivers: 6.5" UV-protected polypropylene and carbon-fibre blend woofer with Santoprene rubber surround; 1.5" titanium tweeter; built-in 2-way crossover
• Speaker impedance: 4 ohms
• Speaker sensitivity: 92dB
• Speaker rating: IP66; ASA enclosures with 316 stainless steel hardware; waterproof audio and LEDCast jacks
• Speaker dimensions: 176mm diameter × 96mm deep; 1.04kg each

What’s in the Box

• 1 × Marine DIN radio with built-in LED controller
• 2 × 6.5" marine-grade LEDCast speakers
• 1 × wiring harness (speakers, line out, aux in, sub out)
• 1 × wiring harness (LED lighting control)
• 1 × RF remote control
• 1 × mounting kit
• 1 × 2.4m 12AWG power cable

Warranty: Backed by ECOXGEAR Australia's manufacturer warranty.

Part No.: SEI-MRN1DIN65AU
