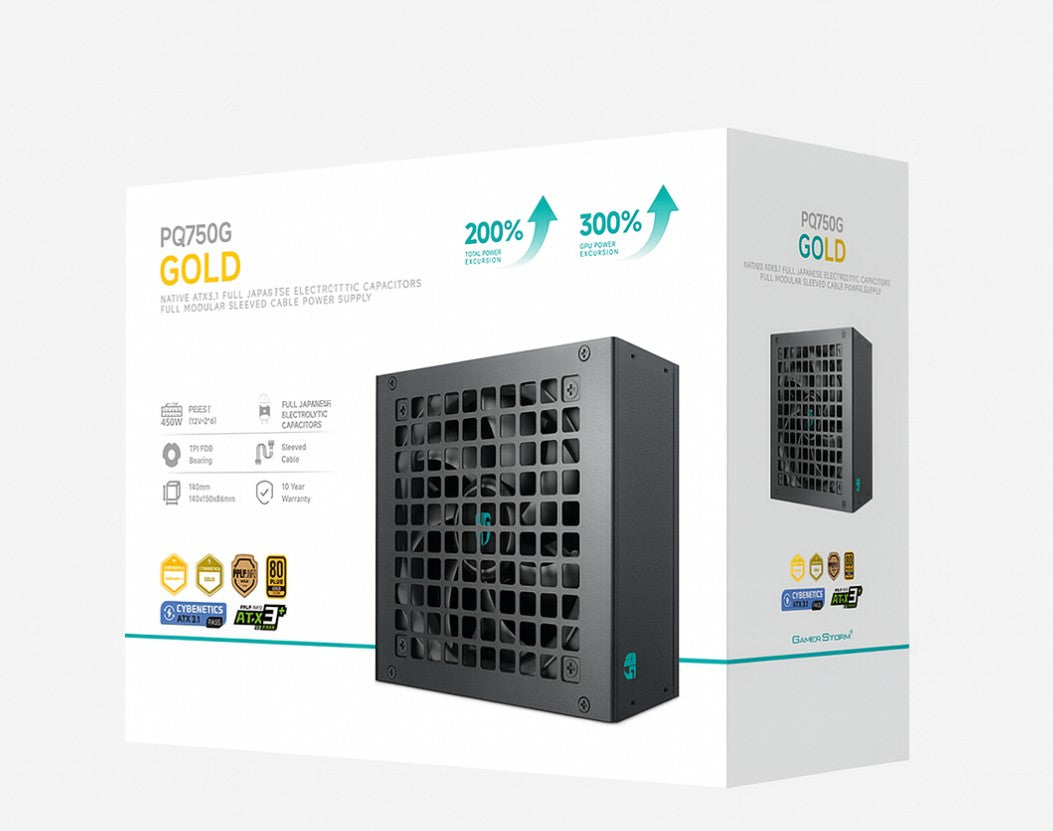

DeepCool PQ750G 750W Gamer Storm 80+ Gold/Cybenetics Fully Modular ATX Power Supply 120mm Fan, Japanese Capacitors, DC to DC, ATX12V V3.1,

DeepCool PQ750G

ENGINEERED

FOR MODERN COMPONENTSWith the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ750G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.

Total Output 750W

Type ATX12V V3.1

Product Dimensions 150×140×86mm (W x L x H)

Efficiency certification 80Plus Gold/Cybenetics Gold/PPLP Gold

Fan Size 120×120×25mm (W x L x H)

Fan Bearing FDB (Fluid Dynamic Bearing)

Topology Active PFC + Half Bridge SRC LLC + DC to DC

Capacitors Full Japanese Electrolytic Capacitors

Power Good Signal 100-150ms

Hold Up Time ≥16ms Full load

Efficiency ≥90% Under Typical Load(50% Loading)

Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature 0-40°C

Regulatory EAC

Erp Regulation ErP 2013

Environment Protection EAC

MTBF 100,000 Hours

Warranty: 120 months

Part No.: R-PQ750G-FD1B-JGAU-V1
