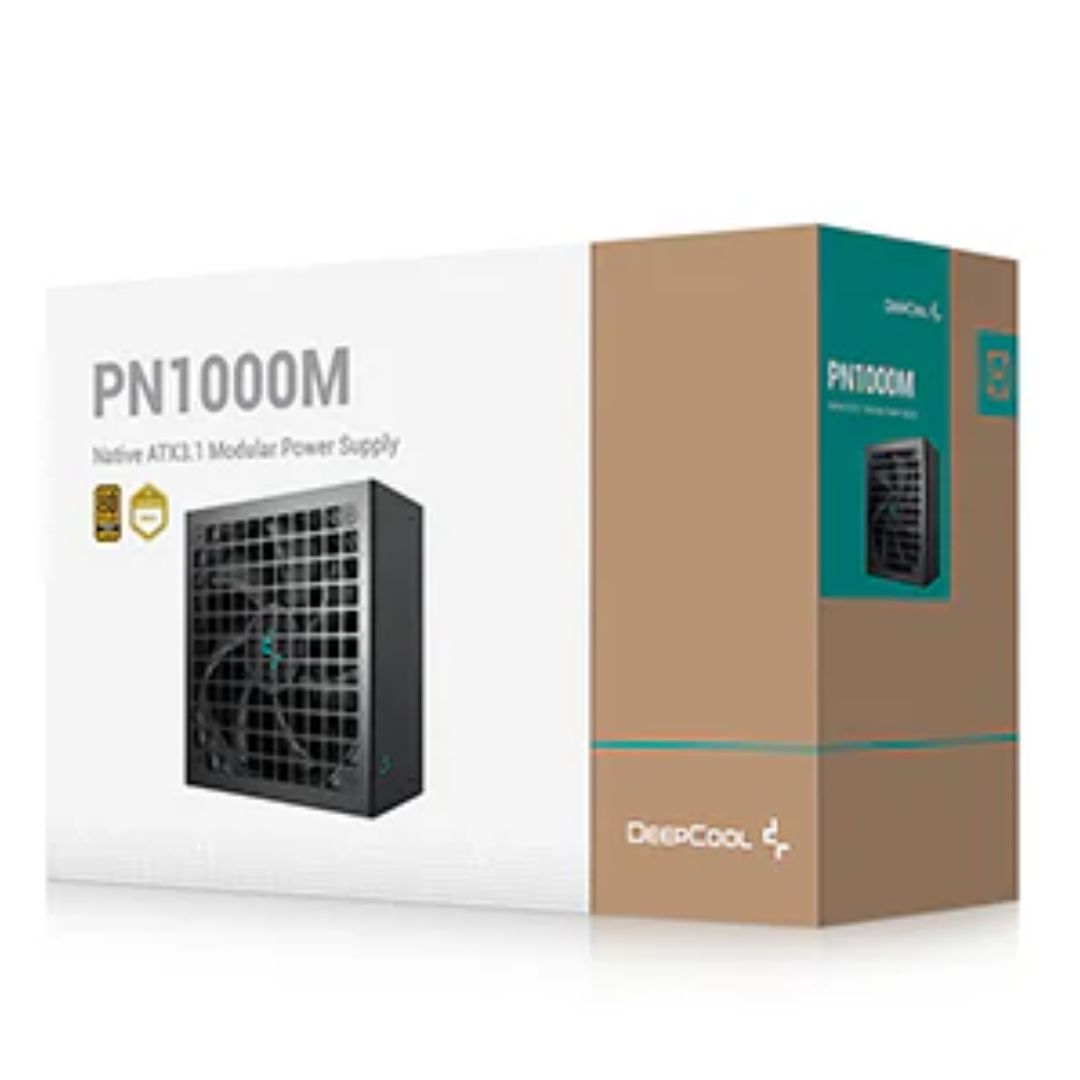

DeepCool PN1000M Gamer Storm 80+ Gold Black Fully Modular Power Supply, 135mm FDB Fan, Japanese Bulk Capacitor, ATX3.1, 12V-2x6 PCIe 5.1 Cable

PN1000MThe DeepCool PN1000M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN1000M provides stable power for a wide range of modern high-power components.

FUTURE PROOF

With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN1000M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

POWER YOU CAN TRUST

Through the use of a main Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC, and a DC-to-DC topology, the PN1000M can keep the hold-up time to ≥ 16 ms under a high load of 80%

PCI-E 5.1 POWER

Equipped with a high-grade 105C-resistant 16AWG copper-core 12V-2x6 cable, the PN1000M provides up to 600W for modern GPUs.

Type ATX12V V3.1

Product Dimensions 150×150×86mm (W x L x H)

Efficiency certification 80Plus Gold

Fan Size 135mmFan Bearing FDB (Fluid Dynamic Bearing)

Topology Active PFC + Half Bridge SRC LLC + DC to DC

Capacitors Japanese Bulk Capacitor

Power Good Signal 100-150ms

Hold Up Time ≥16ms(80% Load)

Efficiency ≥90% Under Typical Load(50% Loading)

Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature 0 - 40℃

Regulatory CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS

Erp Regulation ErP 2014

Environment Protection WEEE/中国 RoHS/Triman/P65

MTBF 100,000 Hours

Warranty: 120 months

Part No.: R-PNA00M-FC0B-JGAU
