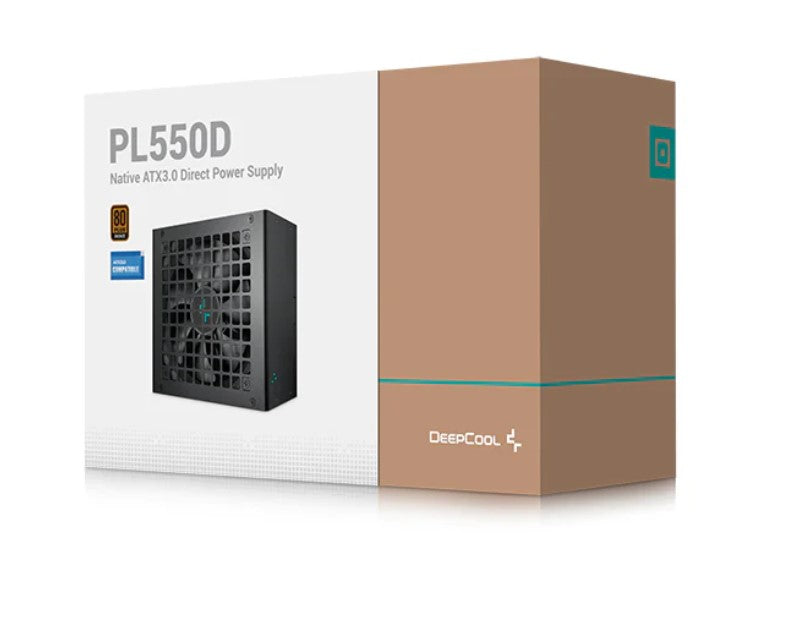

DeepCool PL550D 550W 80+ Bronze Certified Non-Modular ATX Power Supply(Direct Cable), 120mm Fan, DC to DC, ATX3.1, 100,000 MTBF, 85% Efficiency

PL550D

PL550DThe PL550D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

Technical Spec

Type ATX12V V3.0

Product Dimensions 150×140×86mm (W x L x H)

Efficiency certification 80Plus Bronze

Fan Size 120mm

Fan Bearing HYB(Hydro Bearing)

Topology Active PFC+DC to DC

Capacitors Chinese Electrolytic Capacitors

Power Good Signal 100-150ms

Hold Up Time ≥16ms

Efficiency ≥85% Under Typical Load(50% Loading)

Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature 0 - 40℃

Regulatory CE/FCC/CCC/RCM/EAC/

CAN ICES-003(B)/NMB-003(B) /TUV-RH

Erp Regulation ErP 2014

Warranty: 60 months

Part No.: R-PL550D-FC0B-AU-V2
