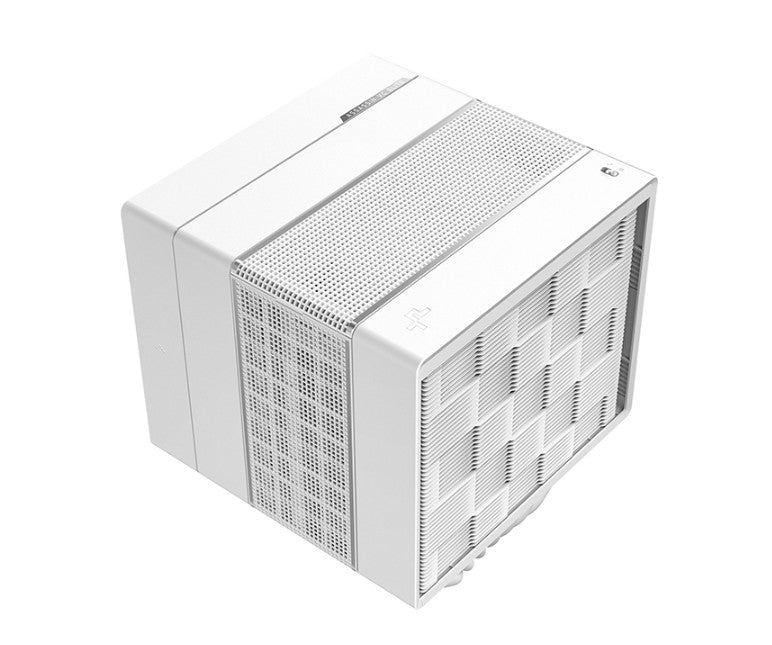

DeepCool ASSASSIN VC ELITE WH Vapor Chamber Elite CPU Air Cooler, 7 Copper Heat Pipes, LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155/AM5/AM4

DeepCool ASSASSIN VC ELITE WH

ASSASSIN VC ELITE WHThe ASSASSIN series adds to its impeccable cooling line with the ASSASSIN VC ELITE WH. With the new white aesthetic, the ASSASSIN VC ELITE WH includes a vapor chamber at the base that improves heat transfer dramatically while increasing the TDP to 300 watts!

Application For

Intel

LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions 144×147×164 mm(L×W×H)

Heatsink Dimensions 140×110×160 mm(L×W×H)

Net Weight 1772 g

Heatpipe Ø6 mm×7 pcs

Fan Dimensions 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)

Fan Speed (Performance Mode) 500~1800 RPM±10% / 500~1700 RPM±10%

Fan Airflow (Performance Mode) 61.25 CFM / 58.06 CFM

Fan Air Pressure (Performance Mode) 3.76 mmAq / 2.1 mmAq

Overall Noise (Performance Mode) ≤29.3 dB(A)

Fan Speed (Quiet Mode) 500~1450 RPM±10% / 500~1350 RPM±10%

Fan Airflow (Quiet Mode) 48.55 CFM / 46.75 CFM

Fan Air Pressure (Quiet Mode) 2.46 mmAq / 1.35 mmAq

Overall Noise (Quiet Mode) ≤22.6 dB(A)

Fan Connector 4-pin PWM

Bearing Type Fluid Dynamic Bearing

Motor Type 6-Pole Fan Motor

Fan Rated Voltage 12 VDC

Fan Rated Current 0.2 A / 0.2 A

Fan Power Consumption 2.4W / 2.4 W

Rated Voltage 12 VDC

Power Consumption(Performance Mode) 4.8 W

Power Consumption(Quiet Mode) 3.6 W

EAN 6.93341E+12

P/N R-ASN4-WHNVNN-GJD

Warranty: 72 months

Part No.: R-ASN4-WHNVNN-GJD
