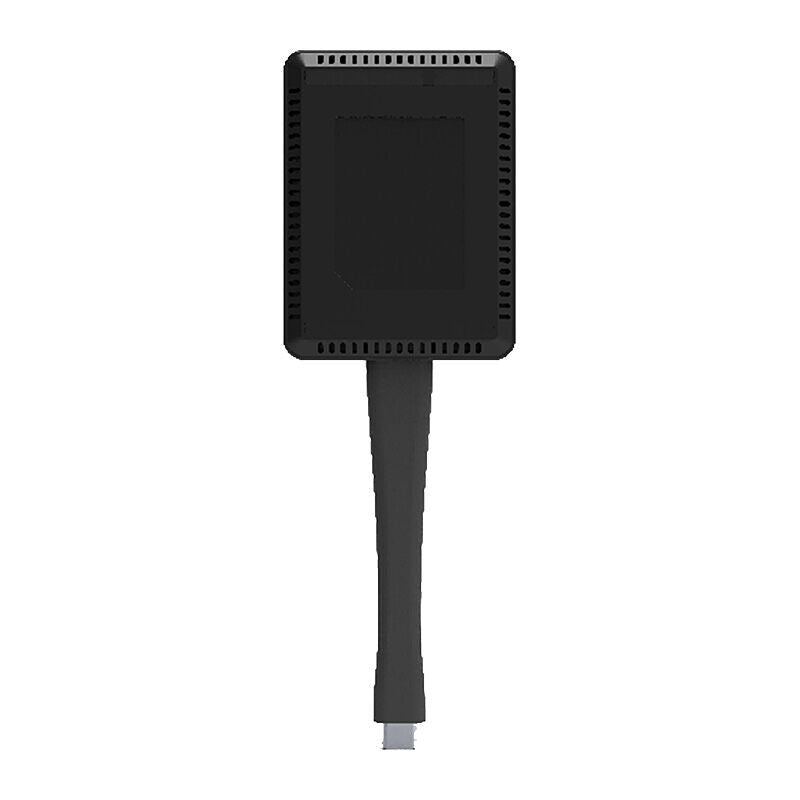

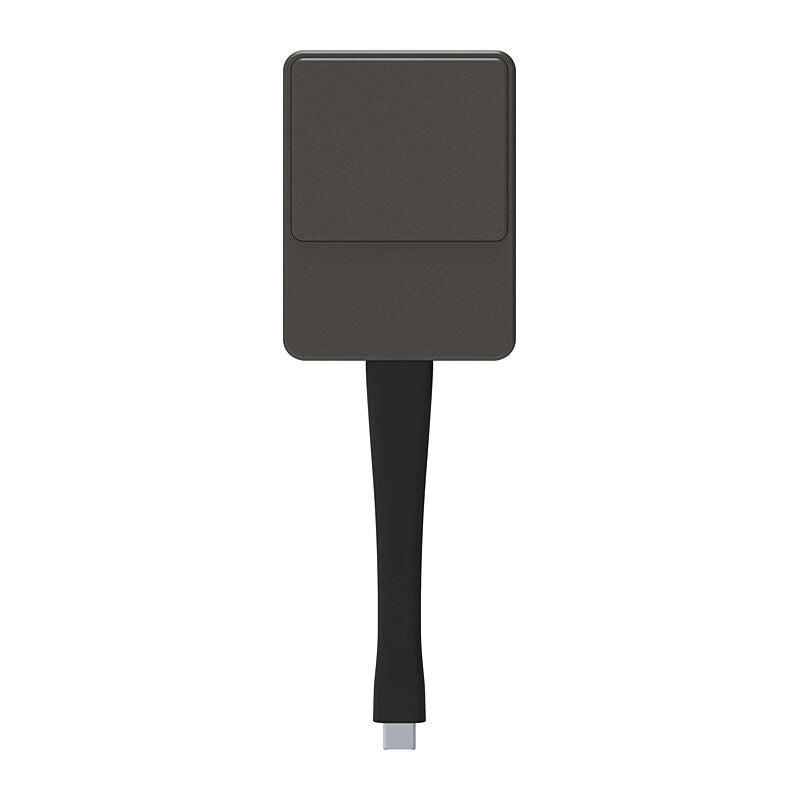

Dahua DHI-PKP-WP1B - Sharing Cable (USB C)

DAHUA Wireless Screen Sharing Cable (USB Type C)

Features

• No need to install software or drivers
• Hassle free, there is no need to install cables
• Performs projection with just the press of a button
• Displays in 4K delivering a crisp image
• Easy to use, it wirelessly transmits videos and audio to other devices, making it ideal for meetings
• Supports Chrome, iPads, and mainstream operating systems such as Windows, macOS, Linux, and Android

Specifications

Hardware Parameters

• Input Resolution: 480p, 576p, 720p, 1080p, 4K
• PC Timing: 640 × 480, 800 × 600, 1024 × 768, 1280 × 720, 1920 × 1080, 3840 × 2160
• Output Resolution: 720 × 480, 720 × 576, 1280 × 720, 1920 × 1080 (1080p), 3840 × 2160
• Interface: Full featured Type-C
• Input Voltage: 5 VDC (Type-C power supply)
• Power Consumption: 2.5 W (Average)
• Current Consumption: 0.9 A (Max.)

System Config

• Operating System: Windows® 7, Windows 8.1, Windows 10, Windows 11, macOS™, Chrome OS, Linux OS, Android OS (any OS supporting full featured Type-C)
• Encryption: CCMP
• Authentication Protocol: WPA2 (WPA2-PSK / WPA2-Enterprise)
• Wireless Transmission Protocol: IEEE 802.11 a/g/n
• Wireless Data Rate: 54 Mbps
• Frame Rate: Up to 60 fps depending on environment (FHD)
• Touch Control Back: Support 10 points

Structure

• Net Weight: 80 g (0.18 lb)
• Dimensions: 176 mm × 58 mm × 17 mm (6.93" × 2.28" × 0.67")
• LED: Blue, Green, Red

Environment Requirements

• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity: 0%–80% RH (non-condensing)
• Transmission Distance: Up to 15 m (49.21 ft) between wireless projectors and host
• Frequency Band: 2.4 GHz and 5 GHz (recommended)

Downloads

• Product brochure

Part No.: DHI-PKP-WP1B
