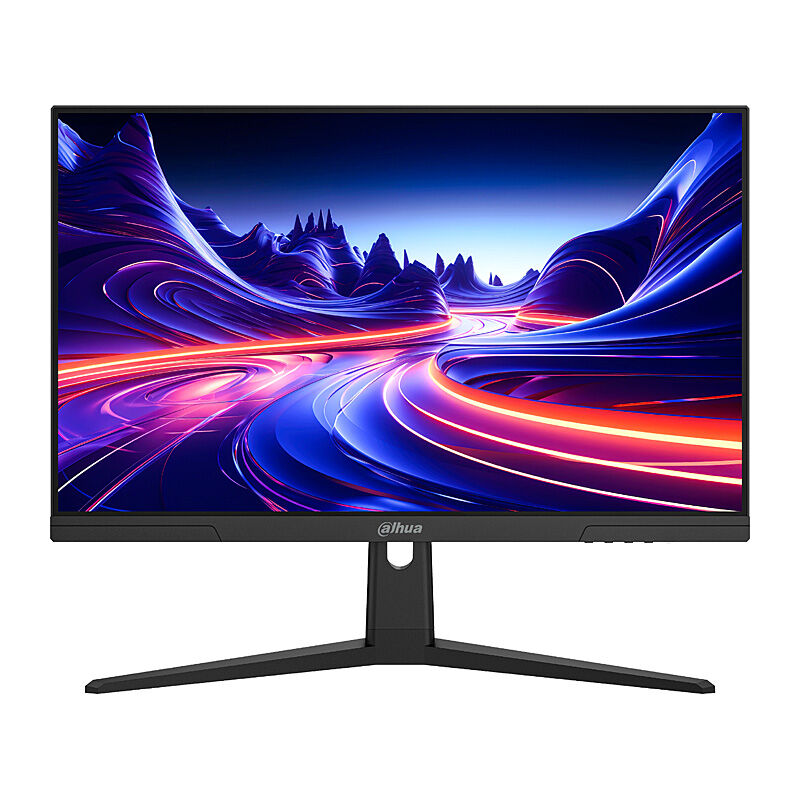

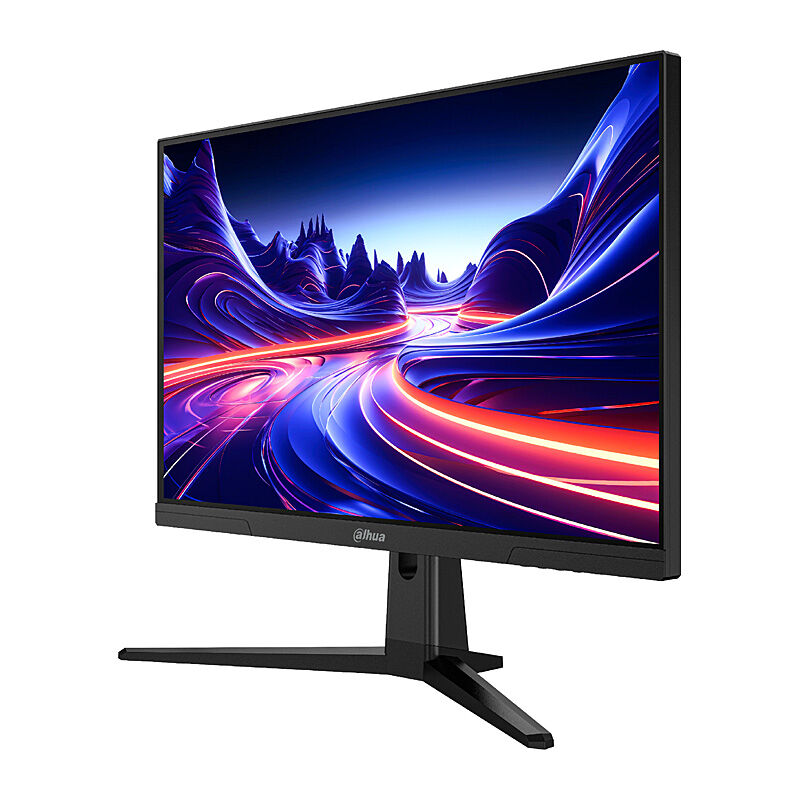

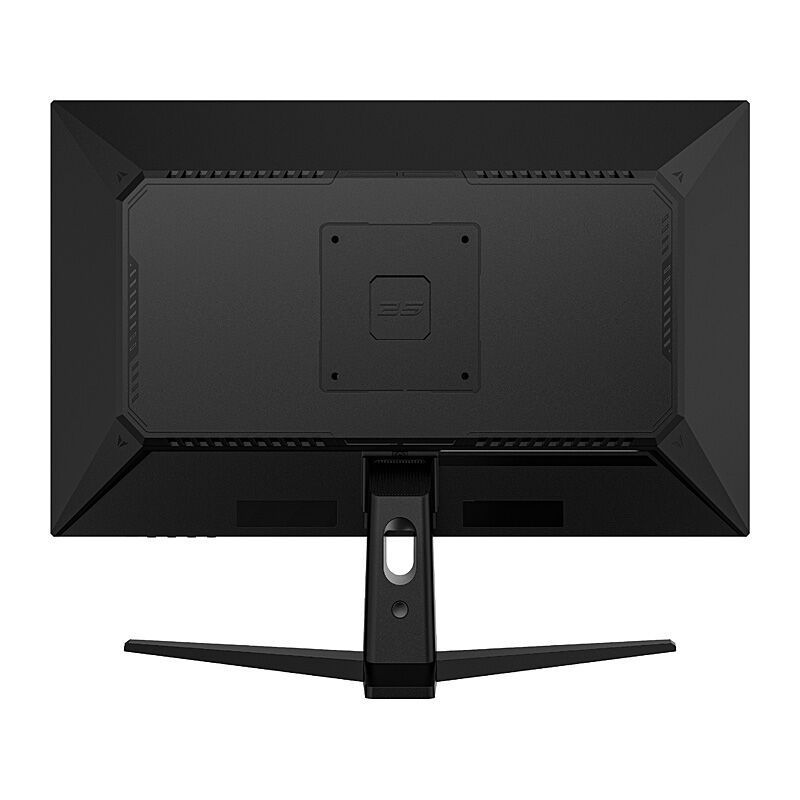

Dahua DHI-LM25-E241B - E241B 24'' IPS Monitor

DAHUA 24'' IPS Monitor, 1920*1080, 240Hz, 0.5ms, DP+HDMI+Audio out

Features

• Wide color gamut with 85% NTSC coverage, meeting designers' needs for rich image texture
• 178°H / 178°V extra‑wide viewing angle for all‑round visual performance
• Adaptive Sync technology effectively reduces picture lagging and tearing
• Ultra‑fast 0.5 ms response time (with OD) to eliminate blurring and ghosting

Specifications

• Model: DHI-LM25-E241B
• LCD Technology: IPS
• Backlight: ELED
• Screen Size: 24.5 inch
• Aspect Ratio: 16:9
• Viewing Size: 543.744 (H) × 302.616 (V) mm
• Screen-to-Body Ratio: ≥85%
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.0944 mm × 0.2802 mm
• Pixels Per Inch: 89.91
• Resolution: 1920 (H) × 1080 (V)
• Refresh Rate: 240 Hz
• Display Color: 8 bit, 16.7M colors
• Color Gamut: 85% NTSC
• Brightness: 350 cd/m² (typ.)
• Contrast Ratio: 1000:1
• Response Time: MPRT 1 ms, OD 0.5 ms
• Lifespan: 30,000 hrs
• Surface Treatment: Haze 25%, 3H
• Low Blue Light: Software blue light protection
• HDR: HDR10

Device Ports

• Input: 1 × DP 1.4 (1920 × 1080@240 Hz), 1 × HDMI 2.0 (1920 × 1080@240 Hz)
• Output: 1 × Audio out

Power & Environmental Conditions

• Power Supply: 12 VDC, 3 A
• Power Type: Power adapter
• Power Consumption: 18 W (basic), 19 W (typ.), 23.8 W (max)
• Standby Power Consumption: <0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–80% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: -5° ± 2° / 20° ± 2°
• Product Dimensions (W × H × D): 557.7 mm × 330.6 mm × 58.0 mm (21.96" × 13.02" × 2.28"), without wall‑mount bracket
• Package Size (W × H × D): 620 mm × 431 mm × 134 mm (24.41" × 16.97" × 5.28")
• Unilateral Splicing (U/L/R/D): 6.98 mm / 6.98 mm / 6.98 mm / 19.61 mm (0.27" / 0.27" / 0.27" / 0.77")
• Net Weight: 2.93 kg (6.5 lb)
• Gross Weight: 4.0 kg (8.82 lb)
• Casing Color: Black
• Control Mode: Five‑button
• Status Indicator Light: Yes
• Wall Mount VESA: 100 mm × 100 mm (3.94" × 3.94")

Accessory

• Power adapter
• DP cable
• User's manual
• Legal and regulatory information

Certification

• CE EMC
• CE LVD
• CE ERP

Downloads

• Product brochure

Part No.: DHI-LM25-E241B
