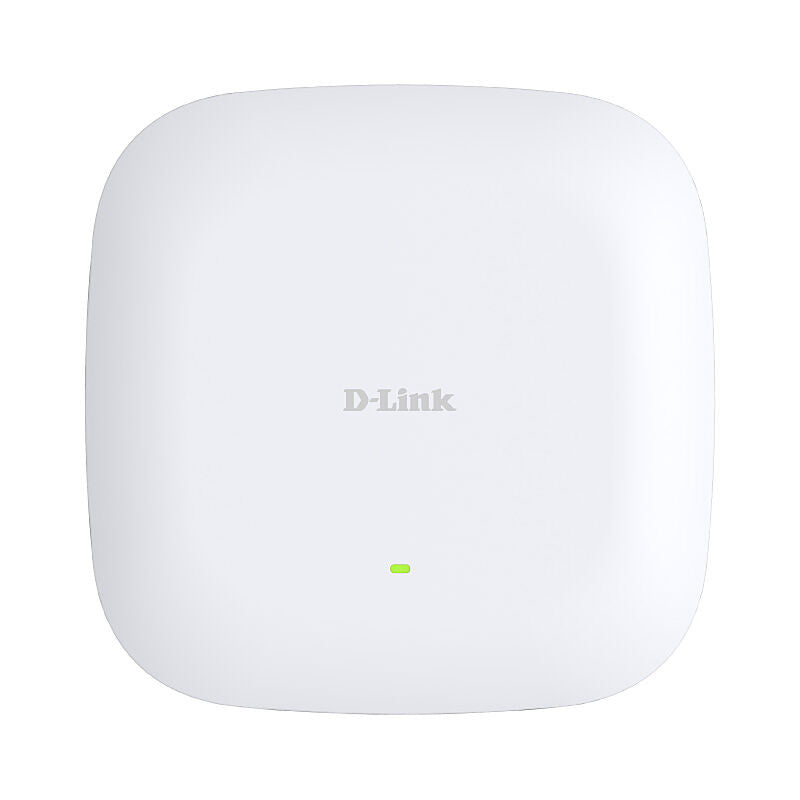

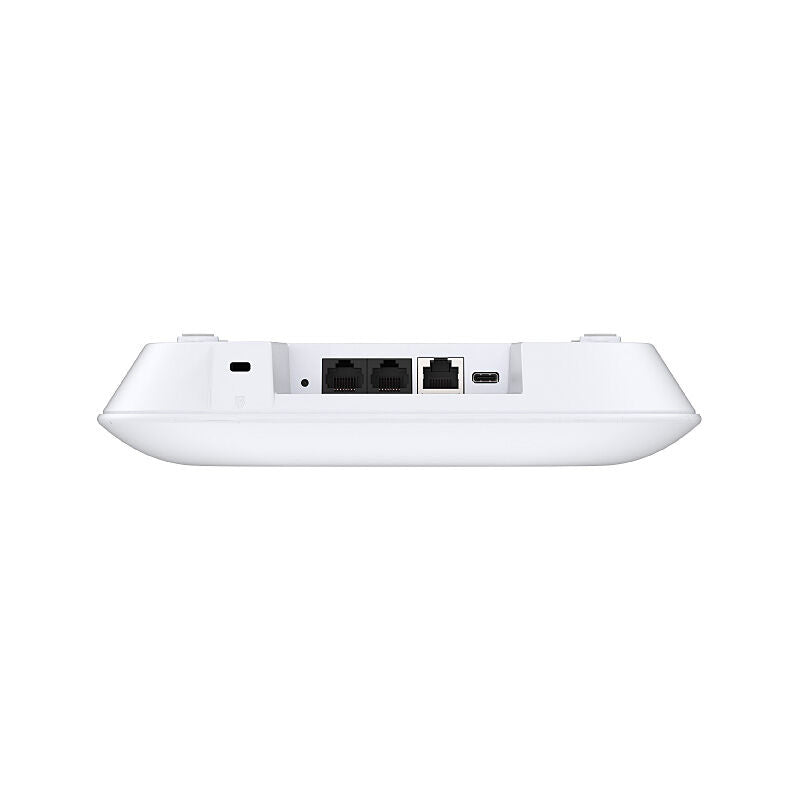

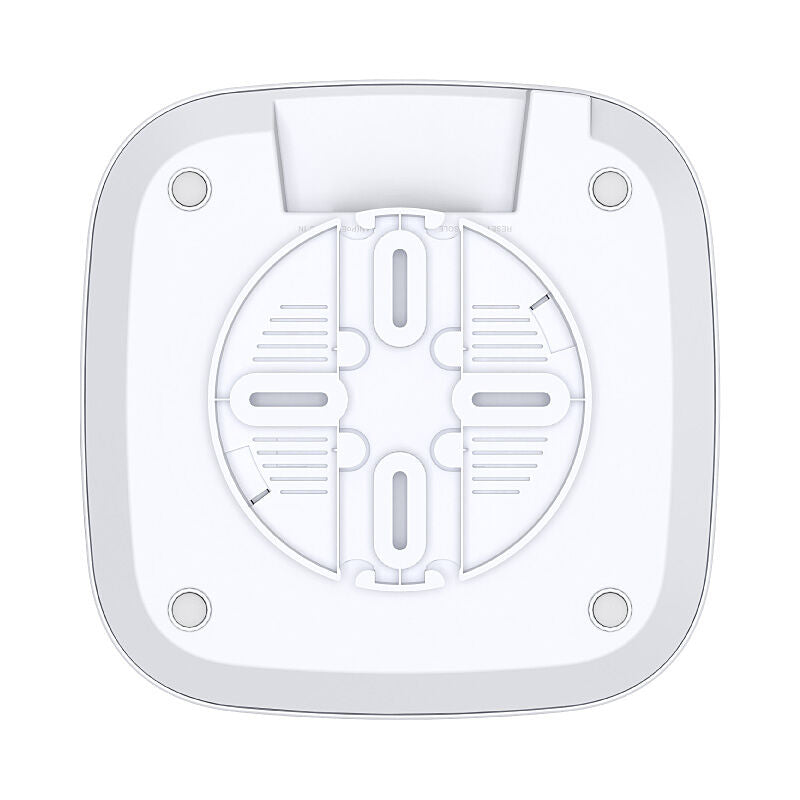

D-Link DAP-E9560 - Wi-Fi 7 Access Point

D-Link DAP-E9560 Wi-Fi 7 ceiling-mount access point for business wireless networks, with tri-band BE9500 performance, PoE support, secure WPA3 connectivity and Nuclias management for easier setup and control.

Features

• Wi-Fi 7 BE9500 Tri-band high-speed connectivity
• 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN
• Powered by 802.3bt PoE, USB-C adapter
• Max. channel bandwidth support (320MHz)
• 4096-QAM – Up to 20% faster than Wi-Fi 6
• Flexible use of multiple operating modes
• WPA3 encryption for enhanced Wi-Fi security
• Customizable Captive Portal for user access
• Multi-Link Operation boosts connection stability
• Centrally managed via Nuclias Network Controller

Specifications

• Category: Ceiling
• Interfaces: 1 x 10-Gigabit Ethernet PoE LAN port
  1 x 2.5-Gigabit Ethernet LAN port
• Antenna type: 2 x 2.4 GHz internal antennas
  2 x 5 GHz internal antennas
  2 x 6 GHz internal antennas
• Antenna gain: 2.4 GHz: 3.3 dBi
  5 GHz: 4.8 dBi
  6 GHz: 4.6 dBi
• Maximum Output Power: 2.4 GHz: 23 dBm
  5 GHz: 25 dBm
  6 GHz: 24 dBm
• Data Signal Rate: 2.4 GHz: Up to 688 Mbps
  5 GHz: Up to 2882 Mbps
  6 GHz: Up to 5764 Mbps
• IEEE Standard: IEEE 802.11be/ax/ac/n/g/b/a
  IEEE 802.3u/ab/an/bz
  IEEE 802.3bt PoE
• Operating Frequency: 2.4 - 2.483 GHz
  5.15 - 5.35 GHz
  5.47 - 5.85 GHz
  5.925 - 7.125 GHz
• Security Protocol: WPA/WPA2/WPA3™ Personal/Enterprise
  WEP 64/128-bit
  SSID broadcast disable
  Enhanced Open
  MAC address access control
  Internal RADIUS server
• Network Management: Web
  Nuclias Unity
  Nuclias hardware and software controller
  SNMP
• Power Supply: IEEE 802.3bt PoE
  USB Type-C
• Max. Power Consumption: 27.756 W
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C to 65°C (-4°F to 149°F)
• Operating Humidity: 10% to 90%
• Storage Humidity: 5% - 95%
• Dimensions: 223 x 223 x 46.7 mm

Downloads

• Product brochure

Part No.: DAP-E9560
