Specifications:
- Phase: Single Phase
- Form Factor: Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 96%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage ( Vac ): 230
- Input Voltage Range ( Vac ): 110 - 276
- Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac
- Input Frequency ( Hz ): 50 ? 5 | 60 ? 6
- Input Frequency Detection: Auto-sensing
- Rated Input Current ( A ): 27.3
- Input Power Factor: 0.99
- Input Connector Type: Hardwire Terminal Block
- Capacity (VA): 6000
- Capacity (Watts): 5400
- On Battery Waveform: Pure Sine Wave
- On Battery Frequency ( Hz ): 50 ? 0.1% | 60 ? 0.1%
- Power Factor: 0.9
- ECO Mode Voltage Tolerance: ? 10 %
- Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
- Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
- Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec
- Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
- Harmonic Distortion (Linear Load): THD?2%
- Harmonic Distortion (Non-linear Load): THD?5%
- Internal Bypass: Automatic Bypass, Manual Bypass
- Maintenance Bypass: Yes
- Outlet(s) - Total: 1
- Outlet Type: Hardwire Terminal Block x 1
- Typical Transfer Time ( ms ): 0
- Runtime at Half Load ( min ): 18
- Runtime at Full Load ( min ): 7
- Typical Recharge Time ( Hours ): 7
- Maximum Charging Current ( A ): 1
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable: No
- Compatible Extended Battery Module (EBM): BPSE240V47A
- Max. EBM Quantity ( pcs ): 15
- Surge Suppression ( Joules ): 445
- EMI/RFI Filtration: Yes
- HID Compliant USB Port(s): 1
- Emergency Power Off (EPO) Port: Yes
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- Enclosure Construction: Metal
- Dimensions: 260 x 708 x 550mm
- Weight: 70kg
- Online Thermal Dissipation ( BTU/hr ): 1603
- Audible Noise at 1.5M from Surface of Unit: 60 dBA
- Certifications: CE / RoHS
- Warranty: 2 Years
Features:
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Maintenance Bypass Switch
- Smart Battery Management (SBM)
- Surge and Spike Protection
- LCD Status Display
- PowerPanel Management Software
- ECO Mode
- Overload Protection
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
What's in the box?

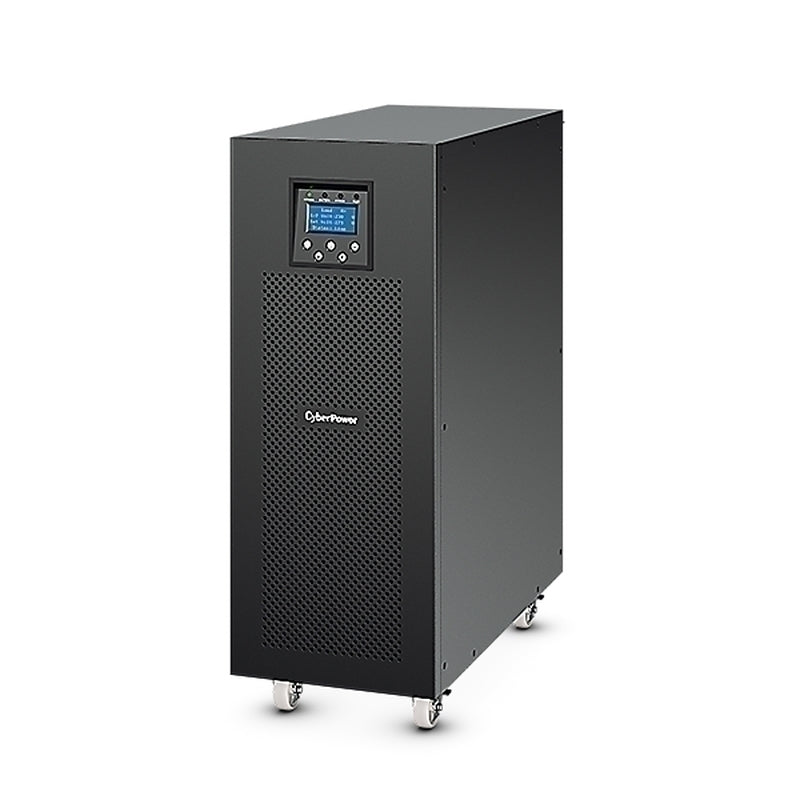

- 1 x OLS6000E UPS
- 1 x Parallel Port Cover Plate
- 1 x Terminal Cover
- 1 x Terminal Splices
- 1 x USB Cable
- 1 x User's Manual
