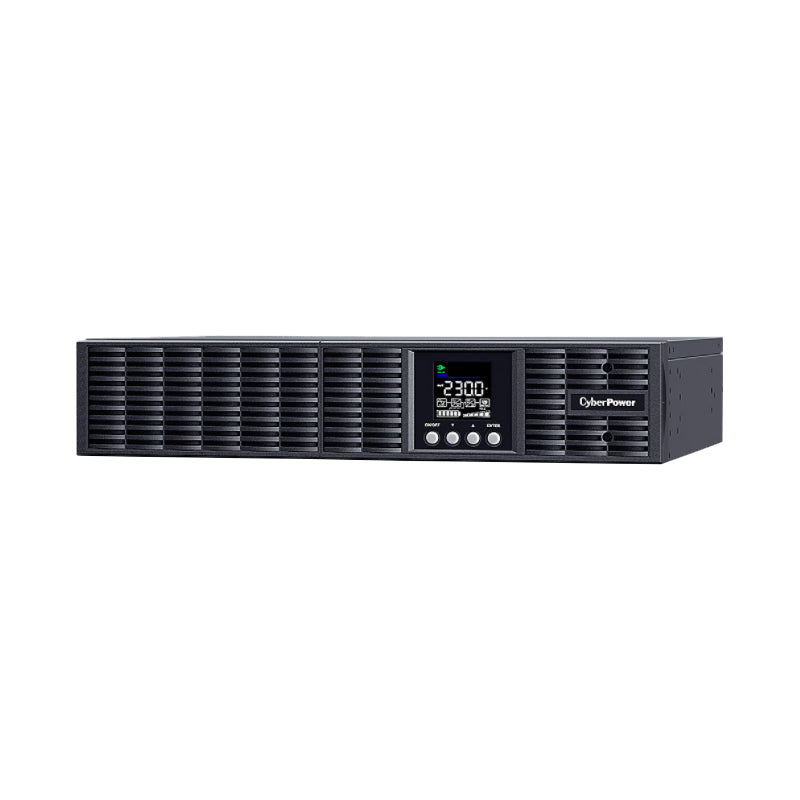

CyberPower Systems Online S (A) 3000VA/2700W Rack UPS - 12V/9AHx6 - 8x IEC C13, 1x IEC C19 - USB & Serial Port & SNMP Slot (optional RMCARD205) - 2 Yrs Adv. Replacement WTY - Incl Rail kit
Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 190 - 300
Adjustable Voltage Range ( Vac ): 0-30% Load for 80 - 300 Vac | 0-60% Load for 140 - 300 Vac | 0-80% Load for 160 - 300 Vac | 0-100% Load for 190 - 300 Vac
Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 13
Input Power Factor: 0.99
Input Connector Type: IEC C20
Power Cord Length (m.): 1.5
Output Capacity (Watts): 2700
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1%
Output Voltage Setting: Configurable
On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
Output Frequency Setting: Configurable
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 15 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode): >130% Load Immediately
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD?3%
Harmonic Distortion (Non-linear Load): THD?5%
Internal Bypass: Automatic Bypass, Manual Bypass
Outlet(s) - Total: 9
Outlet Type: IEC C19 x 1 | IEC C13 x 8
Outlet(s) - Battery ; Surge Protected: 9
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 4
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 13.8
Runtime at Full Load ( min ): 4.3
Typical Recharge Time ( Hours ): 4
Maximum Charging Current ( A ): 1.5
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: Yes - Qualified Personnel Only
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0158
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 6
Battery Voltage (Each RBP) ( V ): 72
Compatible Extended Battery Module (EBM): BPSE72V40ART2U
Extended Battery Module Auto-detection: Yes
Max. EBM Quantity ( pcs ): 3
Surge Suppression ( Joules ): 388
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault ; Warning, Other Information, Event ; Log
LCD Setting ; Control: Mode Setting, Alarm Setting, Input ; Output, Battery Setting
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs ): Power Cord x2, USB Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 438 x 88 x 610mm
Weight: 26.7kg
Certifications: CE, RCM
Online (Double Conversion) UPS Topology
Generator Compatible
Zero Transfer Time
Extended Battery Module Auto-detection
Critical/Non-critical Load Outlets
Phone/Fax/Modem/DSL/Network Protection
Variable Speed Fans
PowerPanel Management Software
Rack/Tower Convertible Configurations
ECO Mode
Overload Protection
Smart Battery Management (SBM)
Surge and Spike Protection
EMI and RFI Filtration
Color LCD Panel
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Form Factor: Rackmount / Tower
