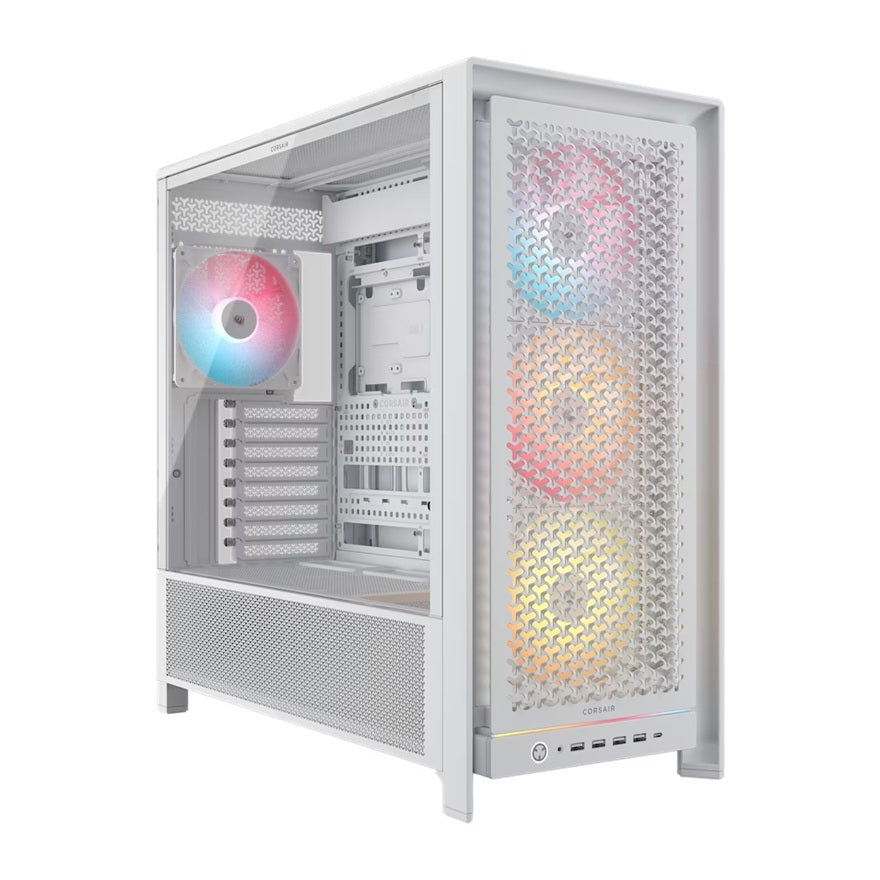

Corsair FRAME 5000D RS ARGB High-Airflow Mid-Tower PC Case - White, ATX, 450mm GPU, 175mm CPU cooler, 360mm rad, 4x RS140 ARGB, 1x USB-C 3.2

Corsair FRAME 5000D RS ARGB High-Airflow Mid-Tower PC Case - White, ATX, 450mm GPU, 175mm CPU cooler, 360mm rad, 4x RS140 ARGB, 1x USB-C 3.2

The CORSAIR FRAME 5000D RS ARGB is a modular and spacious mid-tower PC case featuring InfiniRail™ Fan Mounting System, RapidRoute 2.0 cable management, and is compatible with reverse connector motherboards.

Includes

•Fully-modular design for next-level customization

•4x RS140 ARGB Fans with daisy-chain connections

•InfiniRail Fan Mounting System for easier building

•Triple 360mm radiator support

•GPU anti-sag stabilization arm

•Compatible with reverse connector motherboards

•RapidRoute 2.0 pegboard motherboard tray and cable looms

TECH SPECIFICATIONS

Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height

542

Case Length

556

Case Width

250

Material

Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Color

WHITE

Case Size

Mid-Tower

Case Window

Tempered Glass

Internal 3.5' Drive Bays

2

Internal 2.5' Drive Bays

6

Maximum CPU Cooler Height

175mm

Case Front IO

(1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length

450mm

Weight

15.48kg

Case Expansion Slots

8 Horizontal or 3 Vertical

Case Power Supply

ATX

Radiator Support - Top

420mm, 360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

360mm, 280mm, 240mm

Radiator Support - Rear

140mm, 120mm

Fan Support - Top

3x 120mm, 3x 140mm

Fan Support - Front

3x 120mm, 3x 140mm, 2x 200mm

Fan Support - Bottom

4x 120mm

Fan Support - Side

3x 120mm, 3x 140mm

Fan Support - Rear

1x 140mm, 1x 120mm

Front IO Motherboard Connections

1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB

Reverse Connector Motherboard Support

Yes

Included Fans

RS ARGB Series

Dust Filtration

Yes

Cable Routing Space

42mm

RapidRoute Included

Yes

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Supported (Riser Card Sold Separately)

Warranty: 24 months

Part No.: CC-9011310-WW
