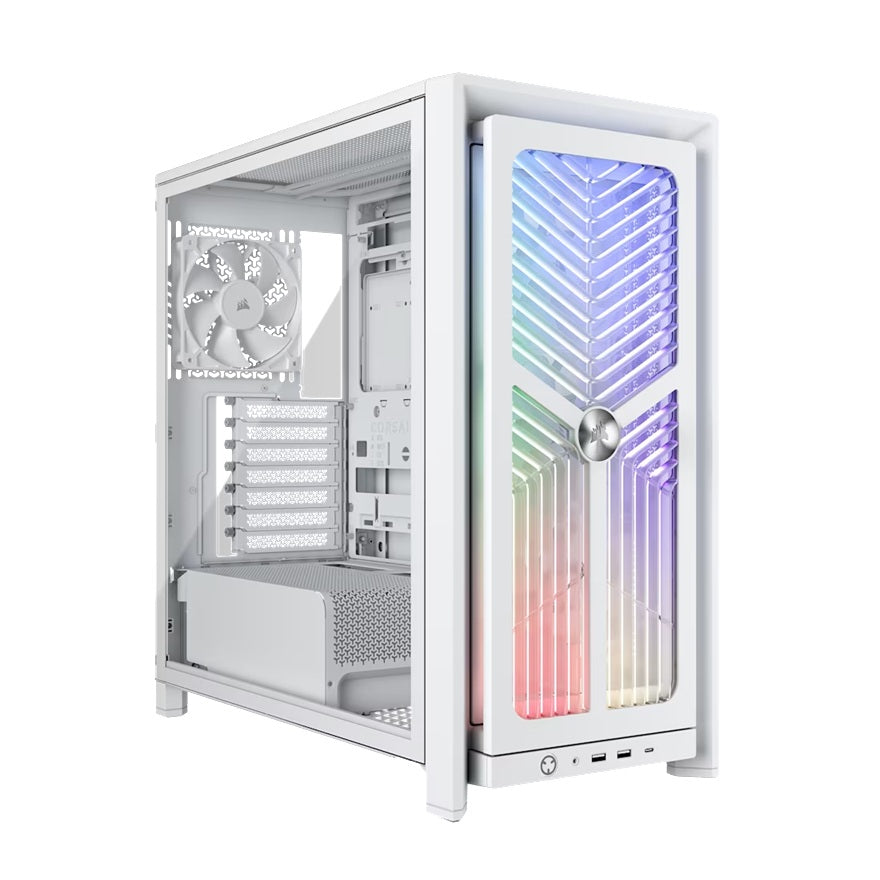

Corsair FRAME 4000X RS Mid-Tower PC Case - White, Mid-Tower ATX/E-ATX Mini-ITX Micro-ATX 430mm GPU 170mm CPU 360mm rad TG USB-C 3x120/2x140 fans

Corsair FRAME 4000X RS Mid-Tower PC Case, White

•RGB Flow front panel features customizable ARGB lighting

•405mm GPU clearance with front fans installed

•4x RS120 PWM daisy-chain fans for hassle-free cooling

•Fully-modular FRAME design for next-level customization

•Built-in GPU Anti-sag Stabilization Arm

•Compatible with reverse-connector motherboards

•Supports up to 13x 120mm fans

Tech Specs

Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height

486mm

Case Length

488mm

Case Width

239mm

Material

Steel, Tempered Glass, Plastic

Color

WHITE

Case Size

Mid-Tower

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Case Window

Tempered Glass

Compatible Liquid Coolers

H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty

2 Year

Internal 3.5' Drive Bays

1

Internal 2.5' Drive Bays

2

Maximum CPU Cooler Height

170mm

Maximum PSU Length

220mm

Case Front IO

(1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length

430mm

Weight

11.53kg

Case Expansion Slots

7 Horizontal or 3 Vertical

Case Power Supply

ATX

Radiator Support - Top

360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

360mm, 280mm, 240mm

Radiator Support - Rear

140mm, 120mm

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm, 2x 200mm

Fan Support - Bottom

3x 120mm

Fan Support - Side

3x 120mm; 2x 140mm

Fan Support - Rear

1x 120mm, 1x 140mm

Front IO Motherboard Connections

1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio

Reverse Connector Motherboard Support

Yes

Included Fans

RS Series

Dust Filtration

Yes

Cable Routing Space

37mm

RapidRoute Included

No

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Supported (Riser Card Sold Separat

Warranty: 12 months

Part No.: CC-9011303-WW
