(CH)TP-Link EAP620 HD Omada AX1800 Wireless Dual Band Ceiling Mount Access Point, 1201Mbps @ 5GHz , OFDMA, MU-MIMO, QoS, Mountable

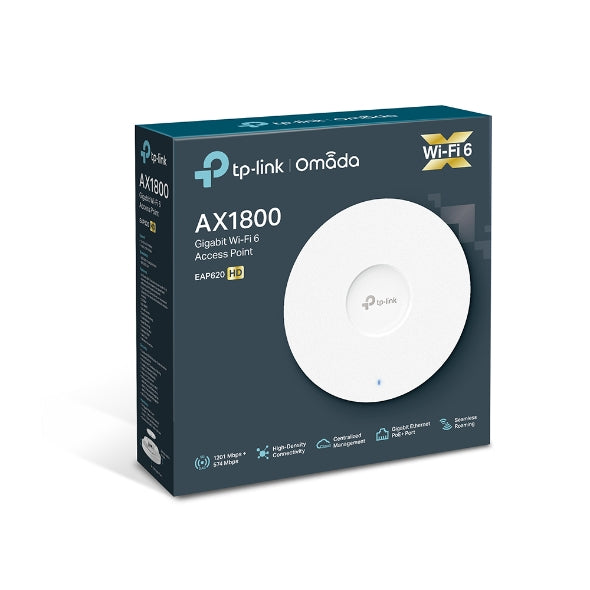

TP-Link EAP620 HD AX1800 Wireless Dual Band Ceiling Mount Access Point

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†

• High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.

• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES

Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button Reset

Power Supply • 802.3at PoE

• 12 V DC

Power Consumption • EU: 12 W

• US: 13.5 W

Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna Type Internal Omni

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate 5 GHz: Up to 1201 Mbps

2.4 GHz: Up to 574 Mbps

Wireless Functions • 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Seamless Roaming

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Warranty: 60 months

Part No.: EAP620 HD
