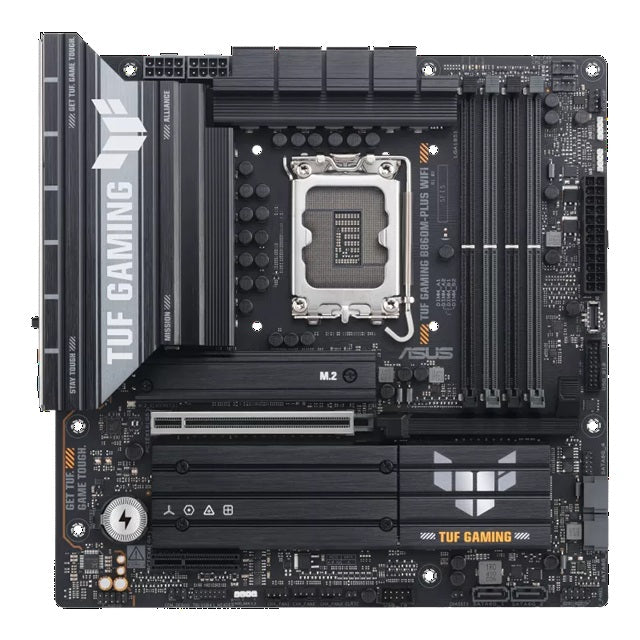

ASUS TUF GAMING B860M-PLUS WIFI LGA1851 mATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 3 x M.2 slots, 4 x SATA, WiFi 7, 1 x HDMI, 1 x DP

ASUS TUF GAMING B860M-PLUS WIFI LGA1851 mATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 3 x M.2 slots, 4 x SATA, WiFi 7, 1 x HDMI, 1 x DP

ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

SPECIFICATION

Model TUF GAMING B860M-PLUS WIFI

Chipset Intel® B860 Chipset

BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS

Manageability WOL by PME, PXE

Operating System Windows 11 (22H2 & later)

CPU

Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

*Refer to https://www.asus.com/support/download-center/ for CPU support list.

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Memory

4 x DIMM slots, max. 256GB, DDR5

Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual Channel Memory Architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

1 x HDMI™ port***

1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.

*****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel® CoreTM Ultra Processors(Series 2)*

1 x PCIe 5.0 x16 slot

Intel® B860 Chipset

1 x PCIe 4.0 x4 slot

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Ultra Processors(Series 2)*

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

*Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Form Factor

mATX Form Factor

9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Warranty: 36 months

Part No.: TUF GAMING B860M-PLUS WIFI
