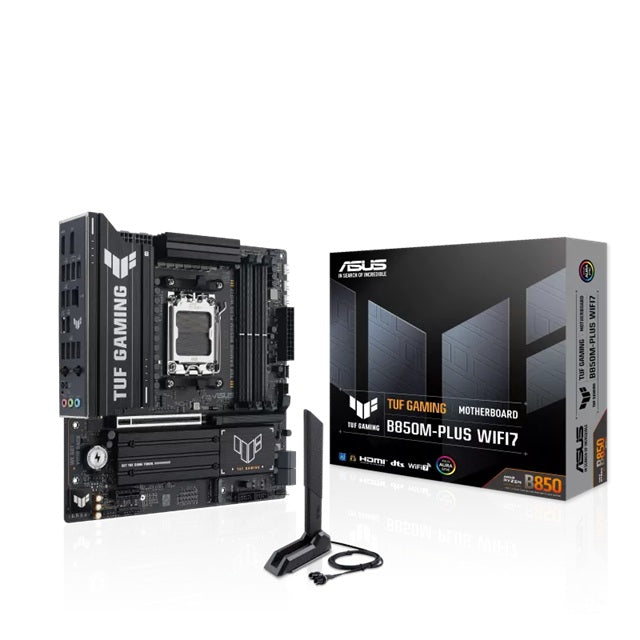

ASUS TUF GAMING B850M-PLUS WIFI7, AM5,B850,4DDR5 256GB,PCIe5.0,M.2x3,WiFi7,BT5.4,2.5GbE,USB20G,DP,HDMI,mATX,3yr wty

ASUS TUF GAMING B850M-PLUS WIFI7, AM5,B850,4DDR5 256GB,PCIe5.0,M.2x3,WiFi7,BT5.4,2.5GbE,USB20G,DP,HDMI,mATX,3yr wty

SPECIFICATION

Model

TUF GAMING B850M-PLUS WIFI7

News & Updates

Please visit our GLOBAL website to check and download the latest updates.

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD B850 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B850 Chipset

1 x PCIe 4.0 x1 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Specifications vary by CPU types.

RAID Support

AMD RAIDXpert2 Technology*

Ryzen™ 9000 Series Processors: RAID 0/1/5/10

Ryzen™ 8000 Series Processors: RAID 0/1

Ryzen™ 7000 Series Processors: RAID 0/1/10

* Specifications vary by CPU types.

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows 11

Form Factor

micro-ATX Form Factor

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Warranty: 36 months

Part No.: TUF GAMING B850M-PLUS WIFI7
