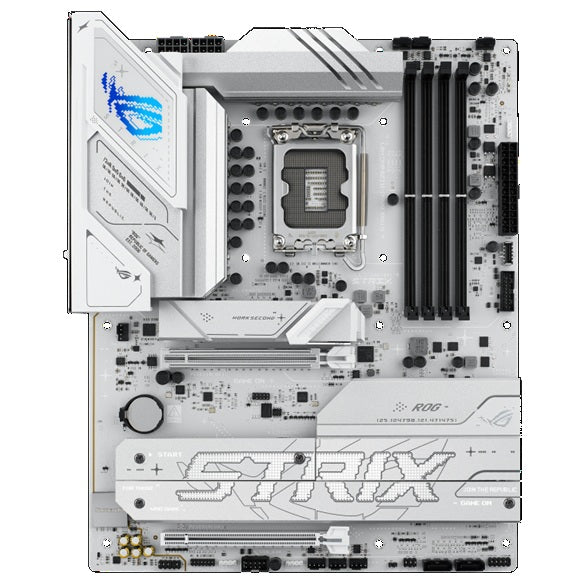

ASUS ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 4 x M.2 slots, 4 x SATA. WiFi 7, 1 x HDMI, 1 x DP

ASUS ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 4 x M.2 slots, 4 x SATA. WiFi 7, 1 x HDMI, 1 x DP

With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

SPECIFICATION

Model

ROG STRIX B860-A GAMING WIFI

CPU

Support Intel® Core™ Ultra Processors (Series 2)*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B860 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

1 x HDMI™ port***

1 x USB4® (20Gbps) ports support USB

Type-C® display outputs****

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

**** In USB4® mode, supports up to 4K@60Hz,

maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 1.4 specs. In DP alt mode, supports up to UHBR10.

***** VGA resolution support depends on processors' or graphic cards' resolution.

******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel® Core™ Ultra Processors (Series 2)

1 x PCIe 5.0 x16 slot

Intel® B860 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)*

* M.2_4 slot shares bandwidth with

PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

- To ensure compatibility of the device

installed, please refer to https://www.asus.com/support/download-center/ for

the list of supported peripherals.

Storage

Total supports 4 x M.2 slots and 4 x SATA

6Gb/s ports*

Intel® Core™ Ultra Processors (Series 2)

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

M.2_2 slot (Key M), type 2280 (supports

PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2280/22110

(supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280 (supports

PCIe 4.0 x4 mode)**

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports

SATA RAID 0/1/5/10.

** M.2_4 slot shares bandwidth with

PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

Ethernet

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, UEFI PXE

Operating System

Windows 11 (22H2 & later)

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty: 36 months

Part No.: ROG STRIX B860-A GAMING WIFI
