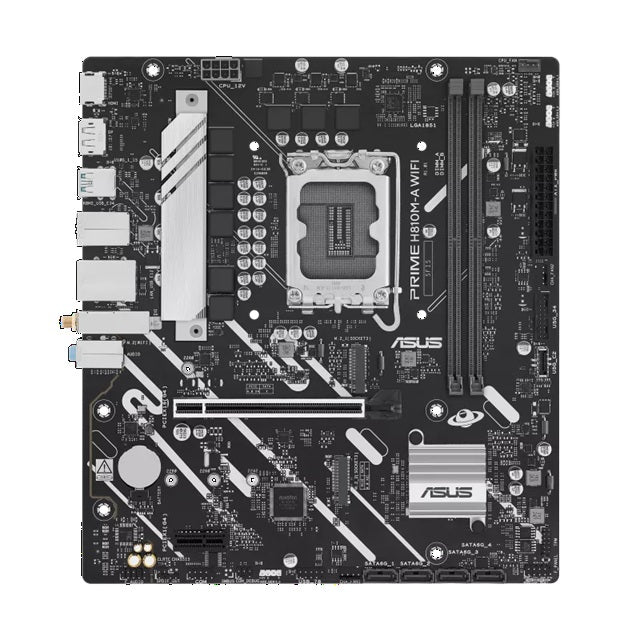

ASUS PRIME H810M-A WIFI-CSM Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0 x16, 2 x M.2, 4 x SATA, WiFi 6, HDMI, DP

ASUS PRIME H810M-A WIFI-CSM Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0 x16, 2 x M.2, 4 x SATA, WiFi 6, HDMI, DP

SPECIFIFCATION

Model

PRIME H810M-A WIFI-CSM

CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H810 Chipset

Memory

2 x DIMM slots, max. 128GB, DDR5

Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile II (AEMP II)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel® Core™ Ultra Processors (Series 2)

1 x PCIe 4.0 x16 slot

Intel® H810 Chipset

1 x PCIe 4.0 x1 slot

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® H810 Chipset

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

4 x SATA 6Gb/s ports

Ethernet

1 x Intel® 1Gb Ethernet port*

ASUS LANGuard

*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

Wireless & Bluetooth

Wi-Fi 6

1x1 Wi-Fi 6 (802.11ax)

Supports 2.4/5GHz frequency band

Bluetooth® v5.3*

* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor

micro-ATX Form Factor

9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

Warranty: 36 months

Part No.: PRIME H810M-A WIFI-CSM
