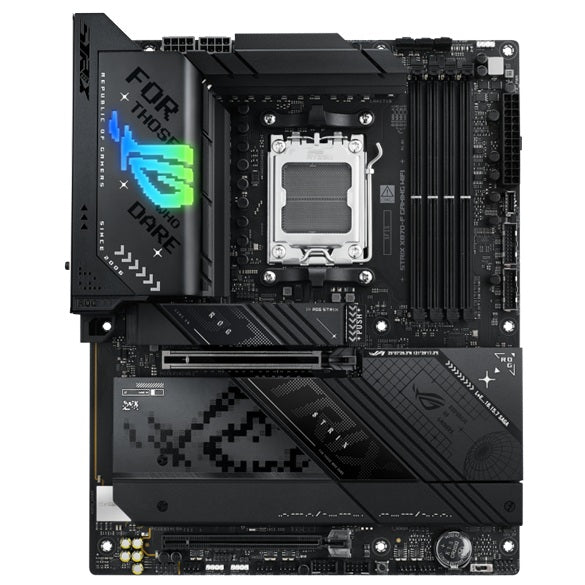

ASUS AMD ROG STRIX X870-F GAMING WIFI (AM5) ATX Motherboard, DDR5 256GB, PCIe 5.0 x16, 4x M.2, 2x SATA, Wi-Fi 7, 2.5Gb LAN, 2x USB4, 1x HDMI, 1x DP

ASUS AMD ROG STRIX X870-F GAMING WIFI (AM5) ATX Motherboard

he ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.

SPECIFICATIONS

Model

ROG STRIX X870-F GAMING WIFI

News & Updates

Socket AM5

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

AMD X870

Memory

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen™

9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory*'

Dual channel memory architecture

Supports AMD Extended Profiles for

Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Graphics

1 x DisplayPort**

1 x HDMI™ port***

2 x USB4® (40Gbps) ports support USB

Type-C® display outputs****

* Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in

DisplayPort 1.4.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors*

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**

AMD Ryzen™ 8000 Series Desktop Processors**

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****

AMD X870 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

2 x SATA 6Gb/s ports

Ethernet

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)*

2x2 Wi-Fi 7** (802.11be)

Supports 2.4/5/6GHz frequency band***

Supports Wi-Fi 7 320MHz bandwidth

Bluetooth® v5.4****

SB

Rear USB (Total 12 ports)

2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**

4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 9 ports)

1 x USB 20Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel'

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows 11

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty: 36 months

Part No.: ROG STRIX X870-F GAMING WIFI
