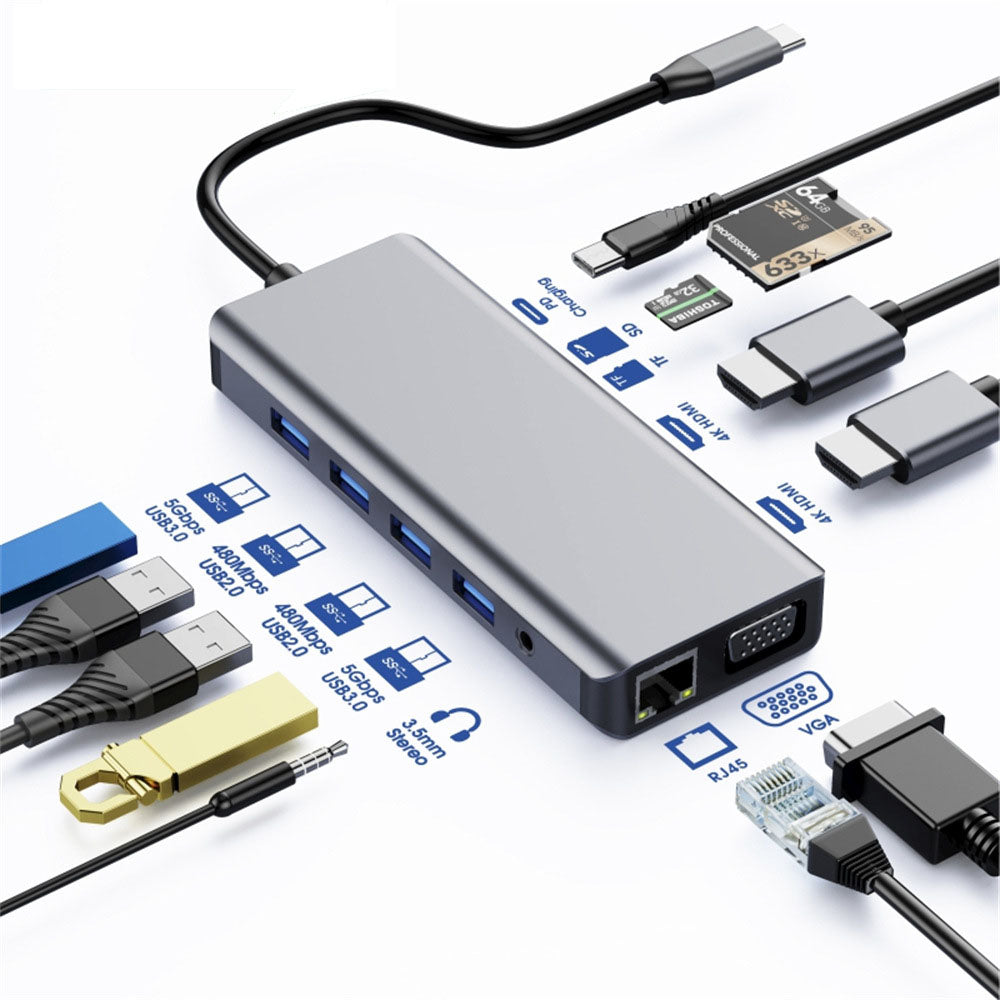

Astrotek USB-C Dock 12-in-1 Multiport Hub/Docking Station with 100W Power 2xHDMI 4K VGA GLAN 2xUSB3.0 2xUSB2.0 Card Reader for HP Lenovo Asus MacBook

Astrotek USB-C Dock 12-in-1 Multiport Docking Station with 2xHDMI 4K 1xVGA 1xGLAN 3xUSB3.0 1xUSB2.0 TF/SD Card Reader 3.5mm Audio USB-C PD ~100W

12 in 1 Docking Station Dual Monitor ,Triple Display USB C Adapter to 2xHDMI 4K, VGA, Ethernet, 4xUSB Ports, SD/TF Card Reader for MacBook and Window

Make sure that the host USB-C port on the device complies with the USB 3.1 specification or the USB-C port is Thunderbolt 3.

To use the HDMI output port, the host USB-C port from your device must support DisplayPort Alt Mode..

3.5mm Audio needs to be used with HDMI or VGA.

Some computer systems need to manually install the network card driver to connect to the Internet

When VGA Port is connected, each monitor will be limited to a maximum resolution of 1920 x 1080@60Hz

User Interface

Input USB-C x 1

Output

HDMI 4K x 2

VGA 1080P x 1

USB 3.0 Type A x 4

SD CARD x 1

TF CARD x 1

Ethernet 1000Mhz x 1

3.5mm Audio x 1

USB C Power delivery 87W x 1

Resolution

Single Monitor: 1*4K@30Hz(3840x2160) (HDMI)

Single Monitor: 1*1080P@60Hz(1920x1080) (VGA)

Dual Monitors: 2*1080P@60Hz (HDMI + HDMI)/ (HDMI + VGA)

Triple Monitors: 2*1080P@60Hz + 1*800x400@60Hz (HDMI + HDMI + VGA)

Physical Characteristics

Colour Space Gray

Length 15cm

System Requirement

USB-C Ports with DP alt Mode, Windows

Chromebook and Mac OS

Warranty 1 year

Warranty: 12 months

Part No.: AT-USBCDOCK12
