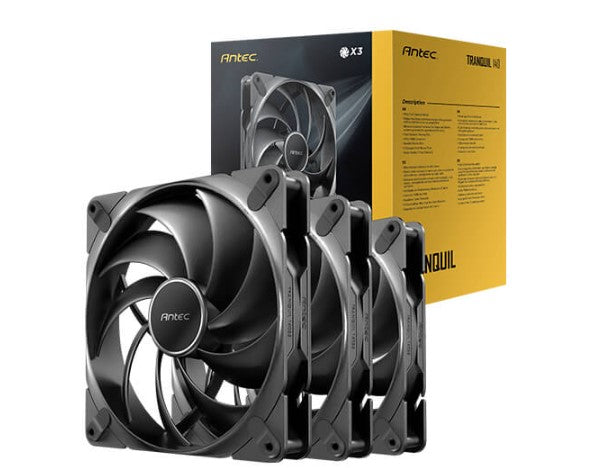

Antec Tranquil140, PWM, 2000RPM, 59.23CFM, 2.46mmH₂O, 4 Pin PWM Connector, 140mm x 25mm Performance case Fan, Tranquil Series 3 Pack(LS)

The Tranquil 120 PWM FAN

TRANQUIL & POWERFUL

Unique fan blade and frame design offers powerful airflow with low noise accomplished.

EXQUISITE CRAFTSMANSHIP

Minimal clearance between fan frame and blades, achieving maximum operational efficiency.

Fluid Dynamic Bearing

Reduces friction between shaft and bearing for longer life and minimal noise.

VIBRATION-ABSORBING & ANTI-NOISE PADS

Equipped with eight damping feet to prevent resonance, reducing noise effectively.

CABLE & CONNECTOR

Durable Woven Wire

Covered with durable wovenwire to enhance the lifetime & create unique aesthetics.

4-Pin PWM Daisy Chain Cable

Cable Length: 500 mm

PWM Extension Cable Included

Model Name Tranquil 140

Fan Type PWM Fan

Dimensions 140 x 140 x 25 mm

Bearing Type FDB

Fan Speed 450±100~1500±150 RPM

Airflow 21.13~85.96 CFM

Air Pressure 0.11~1.79 mmH₂O

Fan Noise Level 18.6~27.5 dB(A)

Lifespan 50,000 hours / 25℃

Connector 4-pin PWM

Rated Voltage DC 12 V

OperationVoltage DC 7-13.8 V

Rated Current 0.12 (MAX:0.18) A

Warranty: 36 months

Part No.: TQ140-3PK
