Antec NE1000P AU, 1000W, 80 PLUS Platinum, ATX 3.1, PCIe 5.1 (12V-2x6), Full Modular, Active PFC, 120mm FDB Fan, 10Y Warranty

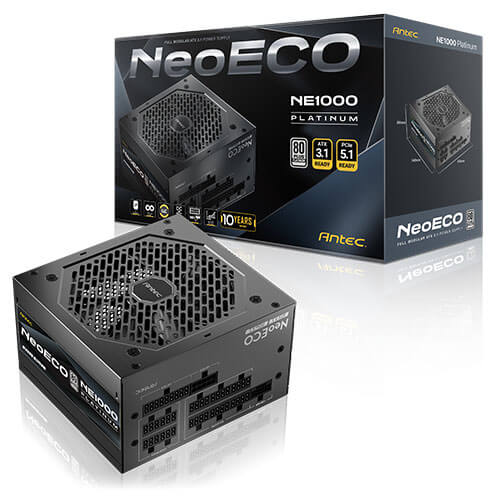

Antec NE1000P AU

Introducing the NeoECO Platinum ATX3.1 power supply, crafted to deliver exceptional performance and rock-solid stability for gamers and enthusiasts. Featuring next-generation ATX 3.1 and PCIe 5.1 support, high-quality Japanese capacitors, and 80 PLUS® Platinum efficiency, it ensures outstanding and consistent power delivery. The PhaseWave™ design provides smooth, reliable output, while the 120 mm FDB silent fan delivers efficient, quiet cooling. Its fully modular design allows for easy cable management, and the Zero RPM Manager intelligently controls fan operation, activating it only when needed to balance silent performance with optimal cooling. Backed by the CircuitShield™ suite of industrial-grade protections, the NeoECO Platinum ATX3.1 is a powerful, efficient, and dependable choice for modern PC builds.

SPECIFICATIONS

Model NE1000 PLATINUM ATX3.1

Safe Model X8000A587EU-25

Type ATX 12V 3.1

Dimension 140(L)*150(W)*86(H)

Modular Full-Modular

Warranty 10 years

Input Voltage 100V-240V

Input Current 12A-6A

Input Frequency Range 50Hz-60Hz

PFC Active PFC

Power Good Signal 100-150ms

Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity 1000W

Operation Temperature 0~40°C

Regulatory cTUVus / TUV / CB / RCM / CE / FCC /

BSMI / 3C / UKCA / ICES

Fan 120mm FDB Silent Fan

Certifications 80 Plus Platinum

Connector

1 x 24(20+4)pin MB

1 x 16(12+4)pin PCIE 5.1 12V-2x6

2 x 8(4+4)pin CPU

3 x 8(6+2) Pin PCI-E

9 x SATA

3 x Molex

UPC

0-761345-20209-1 NE1000P AU

0-761345-20211-4 NE1000P EC

0-761345-20212-1 NE1000P GB

0-761345-20213-8 NE1000P JP

0-761345-20214-5 NE1000P US

Warranty: 12 months

Part No.: NE1000P AU
